| 出力電圧: | dc 50kv max | 原産地: | 中国(本土) | 銘柄: | 宏源 | モデル番号: | HY-T150 | 入力電圧: | 220vacのか110vac +-20% | 出力電流: | dc 38mA max | 出力電力: | 100ワット- 150ワット | 応答速度: | <= 1ミリ秒 | 重量: | 4.6キログラム | 冷却: | 力のエアcoolling | 色: | 黒 | ノーマルタイプ: | l *ワット* h = 325*240*97 | 特別なタイプ: | l *ワット* h = 324*147*101 | その間故障間隔( mtbf): | ≥10000h | 認証: | ce/iso | oem: | はい | 起源の場所: | 山東、 中国(本土) |
包装
| 包装: | カートンボックス用電源用医療レーザー |

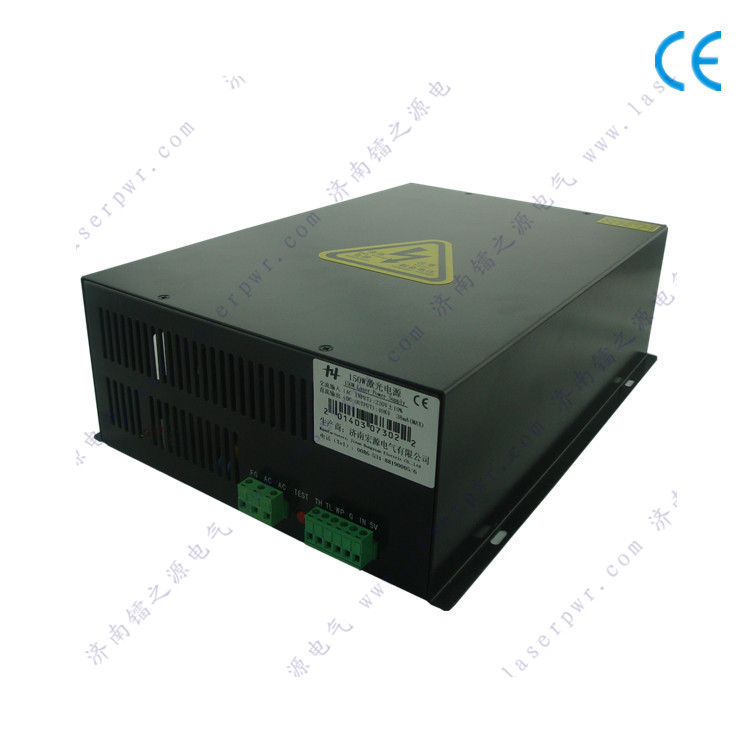

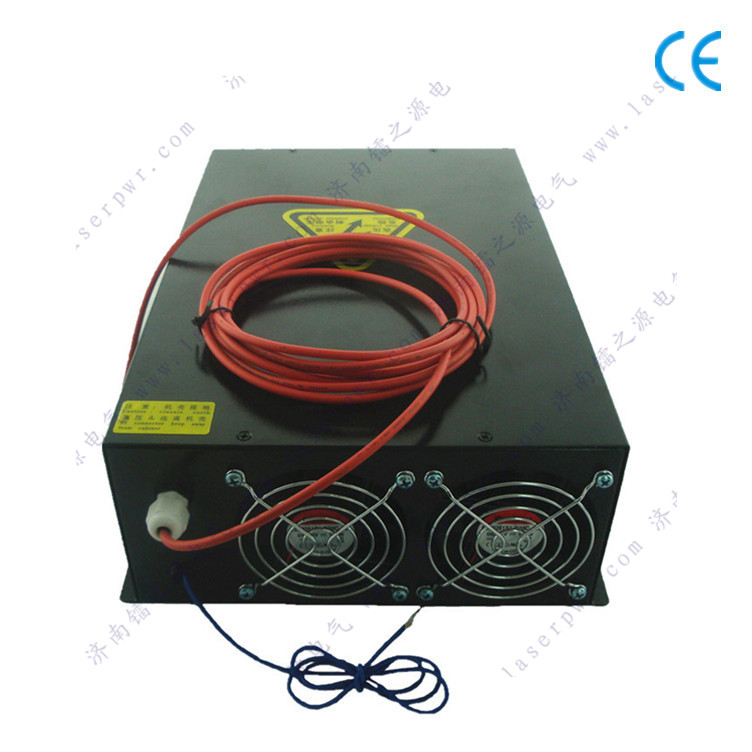

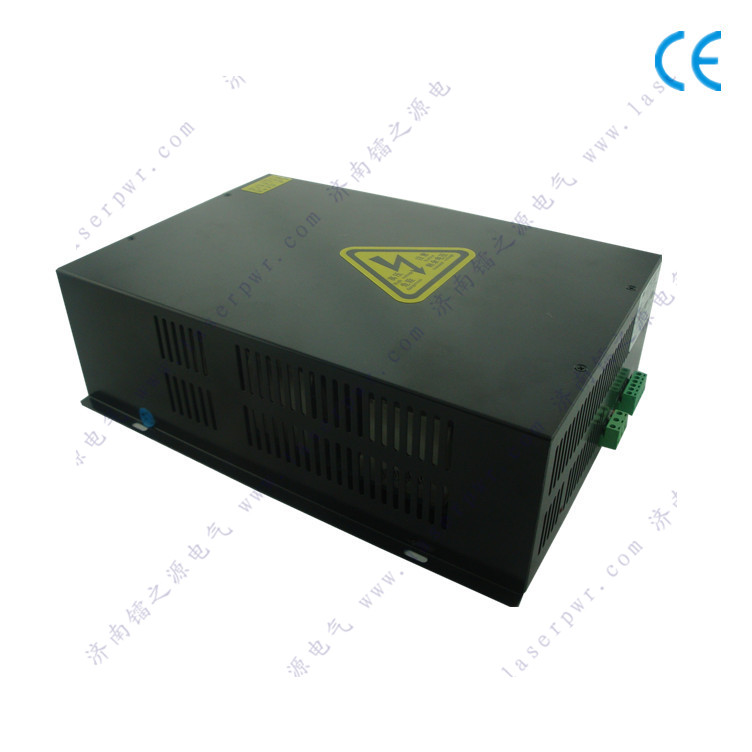

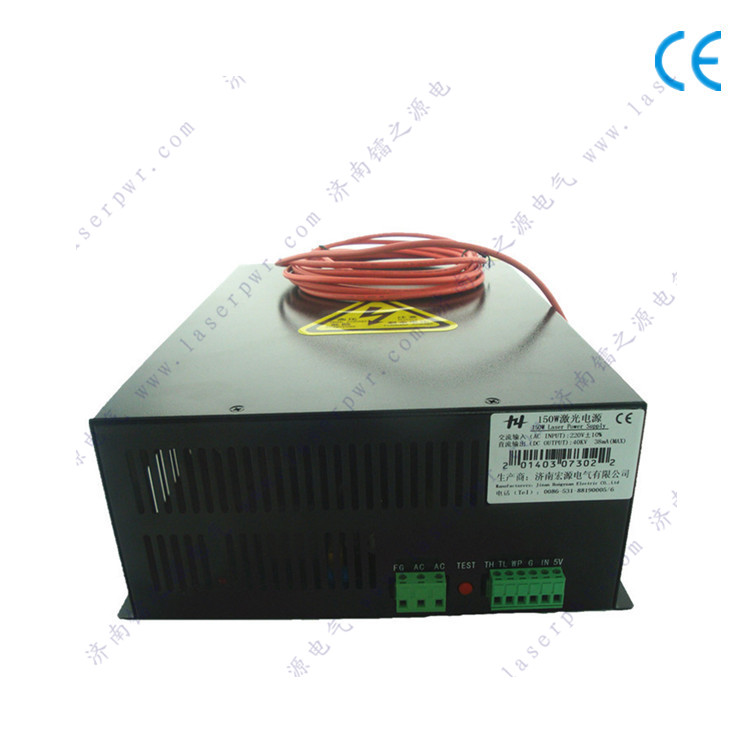

150W Power Supply for medical laser
1. Main Features:
1) High output voltage and current: when inputting AC220V and outputting current up to 38MA, the voltage can be up to 25KV.
2) Response time: ≤1Ms(from the time that switch Signal is given to the output current up to 90% of the setting current)
3) Increase the power of laser: Used with 2000mm laser, the peak of laser power can be up to 150W and the average power is 130W.
4) Dramatically lengthen the service life of laser.
5) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
6) Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
7) The power supply possesses open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
8) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
9) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
10) Application: thick acrylic cut, fabric cut, etc.
2. Specification:
Input | Input Voltage | AC220V or AC110V (to be specified when placing order) | |
AC frequency | 47—440HZ | ||
Cold Surge Current | ≤60A (AC220V Input) | ≤30A (AC110 Input) | |
Current Leakage | ≤0.7mA (AC220V Input) | ≤0.4mA (AC110V Input) | |
Output | Maximum Input Voltage | DC 50KV | |
Maximum Output Current | DC 38mA | ||
Efficiency | ≥90Percent (full load) | ||
Mean Time Between Failure (MTBF) | ≥10000H | ||
Response Speed | ≤1ms (from the switch Signal is given to the output current up to 90% of the setting current) | ||
Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10mA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short time (Require a good protective earthing and avoid arc between the positive and the machine shell) | ||
Environment | Operating Temperature: -10~40°C, Relative Humidity (RH)≤90Percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=325*240*95(mm) | ||
