| 出力電圧: | dc40kv最大 | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | Hvco2/1.8 | 入力電圧: | ac220vまたはac110v | 出力電流: | 最大32ミリアンペアdc | 出力電力: | 80w-120w | 色: | 黒 | サイズ: | 325x173x97 | 重量: | 4kg | ワーキング·ライフ: | 10000h分 | 保証: | 1年間 |

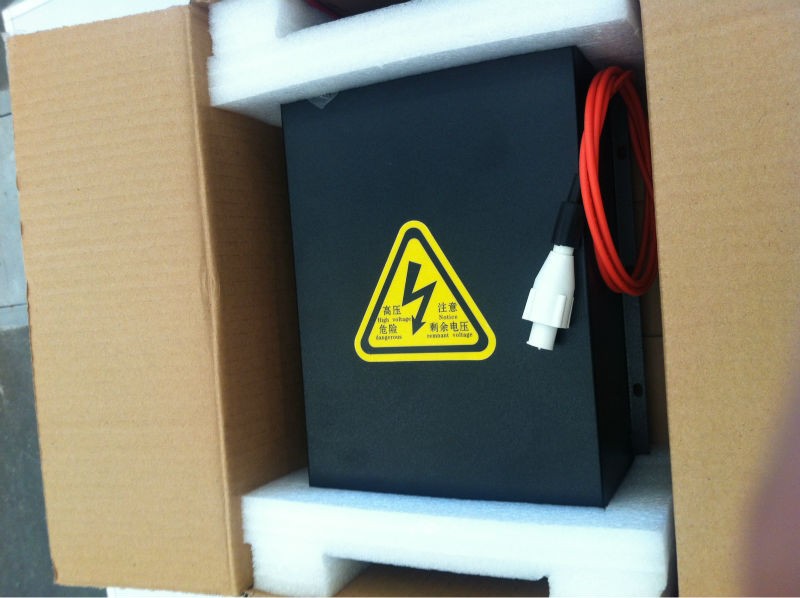

包装
| 包装: | 41*28*16.5( cm) を入れバブルにダンボール箱 |
100W CO2 Laser Power Supply use for any brand of laser tubes

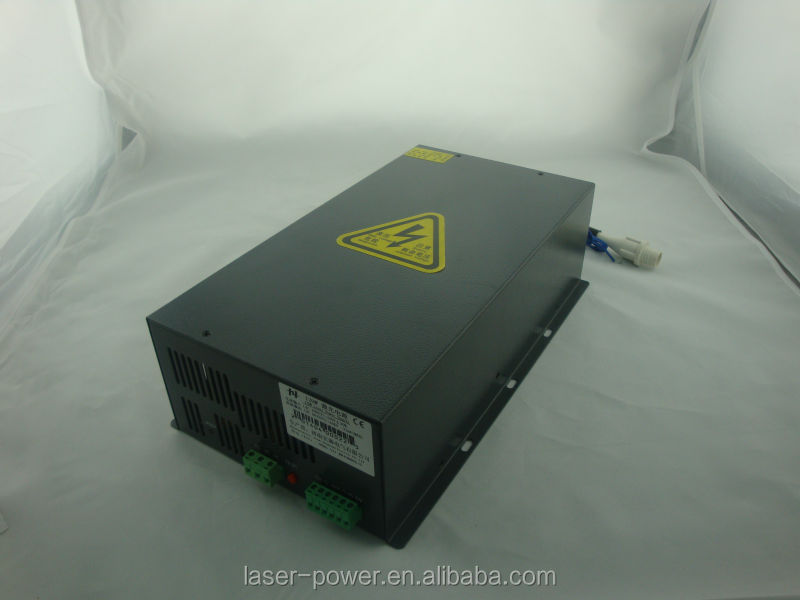

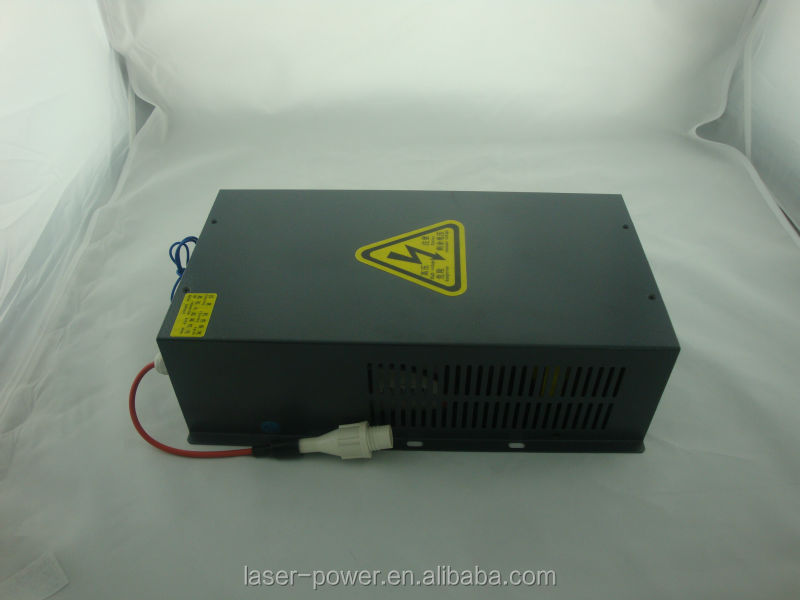

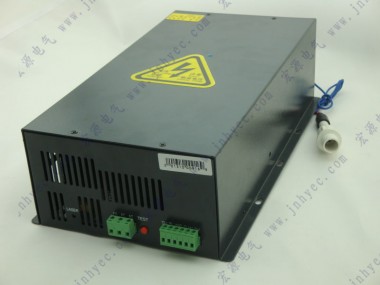

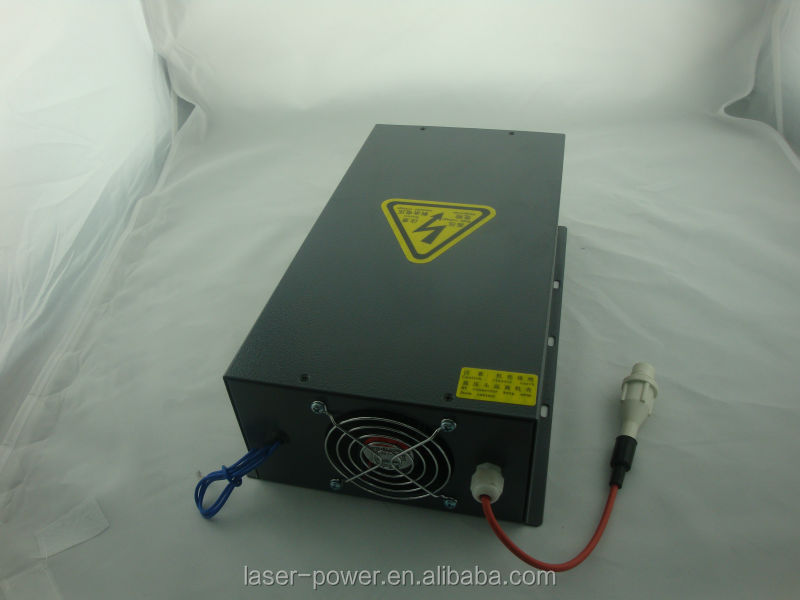

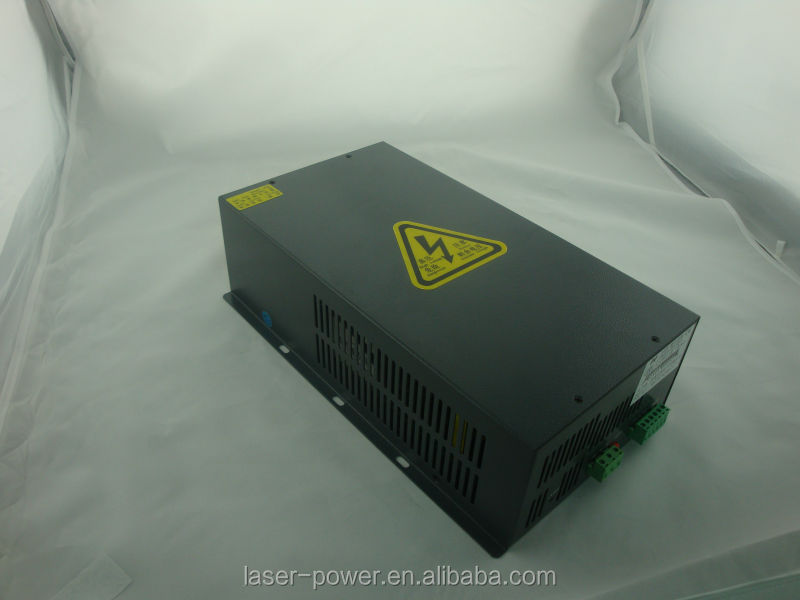

100W-120W CO2 Laser Power Supply Model: HY-HVCO2/1.8
Description:
Model: HY-HVCO2/1.8 for 80w,100w,120w Co2 Laser Tubes
Alias: Co2 Laser Generator, Co2 Laser Source,Co2 Laser Device,High Voltage Power Supply
Application:
HY-HVCO2/1.8 Laser Power Supply is used for 80W, 100W, 120W Cutting and Engraving Acrylic, Fabric,
Double Color Sheet and Rubber, etc
Main Features:
1. Very wide range of Input Voltage: AC160-AC260V (Against Input Voltage is 220V)
2. Current has high stability: in the range of Input AC160-AC260V, current change rate less than 1%.
3. Good compatibility: It can be applicable to 80W, 100W, 120W laser tubes manufactured by different factories.
4.High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 40KV.

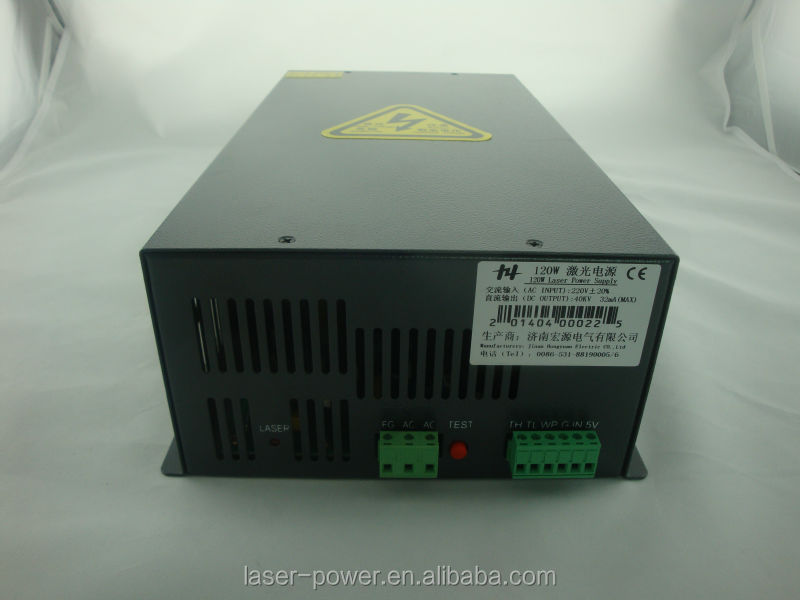

5. This Power Supply has the”TEST” button which can test output laser manually.
6. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube's service life.
Advantages:
1. Easy Control: The start and stop of laser can be easily controlled by TTL level. Both 0-5V analog signal and 5V PWM signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. This Laser power supply has TTL signal indication, water through signal indication and laser output indication.
Specification:
Input | Input voltage
| AC220V or AC110V(Please specify when placing order) |
AC Frequency | 47---440Hz | |
Max Input power | 650W
| |
Max Input current | 8A
| |
Output | Max Output current | DC 40KV
|
Max Output current | DC 35mA
| |
Efficiency | ≥90%(Full load) | |
MTBF | ≥10000 Hours | |
Response time | ≤1mS (Time from the TTL Signal is given to the output current up to 90% pre-setting current) | |
Withstand Voltage | Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure. | |
Weight | 4KG | |
Environment | Operating temperature: (-10-40)°C,Relative humidity: ≤90% | |
Cooling | Force-Air Cooling (FAC) | |
Dimension | L×W×H*280*173*97 (mm) | |
Colour | Black | |
For more detail information of our laser power supply or if you need any help, please contact us freely, we will try our best help you.
Our contact details are:
TEL: 0086-531 88190005 Fax: 00860531 88190006
Web: www.jnhyec.com/en/ or http://laser-power.en.alibaba.com
Add: Advanced Business Center, No.15 Lanxiang Road, Jinan250032, Shandong, China
Skype online: laserpwr
