| 出力電圧: | マックスDC35KV | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2/1.2 | 入力電圧: | ac220vまたはac110v | 出力電流: | 3a | 出力電力: | 60ワット | 色: | 黄色または黒 | 重量: | 2.2kgs | 1ピース/箱パッケージ: | 27*21*14.5センチ/ボックス | 8ピース/箱パッケージ: | 53*43*36センチ/ボックス |
包装
| 包装: | 41*28*17カートン |

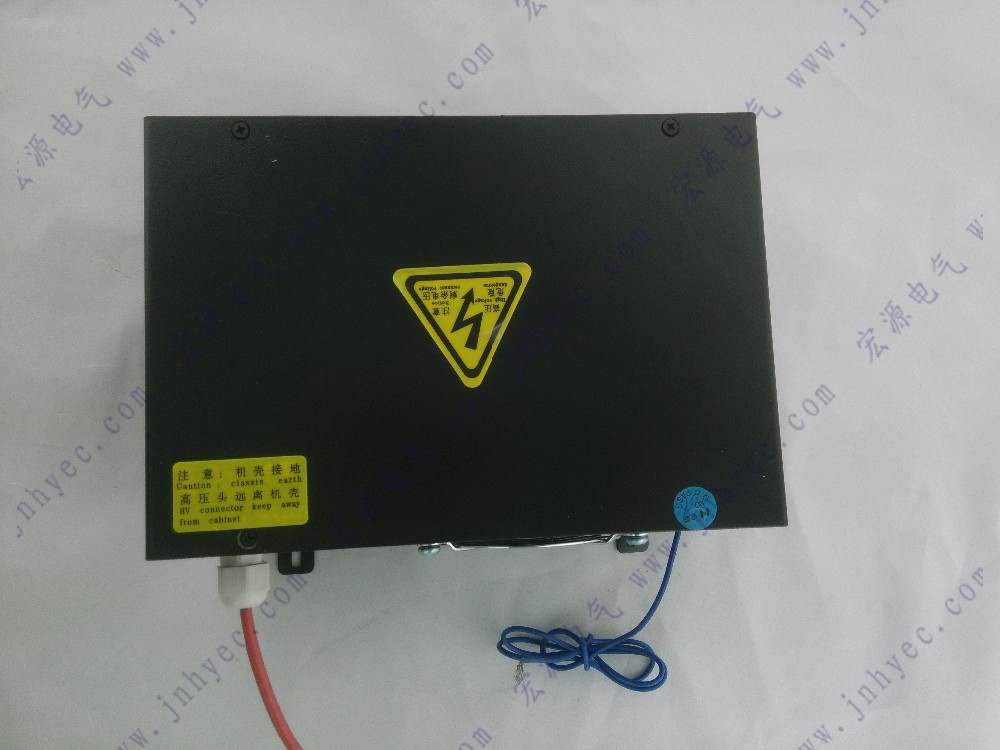

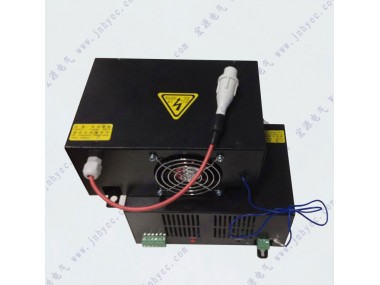

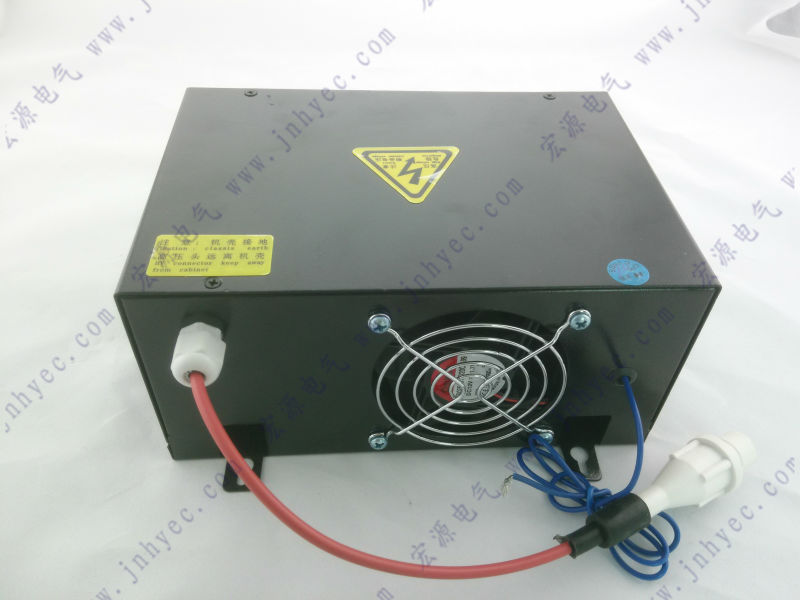

Good quality 60W CO2 power supply for engraving machine

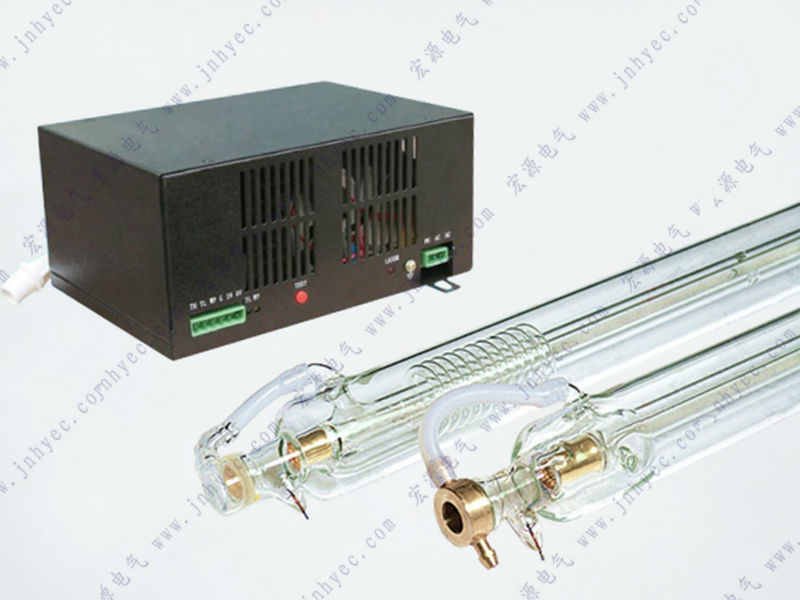

Model: HY-HVCO2/1.2 for 60W co2 laser tubes from different tube factories
Other Model: HY-HVCO2/0.8 for 40W co2 laser tubes
HY-HVCO2/1.6 for 80W co2 laser tubes
HY-HVCO2/1.8 for 100W co2 laser tubes
HY-HVCO2/2.0 for 150W co2 laser tubes
We are factory specialized in all kinds of laser power supply found in 2001, with more than 12 years experience in this field , our products are popularly selling all over the world. Below are features of our products:
1. 60w Laser Tube Generator Main Features:
1, Good compatibility: It can be applicable to normal 40W, 50W and 60W laser tubes from differents factories.
2, Cutting type or Sculpting type for choise, both can prolong laser tube's service life.
The Cutting type: good stability and strong adaptability.
The Sculpting type: quick response speed,good engraving effect.
3, Easy Control: The start and stop of laser can be easily controlled by TTL level.
4, Output open circuit protection.
5, Test output laser manually controlled by one BUTTON only.

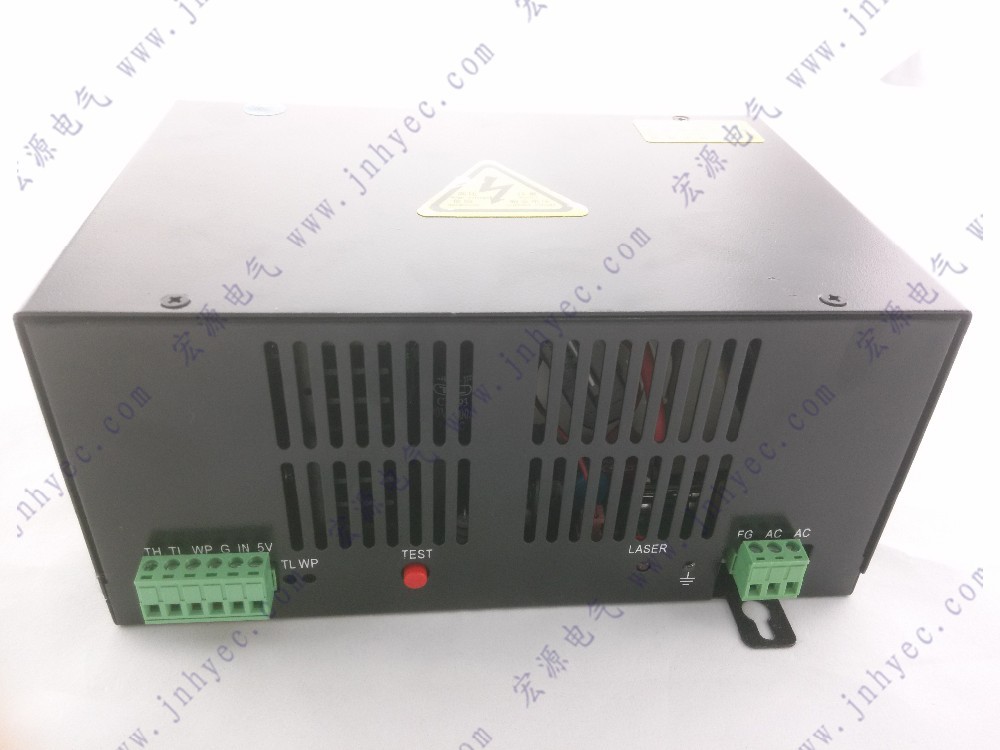

6, This power supply has TTL signal indication, water through signal indication and laser output indication.
7, Application: acrylic sculpture, cut; fabric sculpture, cut; rubber sheet sculpture, cut, etc.
2. 60w Laser Cutting Machine Genrator Main Specification
Input | Input Voltage | AC220V or AC110V(to be specified when placing order) | |
AC frequency | 47—440HZ | ||
Max input power | 450W | ||
Max input current | 3A | ||
Output | Maximum Input Voltage | DC 35KV | |
Maximum Output Current | DC 24mA | ||
Efficiency | ≥90 percent (full load) | ||
Mean Time Between Failure (MTBF) | ≥10000H | ||
Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current)
| ||

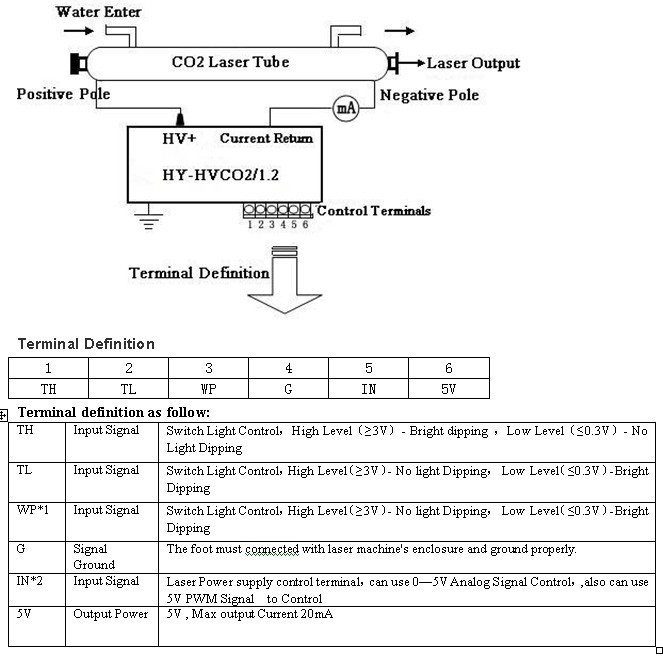

Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification)
| ||
Withstand Voltage | Input-Output, Input-Shell AC1500V 10mA 60S; Output negative is connected with machine shell.
| ||
Net weight | 2.2kgs | ||
Environment | Operating Temperature(-10~40°C), Relative Humidity (RH)≤90 percent
| ||
Cooling Way | Force-Air Cooling (FAC)
| ||
Dimension | L×W×H=207*144*97(mm)
| ||
5, For more detail information of our laser power supply or if you need any help, please contact us freely, we will try our best help you.
Our contact details are:
TEL: 0086-531 88190005 Fax: 00860531 88190006
Web: www.jnhyec.com/en/ or http://laserpsu.com
Add: Advanced Business Center, No.15 Lanxiang Road, Jinan250032, Shandong, China
Skype online: laserpwr
We can customized laser power supply according your requirment. Actually, about 50% of our laser power are specially customized for laser machine factory. If you have any urgent needs, please contact us freely.
