| 出力電圧: | 12ボルト | 出力頻度: | 47〜63 ｈｚ | 原産地: | 中国(本土) | 銘柄: | gofern | モデル番号: | GF60-9H-DM | 入力電圧: | 110ボルトの220ボルト | 出力電流: | 5a | 出力電力: | 60ワット | 製品タイプ: | 9ch cctvの電源ボックス | 電源ディメンション: | l235 * w205 * h50mm | 重量: | 1.56キログラム/ピース | パッケージの詳細: | 10ピース/カートンサイズ: 45*32*30ミリメートル | シェル素材: | スチールでスプレーラッカー | 安全コンプライアンス: | emc & lvd | 証明書: | ce、 rohs | 保証: | 2年 | 安全ヒューズ: | ptcヒューズ |
包装
| 包装: | 輸出標準ブランクカートンと白ハード紙箱 |

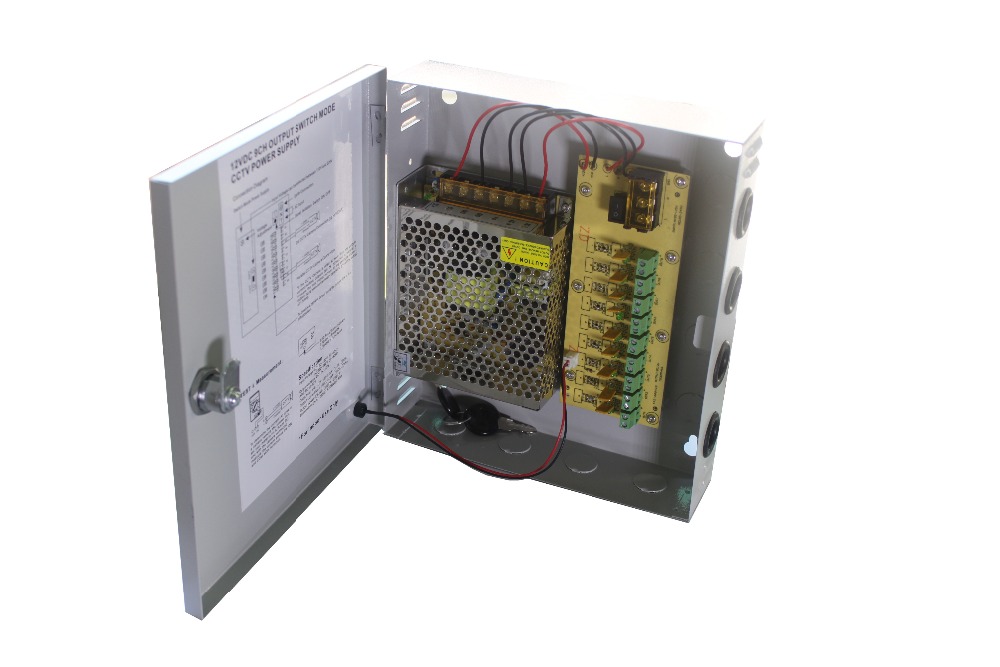

12v 5a CCTV camera power supply box 9ch eu
Product Description
Features:
1.Low power consumption, high reliability2.Protections: Short circuit/Over load/Over voltage
3.Cooling by free air convection
4.100% full loading burn-in test5.2 years warranty
| MODEL | GF60-9H-DM | |||||
| OUTPUT | DC VOLTAGE | 12V | ||||
| OUTPUT POWER | 60W | |||||
| CURRENT RANGE | 0-0.5Amp(Each channel) , Total 0-5Amp for 9 channels | |||||
| RIPPLE & NOISE(max.) | 120mVp-p | |||||
| VOLTAGE ADJ. RANGE | ±10% | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±2.0% | |||||
| VOLTAGE TOLERANCE | ±2.0% | |||||
| SETUP,RISE TIME | 800ms, 50ms at full load | |||||
| HOLD UP TIME | 60ms | |||||
| INPUT | VOLTAGE RANGE | 86VAC - 264V AC | ||||
| AC CURRENT(Typ.) | 3.5A/ 226VAC 1.8A/ 240VAC | |||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 85% | |||||
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |||||
| LEAKAGE CURRENT | <2.0mA/240VAC | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down | ||||
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion | |||||
| Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -0 ~ +45 (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20 ~ +85 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/ | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
| SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||||
| EMI CONDUCTION | Compliance to EN55022 | |||||
| HARMonIC CURRENT | Compliance to EN61000-3-2,-3 | |||||
| EMS IMMUNITY | Compliance to EN55024 | |||||
| OTHERS | ConNECTION TERMINAL | MARK: AC-L, AC-N, FG, GND, GND, DC+, DC- | ||||
| POWER SUPPLY DIMENSION | L130*W98*H38MM or L111*W78*H36MM | |||||
| 9CH BOX DIMENSION | L235*W205*H50MM | |||||
| WEIGHT | 1.56Kg/PC, 10PCS/Carton size:45*32*30MM | |||||
| POWER SUPPLY MATERIAL | Chassis:1.5mm thickness aluminium;Cover:0.7mm thickness iron(silver plating) | |||||
| 9CH BOX MATERIAL | 1.5mm tchickness iron (grey plating) | |||||
