| 出力電圧: | dc 50kv | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2/2.0-gsi | 入力電圧: | ac220vまたはac110v | 出力電流: | dc 38MA | 保証: | 一年 | ワーキングライフ: | 10000 h最小 | 色: | 黒 | パッキング: | 3ピース/カートン |
包装

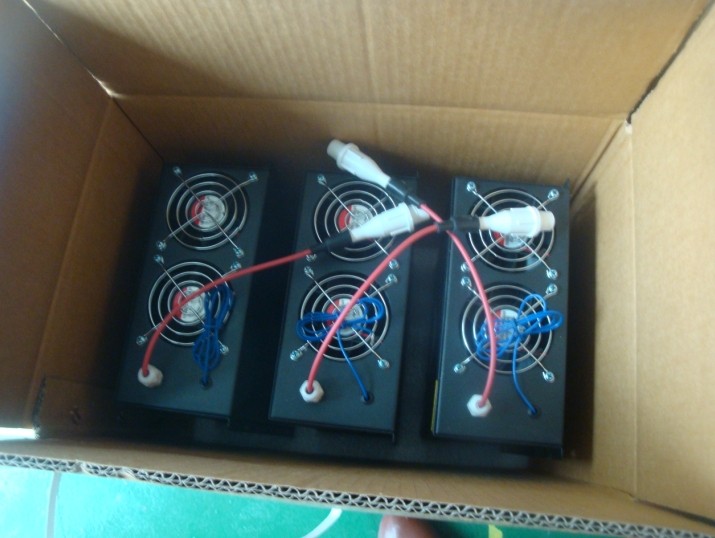

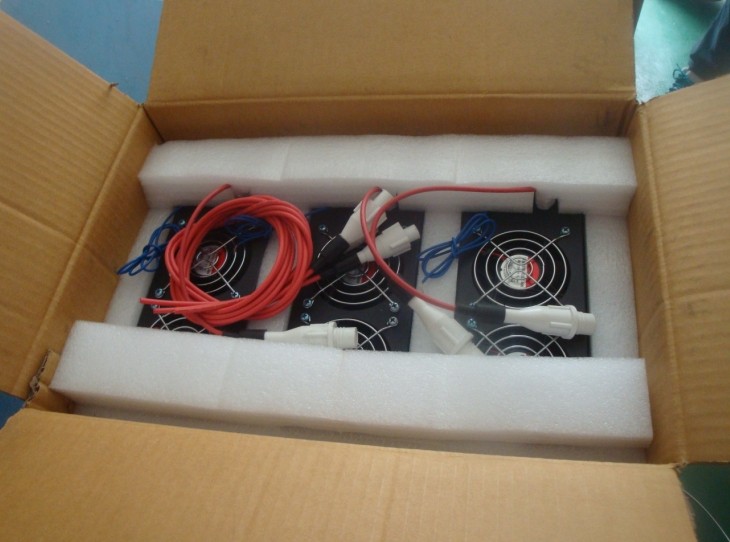

| 包装: | 木製ケース または標準カートン ボックス |

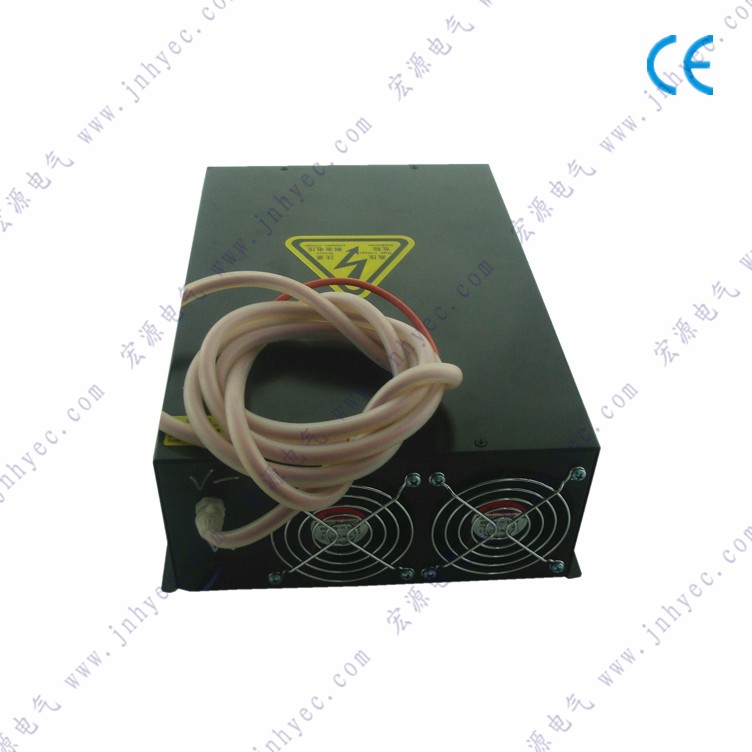

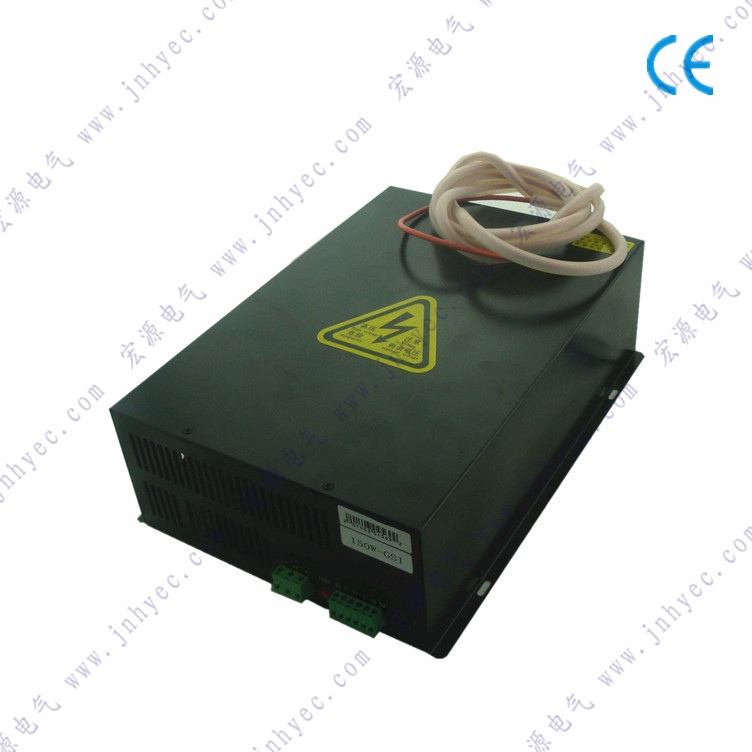

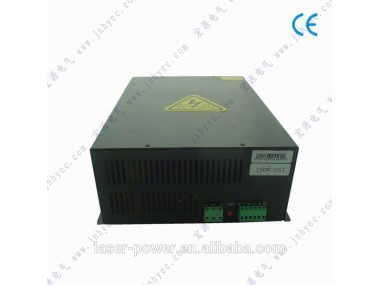

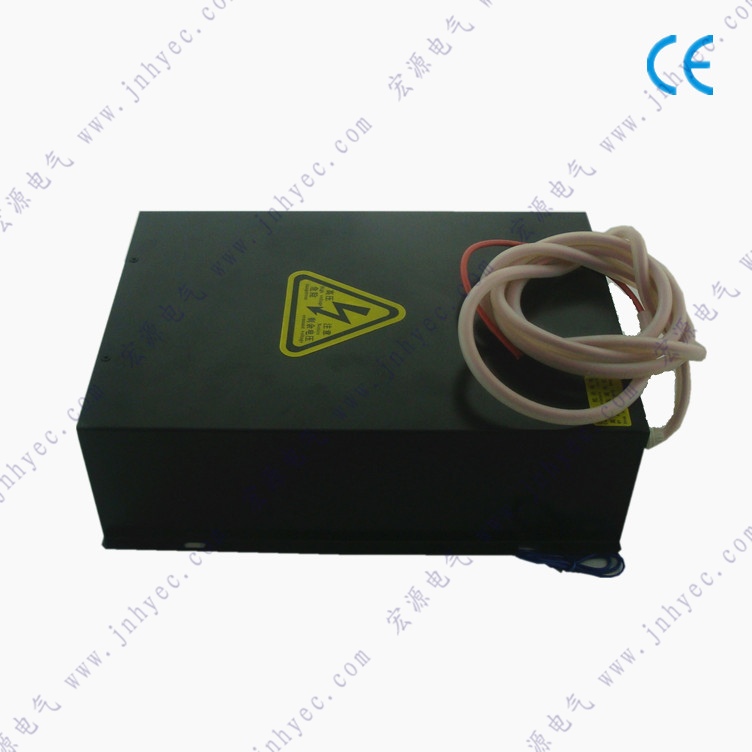

150W Laser Power Supply for GSI Laser Tubes
Model: HY-HVCO2/2.0-GSI
Description:
Model: HY-HVCO2/2.0-GSI for 100w,140w,200w,280w GSI Co2 Laser Tubes
Alias: Co2 Laser Generator,Co2 Laser Source,Co2 Laser Device,,High Voltage Power Supply
Application:
HY-HVCO2/2.0-GSI Laser Power Supply is used for 100w,140w,200w,280w GSI Laser Tube Cutting and Engraving acrylic, fabric, double color sheet and rubber,metal,etc
Main Features:
1. HY-HVCO2/2.0-GSI ancillary use with GSI 300w Co2 Laser tubes.Connecting one set(two pcs) of 150w GSI laser power supply respectively to the two opposite ends of the GSI 300w laser tube.Each laser power supply power 150 w.
2. High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 50KV.
3. Fast response: (the time from the switching signal is given to the output current up to 90% ): ≤1mS.
4. Increase the laser power: matching GSI laser tube, can make the laser peak power up to 150 w, average power to 140 w.
5. Open circuit protection Function: when the earth connection is under good situation,Power can be short time work in open state, it Can avoid the laser tube burst damage caused by laser power supply, prolong the GSI laser tube's service life.
Advantages:
1. Easy Control: High level or low level all suitable to Control.
2. Laser power control is simple: either 0 ~ 5 v analog signals or PWM control signal can control the laser power.
3. The power has feedback interface, can be used for closed-loop control, also can be used for testing the laser tube working current.
4. It can quickly judge laser tube is damaged or laser power supply is damaged at the scene, greatly facilitate the on-site maintenance.
Specification
Input | Input Voltage | AC220V or AC110V(to be specified when placing order) | |
| AC frequency | 47—440HZ | |
| Cold Surge Current | ≤60A(AC220V Input) | ≤30A(AC110 Input) |
| Current Leakage | ≤0.7MA(AC220V Input) | ≤0.4MA(AC110V Input) |
Output | Max Output Voltage | DC 50KV | |
| Max Output Current | DC 38MA | |
Efficiency | ≥90 percent (full load) | ||
MeanTime Between Failure (MTBF) | ≥10000H | ||
Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90 percent of the setting current) | ||

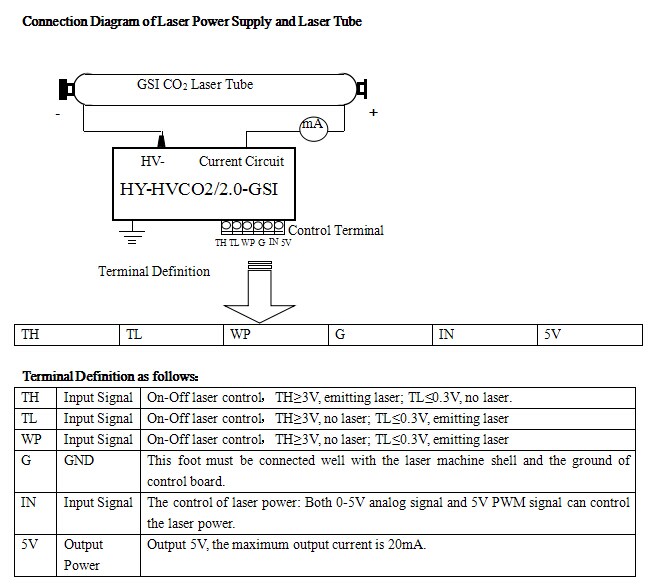

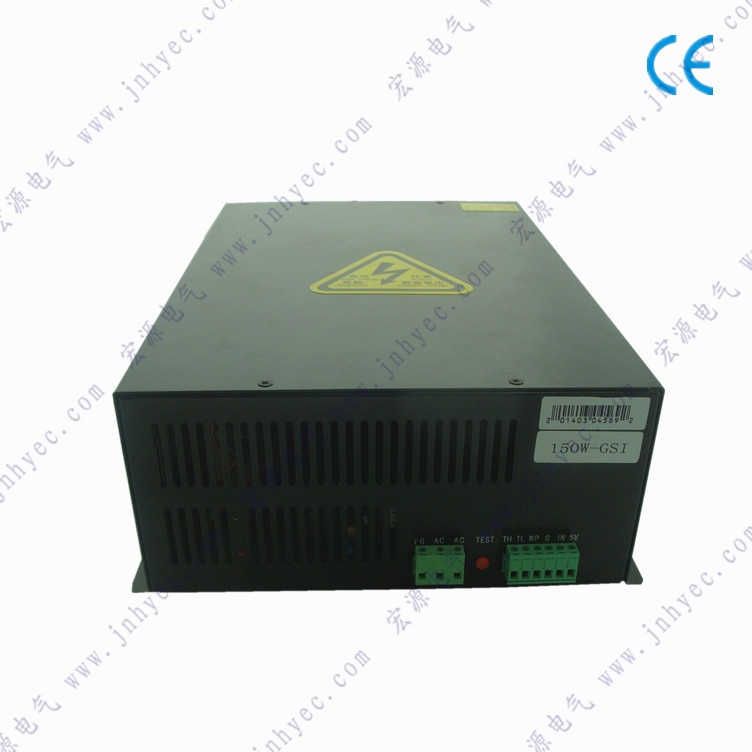

Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell) | ||
Environment | Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=325*240*97(mm)(normal type) | ||
Color | Black | ||
6, For more detail information of our laser power supply or if you need any help, please contact us freely, we will try our best help you.
Our contact details are:
TEL: 0086-531 88190005 Fax: 00860531 88190006
Web: www.jnhyec.com/en/ or http://laser-power.en.alibaba.com
Add: Advanced Business Center, No.15 Lanxiang Road, Jinan250032, Shandong, China
Skype online: laserpwr
We can customized laser power supply according your requirment. Actually, about 50% of our laser power are specially customized for laser machine factory. If you have any urgent needs, please contact us freely.
