| 出力電圧: | dc 40 kv | 出力頻度: | 47-440 ｈｚ | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2/1.8 | 入力電圧: | 交流220 ボルト または交流110 ボルト | 出力電流: | dc 32mA | 出力電力: | 100 ワット-120 ワット | 色: | 黒 | 効率: | beyong 90 パーセント |
包装
| 包装: | 41*28*17 センチ に カートン |
Hongyuna Power Supply for Laser Engraver 100W,120W
Model:HY-HVCO2/1.8
1.HY-HVCO2/1.8 Power Supply Advange:
HY-HVCO2/1.8 Power Supply has Function of voltage stabilizing ,when the Input voltage is between AC160V - AC260V,the current change rate less than 1%.If your voltage is not stable, HY-HVCO2/1.8 is your best choise.It can be widely used for 80w,100w,120w laser cutting machines.
2. Main Features:
1.Good compatibility: It can be applicable to 60W,80W or 100W laser tube manufactured by various factories.
2.Cutting type or Sculpting type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect. It can prolong laser tube’s service life.
3.Easy Control: The start and stop of laser can be easily controlled by TTL level.
4.The power supply has output open circuit protection.
5.This power supply has TTL signal indication, water Through signal indication and laser output indication.
6.This power supply has the BUTTON to test it work properly
7.Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.
3.Specification:
Input | Input Voltage | AC220V or AC110V(to be specified when placing order) | |
AC frequency | 47—440HZ | ||
Cold Surge Current | 60A(AC220V Input) | 30A(AC110 Input) | |
Current Leakage | 0.7mA(AC220V Input) | 0.4mA(AC110V Input) | |
Output | Maximum Input Voltage | DC 40KV | |
Maximum Output Current | DC 35mA | ||
Efficiency | 90 percent (full load) | ||
Mean Time Between Failure (MTBF) | 10000H | ||
Response Speed | 1ms(from the switch Signal is given to the output current up to 90 percent of the setting current) | ||
Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell AC1500V 10mA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell) | ||
Environment | Operating Temperature-10~40°C,Relative Humidity (RH)90 percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=325*173*97(mm) | ||
Color | Black | ||

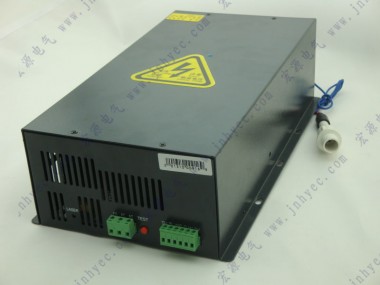

4. 100w,120w Co2 Laser Power Supply Pictures
8, For more detail information of our laser power supply or if you need any help, please contact us freely, we will try our best help you.
Our contact details are:
TEL: 0086-531 88190005 Fax: 00860531 88190006
Web: www.jnhyec.com/en/ or http://laser-power.en.alibaba.com
Add: Advanced Business Center, No.15 Lanxiang Road, Jinan250032, Shandong, China
Skype online: laserpwr
We can customized laser power supply according your requirment. Actually, about 50% of our laser power are specially customized for laser machine factory. If you have any urgent needs, please contact us freely.
FOR ALL OF OUR CLIENTS
NOTICE: There are many new brand name of similar item in the market recently, although their price are really cheap, but the quality of their products are also terrible:
1. All our item is pass the ISO9001 quality certification
2. You can purchase a high quality and safety machine, but please don't waste the money for a cheaper but a low quality machines. We only sell top-quality item. base on the top-quality, then we will beat our price as lowest on Alibaba.
3. We are the manufactor of the Laser Power Supply, and have atrict quality control system,so that we can supply the best quality products with lowest prices for our client.
Warranty
12 months.
Technical Support
We have a professinal technical support group for all the item selling. If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.
