| 出力電圧: | マックスDC35KV | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2-DB9 | 入力電圧: | ac220vまたはac110v | 出力電流: | 5a | 出力電力: | 80ワット | 色: | 黄色または黒 | 重量: | 2.95kgs | 1ピース/箱パッケージ: | 34.5*24*16.5センチ/ボックス | 2ピース/箱パッケージ: | 35.5*25*32センチ/ボックス |
包装
| 包装: | 41*28*17カートン |

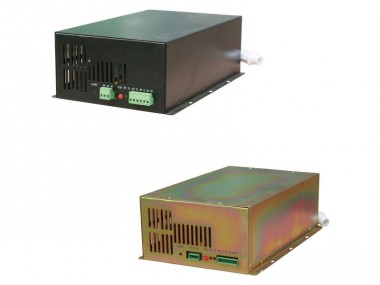

80W laser power generator
Model: HY-HVCO2/1.6 for 60W co2 laser tubes from different tube factories
Other Model: HY-HVCO2/0.8 for 40W co2 laser tubes
HY-HVCO2/1.2 for 60W co2 laser tubes
HY-HVCO2/1.8 for 100W co2 laser tubes
HY-HVCO2/2.0 for 150W co2 laser tubes
We are factory specialized in all kinds of laser power supply found in 2001, with more than 12 years experience in this field , our products are popularly selling all over the world. Below are features of our products:
Main Features:
1).Good compatibility: It can be applicable to 80W laser tubes manufactured by various factories.
2).Cutting type or Sculpting type: The cutting type has a good power stability and strong adaptability;
while the sculpting type has a quick response speed and good engraving effect. It can prolong laser tube’s service life.
3).Easy Control: The start and stop of laser can be easily controlled by TTL level.
4).The power supply has output open circuit protection.
5).This power supply has TTL signal indication, water Through signal indication and laser output indication.
6).This power supply has the BUTTON to test if it works properly.
7). Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, and any other non-metal materials.
2.Terminal definition
TH | Input Signal | The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
TL | Input Signal | The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
WP*1 | Input Signal | The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
G | GND | This foot must be connected well with the shell of laser machine and the ground of control board. |
IN*2 | Input Signal | The control of laser power: Both 0-5V analog signal and PWM signal can control the laser power. |
5V | Output Power | Output 5V, the maximum output current is 20mA. |
2. Main Specification
Input | Input Voltage | AC220V or AC110V(Please specify when placing order) |
AC frequency | 47—440HZ | |
Max Input Power | 550W | |
Max Input Current | 5A | |
Output | Maximum Input Voltage | DC 40KV |
Maximum Output Current | DC 28mA | |
Efficiency | ≥90%(Full Load) | |
Mean Time Between Failure (MTBF) | ≥10000H | |
Response Speed | ≤1ms(From the switch Signal is given to the output current up to 90% of the setting current) | |
Withstand Voltage | Input-Output, Input-Enclosure: AC1500V 10mA 60S; Output (negative pole) is connected with machine Enclosure. | |
Net Weight | 2.5kg | |
Environment | Working Temperature:(-10~40°C),Relative Humidity (RH)≤90% | |
Cooling Way | Force-Air Cooling (FAC) | |
Dimension | L×W×H=280*173*97(mm) | |
Color | Golden Yellow / Black | |
3, Other models for choise:
