| 出力電圧: | dc 40 kv | 出力頻度: | 47-440 ｈｚ | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2/1.8 | 入力電圧: | 交流220 ボルト または交流110 ボルト | 出力電流: | dc 35ma | 出力電力: | 50-100 ワット | 色: | 黒 | 効率: | beyong 90 パーセント |
包装
| 包装: | 41*28*17 センチ に カートン |

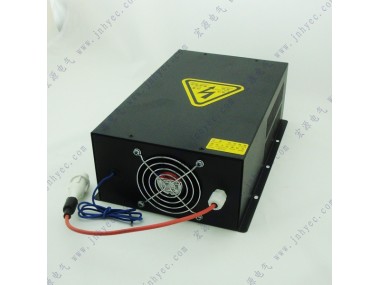

100Watts-120watts High Voltage Co2 Laser Power Supply
Description:

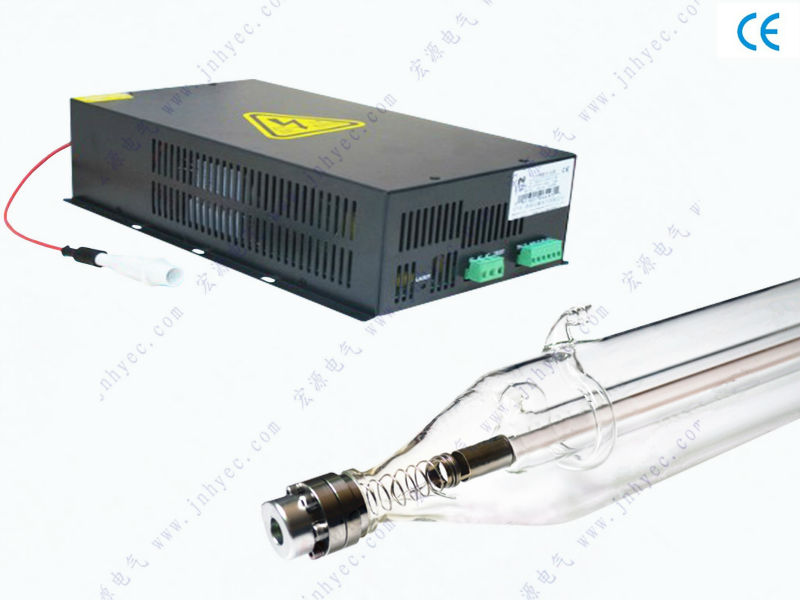

Model: HY-HVCO2/1.8 for 80w,100w,120w Co2 Laser Tubes
Alias: Co2 Laser Generator, Co2 Laser Source,Co2 Laser Device,High Voltage Power Supply
Application:
HY-HVCO2/1.8 Laser Power Supply is used for 80W, 100W, 120W Cutting and Engraving Acrylic,
Fabric, Double Color Sheet and Rubber, etc
Main Features:
1. Very wide range of Input Voltage: AC160-AC260V (Against Input Voltage is 220V)
2. Current has high stability: in the range of Input AC160-AC260V, current change rate less than 1%.
3. Good compatibility: It can be applicable to 80W, 100W, 120W laser tubes manufactured by different factories.
4.High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 40KV.
5. This Power Supply has the”TEST” button which can test output laser manually.
6. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube's service life.
Advantages:
1. Easy Control: The start and stop of laser can be easily controlled by TTL level. Both
0-5V analog signal and 5V PWM signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. HY-HVCO2/1.8 Power Supply has Function of voltage stabilizing ,when the Input voltage is between AC160V - AC260V,the current change rate less than 1%.If your voltage is not stable, HY-HVCO2/1.8 is your best choise.It can be widely used for 80w,100w,120w laser cutting machines.
HY-HVCO2/1.8 Power Supply Specifications
Input | Input Voltage | AC220V or AC110V(to be specified when placing order) | |
AC frequency | 47—440HZ | ||
Cold Surge Current | 60A(AC220V Input) | 30A(AC110 Input) | |
Current Leakage | 0.7mA(AC220V Input) | 0.4mA(AC110V Input) | |
Output | Maximum Input Voltage | DC 40KV | |
Maximum Output Current | DC 35mA | ||
Efficiency | 90 percent (full load) | ||
Mean Time Between Failure (MTBF) | 10000H | ||
Response Speed | 1ms(from the switch Signal is given to the output current up to 90 percent of the setting current) | ||

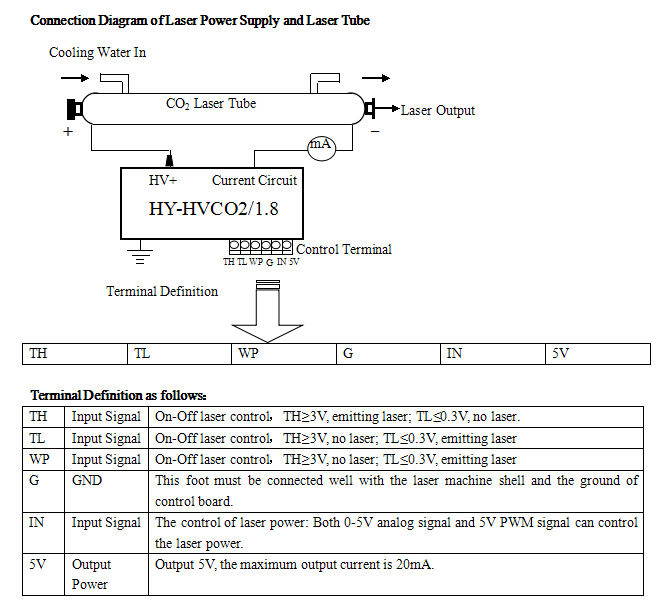

Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell AC1500V 10mA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell) | ||
Environment | Operating Temperature-10~40°C,Relative Humidity (RH)90 percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=325*173*97(mm) | ||
Color | Black | ||
6, For more detail information of our laser power supply or if you need any help, please contact us freely, we will try our best help you.
