| 出力電圧: | DC40KV | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2/2.0 | 入力電圧: | ac220またはac110 | 出力電流: | DC35mA | 出力電力: | 100ワット | パッケージ1: | 42*29*19センチ/ボックス、 1ピース/箱 | Package2: | 43*29*43センチ/ボックス、 3ピース/箱 | 正味重量: | 5.0kgs | 保証: | 一年 | 色: | 黒 |
包装
| 包装: | カートンボックス |
Special Manufactor of 80w,100w,130w,150w LASER POWER SUPPLY -Manufacturer
Model: HY-HVCO2/2.0 for 130W,150w co2 laser tubes from different tube factories
Other Model: HY-HVCO2/0.8 for 40W co2 laser tubes
HY-HVCO2/1.2 for 60w co2 laser tubes
HY-HVCO2/1.6 for 80W co2 laser tubes
HY-HVCO2/1.8 for 100W,120W co2 laser tubes
HY-HVCO2/2.0 for 130W,150W co2 laser tubes
We are factory specialized in all kinds of laser power supply found in 2001, with more than 12 years experience in this field , our products are popularly selling all over the world. Below are features of our products:
1.Main Features:
1).Good compatibility: It can be applicable to 100w,130w,150w laser tubes manufactured by various factories.
2).Cutting type or Sculpting type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect. It can prolong laser tube’s service life.
3).Easy Control: The start and stop of laser can be easily controlled by TTL level.
4).The power supply has output open circuit protection.
5).This power supply has TTL signal indication, water Through signal indication and laser output indication.
6).This power supply has the BUTTON to test if it works proper
7). Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, and any other non-metal materials.
2. Main Specification
Input | Input Voltage | AC220V or AC110V(Please specify when placing order) |
AC frequency | 47—440HZ | |
Max Input Power | 1000W | |
Max Input Current | 10A | |
Output | Maximum Input Voltage | DC 50KV |
Maximum Output Current | DC 38mA | |
Efficiency
| ≥90%(Full Load) | |
Mean Time Between Failure (MTBF) | ≥10000H | |
Response Speed
| ≤1ms(From the switch Signal is given to the output current up to 90% of the setting current) | |
Withstand Voltage
| Input-Output, Input-Enclosure: AC1500V 10mA 60S; Output (negative pole) is connected with machine Enclosure. | |
Net Weight | 5kg | |
Environment
| Working Temperature:(-10~40°C),Relative Humidity (RH)≤90% | |
Cooling Way | Force-Air Cooling (FAC) | |
Dimension | L×W×H=324*147*101(mm) | |
Color | Black | |

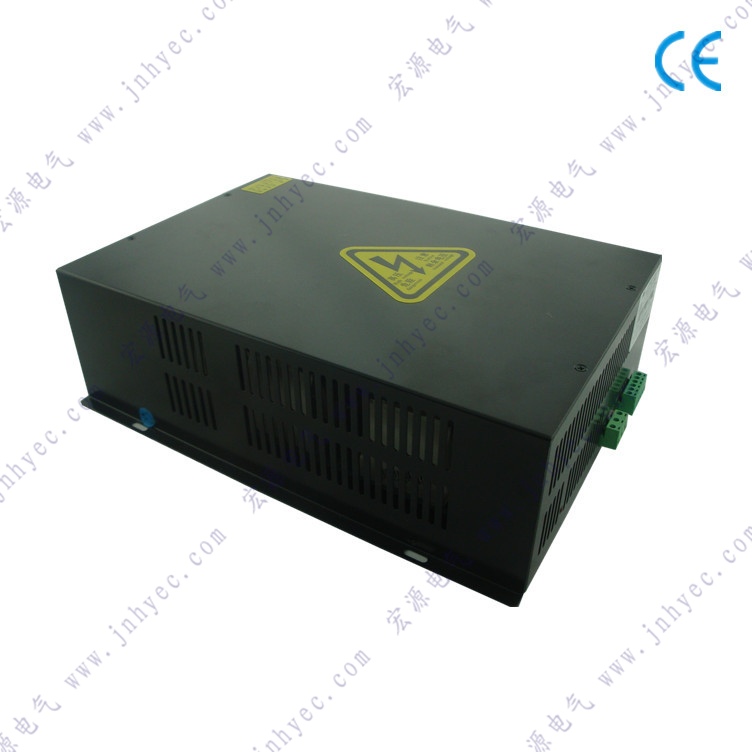

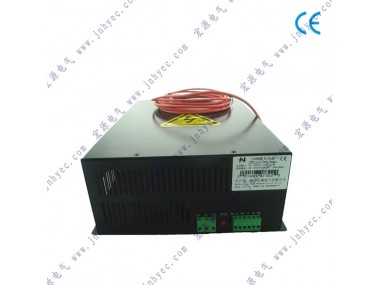

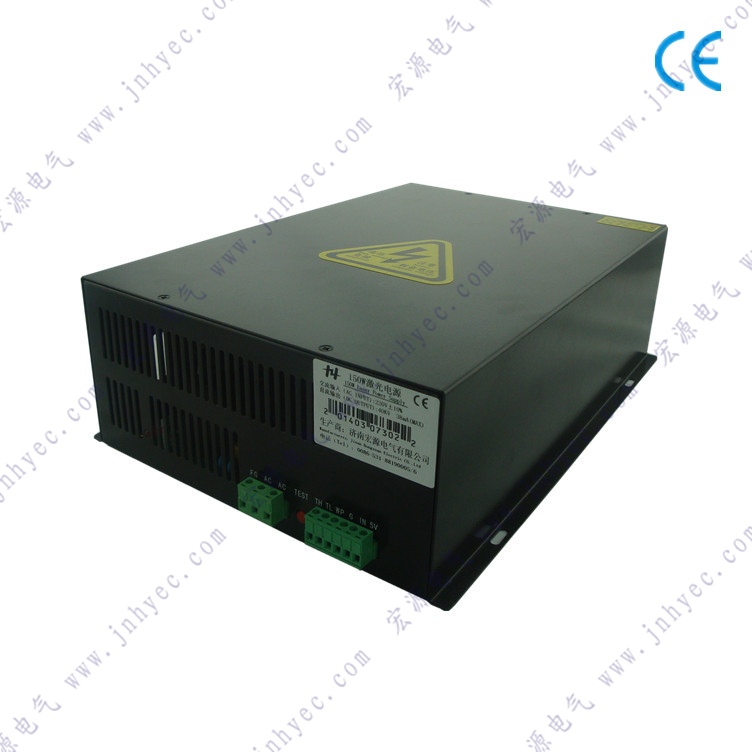

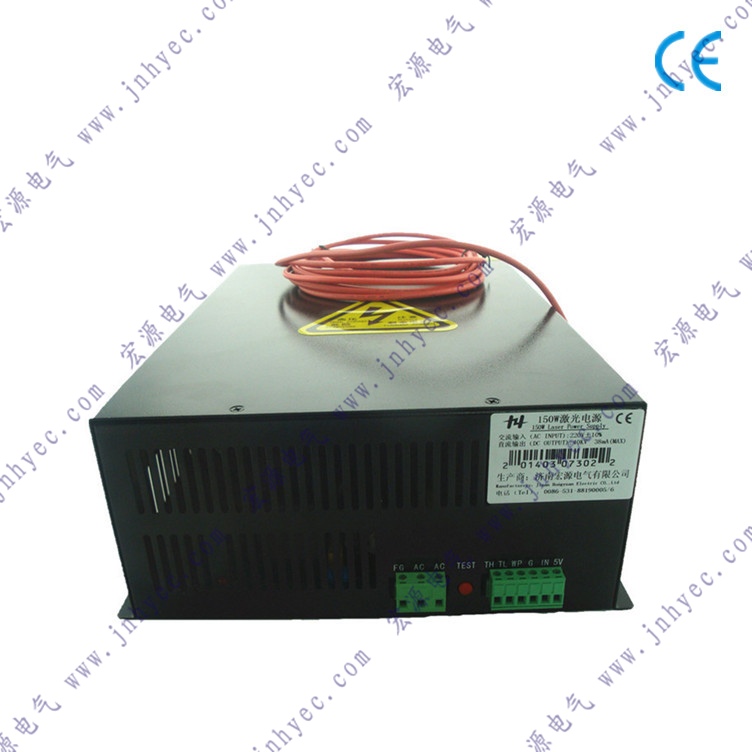

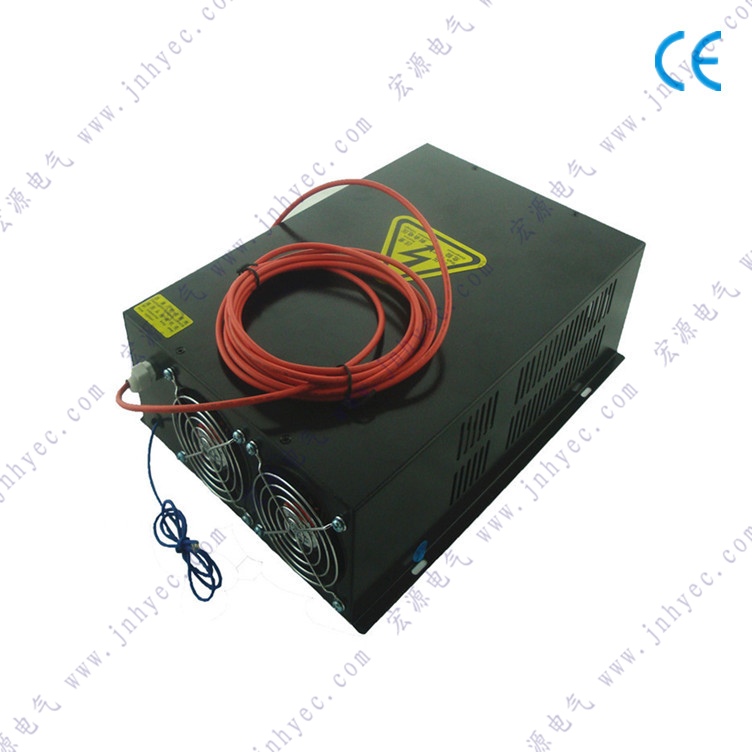

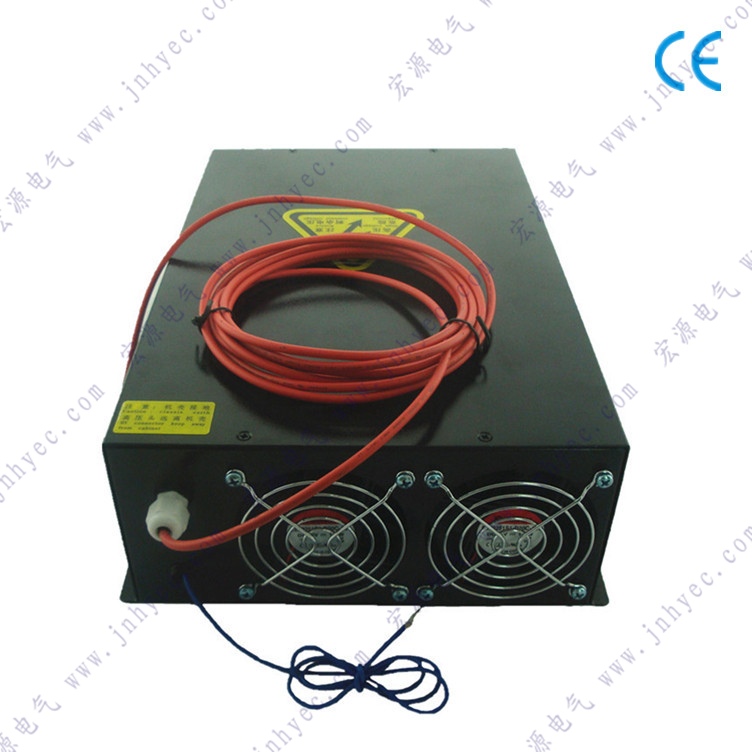

3. 150w co2 Laser Power Supply Pictures
6, For more detail information of our laser power supply or if you need any help, please contact us freely, we will try our best help you.
Our contact details are:
TEL: 0086-531 88190005 Fax: 00860531 88190006
Web: www.jnhyec.com/en/ or http://laser-power.en.alibaba.com
Add: Advanced Business Center, No.15 Lanxiang Road, Jinan250032, Shandong, China
Skype online: laserpwr
We can customized laser power supply according your requirment. Actually, about 50% of our laser power are specially customized for laser machine factory. If you have any urgent needs, please contact us freely.
