| 出力電圧: | DC35KV | 出力頻度: | 90% | 原産地: | 中国(本土) | 銘柄: | 宏源 | モデル番号: | HY-HVCO2/1.2 | 入力電圧: | ac220vまたはac110v | 出力電流: | DC23mA | 出力電力: | 60ワット | 色: | 黒 | 正味重量: | 2.2キログラム | ワーキングライフ: | 10000 h最小 | 保証: | 一年 |
包装
| 包装: | 私たち の パッケージング は カートン. the サイズ の ワン カートン詰め ワン電源です 26.5 (センチメートル) * 20.5 (センチ) * 13.5 (センチ) 、 サイズ の ワン カートン どの詰め 5電源は 47 (センチメートル) * 38 (センチ) * 29 (センチ) と詰め テン電源は 48 (センチメートル) * 38 (センチ) * 55.5 (センチ) 。 |
60W High Voltage CO2 Laser Power supply for Laser Tubes
60w Laser Power Supply Description:
Model: HY-HVCO2/1.2 for 40w,50w, 60w Co2 Laser Tubes
Alias: Co2 Laser Generator, Co2 Laser Source, Co2 Laser Device,High Voltage Power Supply
60w Co2 Laser Power Supply Application:
HY-HVCO2/1.2 Laser Power Supply is used for 40W,50W,60W Cutting and Engraving Acrylic, Fabric,
Double Color Sheet and Rubber, ect.
Main Features:
1) Good compatibility: It can be applicable to 40W and 60W laser tubes.
2) Cutting Type and Sculpting Type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect.
3) Dramatically lengthen the life of laser.
4) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
5) Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
6) The power supply has open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
7) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
8) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
9) Application: Acrylic sculpture, cut; fabric sculpture, cut; rubber sheet sculpture, cut, etc.
60w Laser power supply Specification
Input | Input Voltage | AC220V or AC110Vto be specified when placing order | |
AC frequency | 47440HZ | ||
Cold Surge Current | ≤60A(AC220V Input) | ≤30A(AC110 Input) | |
Current Leakage | ≤0.7MAAC220V Input | ≤0.4MA(AC110V Input) | |
Output | Maximum Input Voltage | DC 35KV | |
Maximum Output Current | DC 23MA | ||
Efficiency | ≥90full load | ||
Mean Time Between Failure (MTBF) | ≥1000H | ||
Response Speed | ≤1msfrom the switch Signal is given to the output current up to 90% of the setting current | ||
Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short timeRequire a good protective earthing and avoid arc between the positive and the machine shell | ||
Environment | Operating Temperature-10~40,Relative Humidity (RH)≤90 | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=207*144*97(mm) | ||

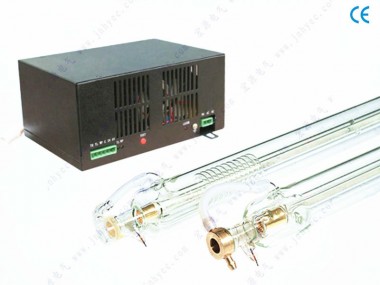

60w Co2 Laser Power Supply Pictures
