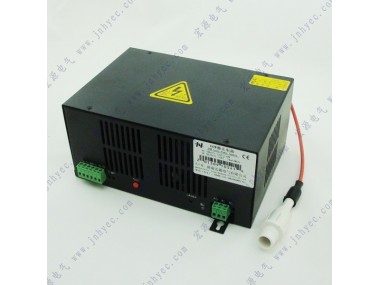

| 出力電圧: | dc 35kv | 出力頻度: | 47-440 ｈｚ | 原産地: | 中国(本土) | 銘柄: | hy | モデル番号: | HY-HVCO2/1.2 | 入力電圧: | 交流220ボルトまたは交流110ボルト | 出力電流: | DC23mA | 出力電力: | 60ワット | 色: | 黒 |
包装
| 包装: | 27*21*14センチにカートン |
Main Features:
1) Good compatibility: It can be applicable to 40W and 60W laser tubes.
2) Cutting Type and Sculpting Type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect.
3) Dramatically lengthen the life of laser.
4) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
5) Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
6) The power supply has open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
7) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
8) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
9) Application: Acrylic sculpture, cut; fabric sculpture, cut; rubber sheet sculpture, cut, etc.
2. Specification
Input | Input Voltage | AC220V or AC110V(to be specified when placing order) | |
AC frequency | 47—440HZ | ||
Cold Surge Current | ≤60A(AC220V Input) | ≤30A(AC110 Input) | |
Current Leakage | ≤0.7mA(AC220V Input) | ≤0.4mA(AC110V Input) | |
Output | Maximum Input Voltage | DC 35KV | |
Maximum Output Current | DC 23mA | ||
Efficiency | ≥90percent (full load) | ||
Mean Time Between Failure (MTBF) | ≥10000H | ||
Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90 percent of the setting current) | ||
Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10mA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell) | ||
Environment | Operating Temperature,-10~40°C,Relative Humidity (RH)≤90percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=207*144*97(mm) | ||

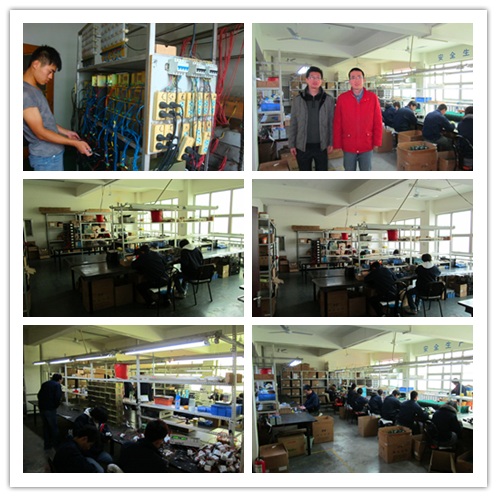

Company Profile:
Funded on July 2001,is a High-tech Enterprise that specialized in designing,manufacturing ,marketing electrical products.Products: CO2 laser power supply. YAG laser power supply , ISO:9001:2000, CE No.SHBST111802YSC-2.
FOR ALL OF OUR CLIENTS
NOTICE:
1. That factory only produce as a lower price as they can, they won't care about the quality. All our items are pass the FDA and CE quality certified.
2. As a professional manufacturer of laser power supply near 20 years, we have confidence to say that we are the biggest laser power supply manufacturer , and we have attend every LASER we are devoted into studying the technology, also having cooperated with many university like Shandong University for years.
3. We only produce and sell the top-quality products; we can provide the reasonable price since we have fought with the raw materials suppliers as a lowest cost as we can.
Warranty:1 year, Fully grantee 3 months.
