| 出力電圧: | 36±0。5vdc | 出力頻度: | 50/60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | saipwell | モデル番号: | SV-12060A | 入力電圧: | 150-260VAC | 出力電流: | 2.5a | 出力電力: | 60ワット | 防水クラス: | ip67 | 作業効率: | 以上80% | ケーブル必要: | 入力/出力ワイヤー長い20センチ |
包装
| 包装: | スタンディング輸出パッケージ。 |

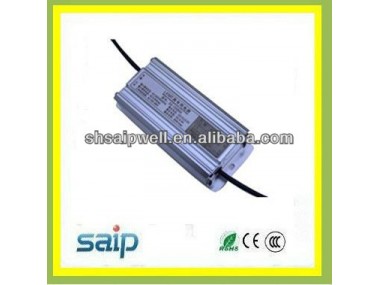

15-150W LED Lights Power Supply
led supply,power supply for led,waterproof led power supply, 5v dc led power supply, led power suply, led power, led light power supply,power supply for led lights,lighting power supply,led lights power supply,dc power supply,ac dc power supply,regulated power supply,led power,power supply 24v,led driver power supply,led power driver
SAIPWELL,AT YOUR SERVICE.
{ SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.}
Technical data:
| Product Model | SV-12060A | Outside Dimention | 170×72×46mm |
| InputVAC | 150-260VAC | Body metal | Aluminum |
| Output Power | 60 W | Voltage Withstand | 2000V |
| Output Voltage | 12±0.5VDC | Waterproof Class | IP67 |
| Output Current | 5.0A | Work efficiency | Greater than or equal to 80% |
| Cable require | Input/Output VDE power wire long 20cm | Protection function | Overvoltage.Overload.Short |
| current waterproof power supply | 350mA | model | input voltage9 | output volage(DC/V) | output current | power(W) | waterproof class | size(mm) |
| SC-35004A | AC110-240V | 3~12 | 350mA±5% | 4.2 | IP67 | 103(83)×28×22 | ||
| SC-35008A | 8~24 | 8.4 | 103(83)×28×22 | |||||
| SC-35013A | 12~36 | 12.6 | 150(130)×28×22 | |||||
| SC-35018A | 36~50 | 17.5 | 150(132)×28×22 | |||||
| SC-35028A | 50~80 | 27.5 | 205(185)×28×22 | |||||
| 700mA | SC-70008A | 3~12 | 700mA±5% | 8.4 | 103(82)×28×22 | |||
| SC-70018A | 12~24 | 16.8 | 150(130)×28×22 | |||||
| SC-70026A | 12~36 | 25.2 | 205(185)×28×22 | |||||
| SC-70035A | 30~50 | 35W | 205(185)×28×22 | |||||
| constant voltage waterproof power supply | 12V | SV-1206A | DC12±0.5V | 0.5A | 6 | 103(83)×28×22 | ||
| SV-1212A | 1.0A | 12 | 150(130)×28×22 | |||||
| SV-1218A | 1.5A | 18 | 150(130)×28×22 | |||||
| SV-1224A | 2.0A | 24 | 205(185)×28×22 | |||||
| SV-1230A | 2.5A | 30 | 205(185)×28×22 | |||||
| SV-1236A | 3.0A | 36 | 205(185)×28×22 | |||||
| SV-1248A | 4.0A | 48 | 165(138)×66×38 | |||||
| SV-1260A | 5.0A | 60 | 165(138)×66×38 | |||||
| SV-12100A | 8.3A | 100 | 220(195)×68×40 | |||||
| SV-12150A | 12.5A | 150 | 220(195)×68×55 | |||||
| 24V | SV-2412A | DC24±0.5V | 0.5A | 12 | 150(132)×28×22 | |||
| SV-2418A | 0.75A | 18 | 150(132)×28×22 | |||||
| SV-2424A | 1.0A | 24 | 205(185)×28×22 | |||||
| SV-2430A | 1.25A | 30 | 205(185)×28×22 | |||||
| SV-2436A | 1.5A | 36 | 205(185)×28×22 | |||||
| SV-2448A | 2A | 48 | 165(138)×66×38 | |||||
| SV-2460A | 2.5A | 60 | 165(138)×66×38 | |||||
| SV-24100A | 4.16A | 100 | 220(195)×68×40 | |||||
| SV-24150A | 6.25A | 150 |
