| 原産地: | 中国(本土) | 銘柄: | Corpereal | モデル番号: | R-150DMX | 色: | 8色 |

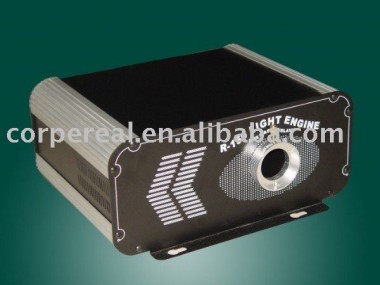

Optic fiber light source (R-150DMX)
The R-150DMX fibre optic illuminator is an economic high output fibre optic illuminator with DMX capability, allowing the colour change pattern to be controlled via DMX lighting systems.
The master/slave configuration can also be used meaning that the colour change pattern is synchronized between illuminators. It uses a 150W metal halide lamp making it suitable for both side emitting and end emitting fibre optic lighting applications.Details:• Non-Weatherproof• Solid aluminium body
• Can be controlled via DMX or used with master/slave configuration
• Separate wall plug for switching remotely
• UV and IR filterTypical Applications:
• Stage lighting
• Cove / Pelmet lighting
• Down lighting
• Feature lightingSpecifications:
| Input Voltage: | 220VAC/50Hz or 110VAC/60Hz |
| Power Consumption: | 180W |
| Construction: | Black and silver aluminum |
| Effect Wheel: | 8 Color Wheel: (white, purple, yellow, blue, green, orange, sky-blue and grass green) |
| Shutter Effect: | Shutter (type II only) |
| Motor Speed: | Variable |
| Motor Switch: | DMX512 signal cable or DIP Switch |
| Lamp: | OSRAM HQI-T150/NDL or Philips CDM-T 150/942 |
| Fiber Capacity: | 1245 x 0.75mm fibers maximum |
| Environment: | Ambient operating temperature of -5ºC to +40ºC |
| Indoor use only | |
| Filters: | Combined IR and UV |
| Dimensions: | L295mm x W340mm x H150mm |
| Gross Weight: | 11 kg |
R-150DMX(I) (color wheel only)
R-150DMX(II) (color wheel and shutter)
