| 出力電圧: | 220/230/240Vac、380/400/415Vac | 出力頻度: | 50/60のHz | 原産地: | 中国(本土) | 銘柄: | Helior | モデル番号: | Centrio DSP | 入力電圧: | 単一フェーズの176-276Vac; 三相のための304-478Vac | 出力電流: | 負荷に | 出力電力: | 4200W、7000W、10500W、14000W | 製品名: | 余分なUPSの電源の単位を平行にすること | 銘柄: | Helior | 保証: | 1年 | 色: | 黒 | 表示器: | LCD | 出力波形: | 純粋な正弦波 | 入力周波数範囲: | 46Hz~54Hz | 証明書: | CE&ROHS | 力率: | 0.7 | origionの場所: | 中国 |
包装
| 包装: | カートンのパッケージ |
Paralleling Redundant UPS Power Supply Units

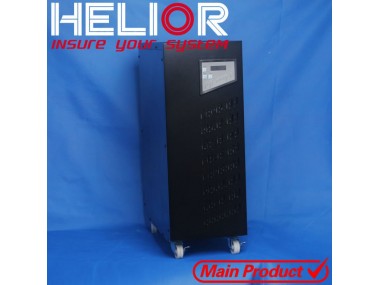

Centrio DSP 6-20KVA UPS system
1.
Power:
6KVA/4200W;
10KVA/7KW;
15KVAA/10.5KW;
20KVA/14KW
2.Models:
Single phase input and single phase output UPS systems models:
C6KL/C6KSL; C10KSL;
Three phase input and single phase output UPS systems models:
3C10KSL; 3C15KSL; 3C20KSL
3.
Outstanding Features:
a. Compacted Size with higher power factor (UPS systems)
b. Occupies the smallest space comparing to other ups power
e. online maintenance programme
f. Cold Start Function and Automatic Restart Function
g. Intelligent charging methods
h. Approximately 1 input power factor
i. Texas Instruments DSP processor control
j. Motorola Microprocessor design
k.Module design
n. Paralleled Extendable and Paralleled Redundancy Functions (Digital Control Technology)
o.online double conversion with unique maintenance bypass switch off
q. Automatic Power Factor Correction (PFC) design
m. Latest IGBT power components
r.RS-232 communication port for the on-screen monitoring of status of UPS systems
s. Sealed Lead-Acid maintenance-free battery
t. Optional battery banks or packs to extends UPS systems's backup time
u. Intelligent SNMP slot to allow remote communication among various operation systems and remote monitoring of the UPS systems
v.Real-time alarm silencing function
w. Power management software
x.CE and ISO9001, ISO4001 certificate.
4.
Usage Area:
IT rooms, Industry, Military equipments, Medical Equipments, Banking and Financing, Telecommunication, Traffic Lights system, Large computer rooms
Technical specification
MODEL | C6K(S)L | C10K(S)L | 3C10KSL | 3C15KSL | 3C20KSL |
Power(VA/Watt) | 6000VA/4200W | 10000VA/7000W | 10000VA/7000W | 15000VA/10500W | 20000VA/14000W |
INPUT | |||||
Voltage & Voltage Range | 220 VAC, 1 Phase + Neutral | 220 VAC, 1 Phase + Neutral | 380 VAC, 3 Phase + Neutral | 380 VAC, 3 Phase + Neutral | 380 VAC, 3 Phase + Neutral |
Voltage Tolerance | 176 – 276 VAC ± 3% | 176 – 276 VAC ± 3% | 304 – 478 VAC ± 3% | 304 – 478 VAC ± 3% | 304 – 478 VAC ± 3% |
Power Factor | ≥ 0.98 | ≥ 0.98 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
Current (nominal) | 23 Ampere | 37 Ampere | 13 Ampere / Phase - 39 A | 23 Ampere / Phase - 69 A | 30.3 Ampere / Phase - 91 A |
Input Fuse | 32 A NFB | 50 A NFB | 63 A NFB | 100 A NFB | 100 A NFB |
Frequency & Frequency Range | 50 Hz, 46 ~ 54 Hz | ||||
Working with Gen Set | Perfect Voltage and frequency Compatibility | ||||
OUTPUT - INVERTER and BYPASS | |||||
Load Power Factor Range | 0.65 inductive - 1.0 resistive | ||||
Voltage Wave Form | Sinusoidal | ||||
Voltage & Voltage Tolerance | 220 / 230 / 240 VAC ± 1% | ||||
Dynamic Response | At 50% - 100 - 50% unbalanced load, max voltage decline < ± 5% | ||||
Recovery Time | At Dynamic load Changes, Output Voltage recovery time is 60 msec ± 1% | ||||
Total Harmonic Distortion | For Linear Load ≤ 2%, Non Linear Load ≤ 6% | ||||
Frequency & Frequency Range | 50 Hz / Mains 46-54 Hz, Battery Mode ± 0.1% (0.05 Hz) | ||||
Crest Factor | 3:1 | ||||
Over Load (Mains) | For 105% - 130% load 10 mins., for > 130% load transfer to bypass after 1 sec, shutdown after 1 min at overloaded bypass | ||||
Over Load (Battery) | At > 105% load shut down after 10 sec. | ||||
Bypass and Transfer Time | Standard static bypass, Completely Uninterrupted transfer between Mains - Battery / Battery - Mains | ||||
Bypass Voltage Tolerance | 176 – 261 VAC, 1 Phase + Neutral | ||||
BATTERY | |||||
Type and Placement | Maintenance Free, Dry Type | ||||
Nominal Battery Voltage | 240 VDC | ||||
INDICATORS & ConTROL PANEL | |||||
Type | LCD Panel | ||||
Control Panel | Push Buttons (Open / Close, Audible Alarm Cancellation) | ||||
Measuring and Alarms | % Load, Input Voltage Exist, Output Voltage Exist, Bypass Active, Battery Mode, Battery Capacity (%), Inverter in Service, Fault | ||||
Indicators (LED) | Mains On, Mains Reverse, Battery Mode, Bypass On, Load / Battery Level, Overload, Fault | ||||
PROTECTIONS | |||||
Overload | Electronic Protection is available. In case of exceeding limits, the load is transferred to bypass without any interruption | ||||
Short Circuit | Inverter shuts down automatically | ||||
Over Temperature | If the internal Temperature is 90°C the load is transferred to bypass, When it returns < 80°C, Inverter starts to work | ||||
Modem / Network Protection | Modem / Network protection input against to Voltage Spikes | ||||
AUDIBLE ALARMS | |||||
Alarm Type and Alarms | Buzzer, it can be switched off by audible alarm button. | ||||
Battery Mode, Battery Low, UPS fault, Overload, Short Circuit, Over Charge, Charger, Bypass, Inverter fault, Communication fault | |||||
COMMUNICATION | |||||
Interface and Protocol | Standart DB 9 (Female) Port, Intelligent RS232 (standard), SNMP(optional) and DB25 parallel port (for paralelling, optional) | ||||
Software | Winpower-XP | ||||
GENERAL | |||||
Total Efficiency At 100% load | 88% | ||||
Noise Level | ≤ 55 dBA | ≤ 60 dBA | |||
Electro Magnetic Compatibility | EN 61000-4-2 (ESD), 4-3 (RS), 4-4 (EFT), 4-5 (surge), IEC 62040-2 (EMI) | ||||
Operation Temperature and Humidity | 0 °C ~ 40 °C, maximum 20-90% (Non Condence) | ||||
Storage Temperature | -20 °C ~ +70 °C | ||||
Protection Class | IP20 | ||||
Cooling Type | Forced cooling with variable speed fan according to load % | ||||
Operation Altitude | ≤ 1000 meter (from the sea level), at nominal load | ||||
Dimensions (mm), W x H x D | 260717x570 | ||||
Weight W/O / W/Battery (kg) | 35 / 84 | 38 / 93 | 38.5 | 55 | 55 |
