原産地: | 中国(本土) | 銘柄: | vios | モデル番号: | TMY13 | 最大トルク: | 46.91 | タイプ: | ベーンエアモーター | 平均空気消費量: | 200 | 無積載速度: | 5700 | 定格速度: | 2850 | 作動圧力: | 0.63 | 定格電力: | 14 | 無負荷速度: | 5700 | 色: | 黒、 黄色、 顧客の要求に従う | 速度比: | 要件に応じて | 共通名: | ベーン空気圧モーター | パッケージ: | ウッドボックス | 梱包サイズ: | 340*215*220ミリメートル | 重量: | 37.6キログラム |
2015 Hot Sale High Quality
Cheaper Price Professional Service
Rotary Vane Pneumatic Motor
Working Principle:
TMY13 is a type of motor which does mechanical work by expanding compressed air. It converts the compressed air energy to mechanical work through either linear motion. It is widely used in minning, ilfields, onstruction, etallurgy, paper making, medicine, chemistry smelting and other industries, as ideal mating driving equipment for large-scale drilling machinery. It works at a high speed ,for long time,outputting high torque.
Application places:
Widely applied in mine, oil field, construction, metallurgy, paper making, medicine, chemical industry, smelting
and other industried, as the power facility of some large-scale equipment like rock drilling machinery, etc.
Feacture:
1.High starting torque enables start with load, fast and stop.
2. Simple in structure, small in volume, light in weight, easy in operation and low in maintenance.
3.Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
4.Anti-overload function,automatically reduce to a lower speed until overload relieved and restart
5. flexible to perform clockwise and anti-clockwise rotation
6.Stepless speed change, change rotate speed and power via change air volume.
Technical data:
Working Pressure | No-load speed | Rated Speed | Rated Power | Air Consumption |
MPa | r/min | r/min | kW | L/s |
0.4 | 5000 | 2500 | 8 | 130 |
0.5 | 5400 | 2700 | 11 | 164 |
0.63 | 5700 | 2850 | 14 | 200 |
0.7 | 5870 | 2930 | 17 | 230 |

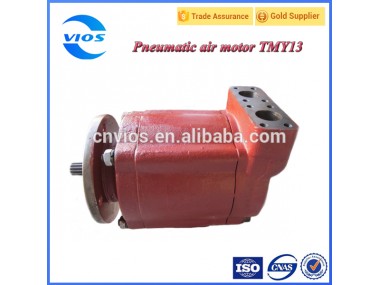

Products showing:
