| 原産地: | 中国(本土) | 銘柄: | vios | モデル番号: | TMHH3 | 最大トルク: | 9.38 | タイプ: | ピストンエアモーター | 平均空気消費量: | 42.2 | 無積載速度: | 4770 | 定格速度: | 2800 | 作動圧力: | 0.63 | 定格電力: | 2.75 | 色: | 黒、 黄色、 顧客の要求に従う | 共通名: | ピストン空気圧モーター | 正味重量: | 17キログラム | 総重量: | 20キログラム | リデューサー比: | 顧客の要求に従う | パッケージ: | ウッドボックス用送料燻蒸 | パッケージサイズ: | 310*200*210ミリメートル |
包装
| 包装: | エクスポートされたパッキング、ハード木製ケース |
2015 Hot Sale High Quality
Cheaper Price Professional Service
2015 hot sale small compressed air motor TMHH3
Working Principle:
TMHH3 piston air motor is operated on the basis of the following principles. After entering into the air distribution system(valve core and valve sleeve), the compressed air is accordingly delivered into cylinders, expanding to push the piston reciprocating; the pistons then drive the shaft and crank journal reciprocation and finally output driving power.
Application places:
Widely used in mining machines for drilling and loading, and also driving machine for oilfields, chemicals, constructions, engineering sites etc.
Feacture:
1.With anti-load function and step less speed control.
2.Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
3.Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.
Technical data:
| Working Pressure | No-load speed | Rated Speed | Rated Power | Air Consumption |
| MPa | r/min | r/min | kW | L/s |
| 0.4 | 4150 | 2430 | 1.5 | 25.4 |
| 0.5 | 4530 | 2600 | 2.12 | 34.6 |
| 0.63 | 4770 | 2800 | 2.75 | 42.2 |
| 0.7 | 4910 | 2884 | 3.34 | 52 |

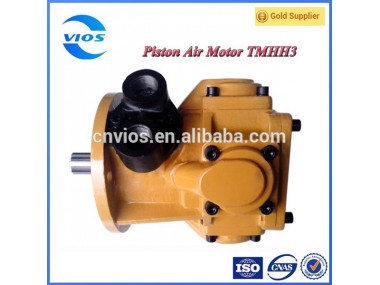

Products showing:
