原産地: | 中国(本土) | 銘柄: | Maxsharer | モデル番号: | E0201 | タイプ: | 帯電防止銃 | 保証: | 1年 | 証明: | セリウムおよびISO9001、SGS | 色: | カスタマイズすることができる | 銃ボディ: | 金属 |
包装
包装: | 1つのセットかカートン |

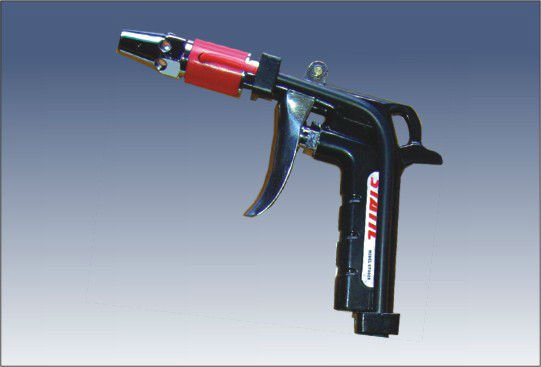

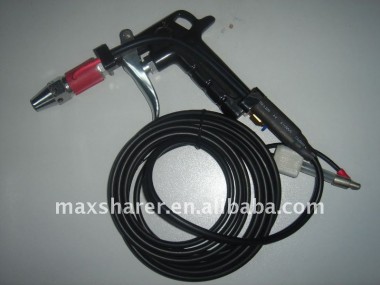

B201 ionizing air gun
It is designed with handle to remove both dust and static, and it should be operated with B0401 High voltage generator. The ionizing air guns are used in industry, clean room and so on.
Specifications
Operating voltage | 4.6Kv |
Current consumption | 200uA |
Operating temperature | -10-50 centigrade |
Weight( gun body) | 0.55kg |
HV cable length | 3 meters |
Air pressure | 5-7kpa |
Air velocity | More than 10m/sec |
Decay test result
Test condition testing voltage 5kv-500V operating voltage 4.6kv temperature 22 centigrade | ||||
Distance |
| 30mm | 90mm
| 150mm |
Decay time | positive | 0.1s | 0.4s | 0.7s |
negative | 0.1s | 0.3s | 0.8s |
The ionizing air guns connect HV generator with the nozzle of guns which produce corona discharge, and they are ionized by high voltage current to negative and positive ions to neutralize static and remove dust, and prevent dust absorption. We can operate ionizing air guns flexibly, and the ionizing air guns are suitable to remove static and dust in local areas.
