| 電圧: | 36ボルト | 構成されたタイプ: | 18650バッテリー | 原産地: | 中国(本土) | 適用: | 電動自転車、電動車椅子、ev | 銘柄: | oem | モデル番号: | yp | 重量: | 3キログラム | サイズ: | oem | 部品: | 18650 | タイプ: | 李イオン | わずかな容量: | 10ah | 放電率: | 2c |
包装
| 包装: | カートン |

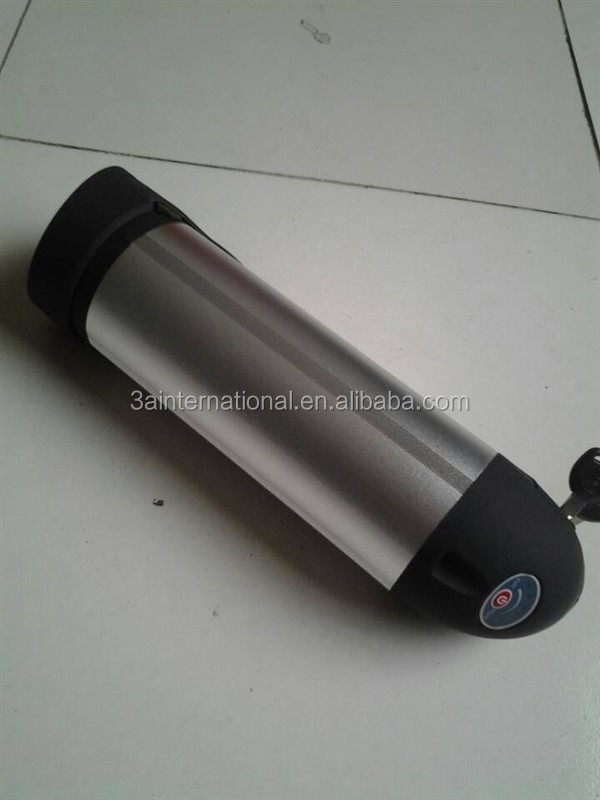

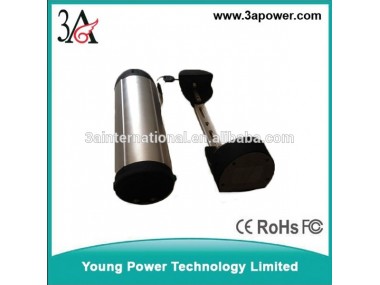

36v 10ah lithium ion battery pack for ebike
ebike battery OEM oders accepted
Specification:
| No. | Project | Spec data | |
| 1 | The nominal voltage | 36V | |
| 2 | Rated Capacity | 10Ah | |
| 3 | Continuous Current | 30A | |
| 4 | Overcurrent protection value | 42-43V | |
| 5 | Suitable for power | ≤500W | |
| 6 | Overcharge protection voltage | 4.25V ± 0.025V /CELL(can choose) | |
| 7 | Discharge protection voltage | 2.50V ± 0.025V /CELL(can choose) | |
| 8 | Charge mode | Constant current | |
| 9 | The maximum charging voltage | 42-43V | |
| 10 | Charging current | 1.7-4.2A | |
| 11 | Charging Temperature | 0~45°C,45~85%RH | |
| 12 | Discharge temperature | -20~55°C,45~85%RH | |
| 13 | Storage temperature and humidity range | Short-term: more than one month | -20~+55°C,45~85%RH |
| Interim: more than three months | -20~+45°C,45~85%RH | ||
| Long-term: one year or less | -5~+20°C,45~85%RH | ||
| 14 | Dimensions | Height | / |
| Width (protection board) | / | ||
| Width | / | ||
| 15 | Weight | >1500g | |
Product Name: 36V electric vehicle batteries, battery models kettle
Batteries type: Li-ion Battery18650 3.7v 2200mAh
The main protection functions: over charge, over charge, over current, short circuit, temperature, balance and other functions
Scope:
Electric Bicycle
Main features:
Can provide OEM / ODM service
There are a variety of different capacity batteries: 2000mAh, 2200mAh, 2400mAh, 2600mAh, 2800mAh, 3000mAh
All imported Sanyo, Sony, Panasonic, Samsung, LG original batteries or batteries made famous as PACK unit.
Protection system used in Japan and the United States original chip.
