| 電圧: | 14.8ボルト | 構成されたタイプ: | 4s3p | 原産地: | 中国(本土) | 適用: | 電動工具用バッテリパック | 銘柄: | leadyo | モデル番号: | LY-L04S003-056 | 重量: | 400グラム | サイズ: | l115 * w68 * T38mm | 部品: | リチウムイオン | タイプ: | 李イオン | わずかな容量: | 6600 mah | タイプ: | 18650バッテリー | 公称容量: | 6600 mah | 公称電圧: | 14.8ボルト | 標準充電時間: | ミリアンペア/ 4時間、3000ma/2.5時間 | 最大充電電流: | 6600ma (1c) | 放電カットオフ電圧: | 9.6ボルト | 短絡保護: | エクステリア短絡 | 過充電検出電圧: | 4.35ボルト± 025ボルト | 過放電検出電圧: | 3.0 ± 10ボルト | 過電流検出: | 30±5a |
包装
| 包装: | 静電防止袋 |
High quality14.8V 6600mAh Li-ion battery pack,18650 6600mAh rechargeable battery
Product Description

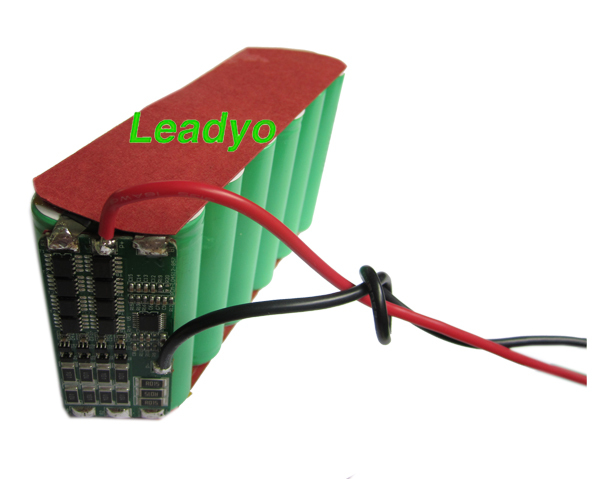

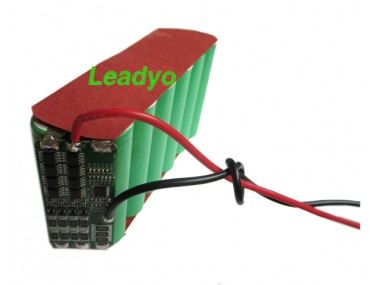

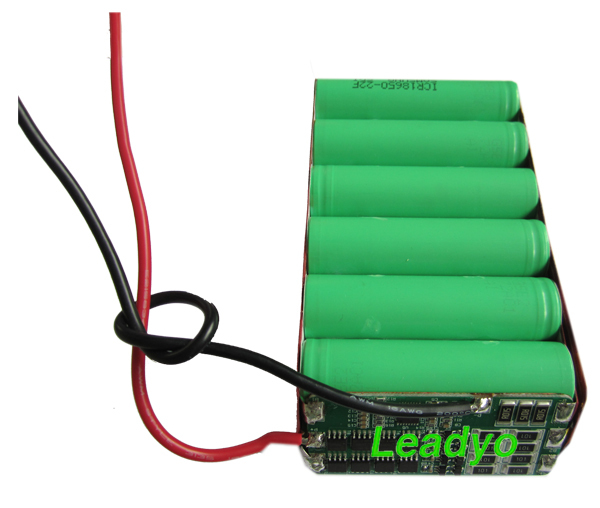

1.4S3P 18650 14.8V Lithium battery pack
2. Nominal capacity:6600mAh
3. Nominal voltage :14.8V
4. Maximum charging current: 6600mA(1C)
Our Service
1. Fast reply your inquiry in 24 office working hours.
2. OEM/ODM customized.
3. Professional researching engineers and Technical staff offer first-class service.
4. Quick Delivery by international express company.
5. Welcome your good advice.
Detail Specification
| Shenzhen Leadyo Technology Co.,Ltd. | |||
| 18650/4S3P Li-ion Battery Pack 14.8V/6.6Ah | |||
| Model:LY-L04S003-056 | |||
| Item | Specification | Remark | |
| Nominal capacity | 6600mAh | SAMSUNG ICR18650-22F | |
| Nominal voltage | 14.8V | 3.7V / 1Cell | |
| Charging voltage | 16.8V±0.05V | 4.2V / 1Cell | |
| Charging method | CC/CV | (Constant-current and -Voltage with Limited current | |
| Standard charging time | 2000mA/4hour,3000mA/2.5hour | Battery capacity÷charging current×1.5 | |
| charging current | 3300mA(0.5C) | 0 ~ +40 | |
| Maximum charging current | 6600mA(1C) | 0 ~ +40 | |
| Continuous discharge current | 6600mA(1C) | -20 ~ +60 | |
| Discharge cutoff voltage | 9.6V | 2.4V / 1Cell | |
| Short circuit protection | Exterior short circuit | Automatic recovery | |
| Internal resistance | ≤200mΩ | AC Impedance 1kHz | |
| Cycle life | ≥500 | ||
| Operating temperature | Standard Charge | 0 ~ +40 | |
| Standard Discharge | -20 ~ +60 | ||
| Outline dimension | L115*W68*T38mm | Length x wide x height | |
| Pre-wired | Red = Positive,Black = Negative | ||
| Protection Circuit Module:PCM-L04S10-406 | |||
| Maximal continuous charging current | 10A | ||
| Maximal continuous Discharging current | 10A | ||
| Over-charge detection voltage | 4.35 V ±0.025V | single cell | |
| Over-charge release voltage | 4.05±0.05V | single cell | |
| Over-charge detection delay time | 0.7S—1.3S | single cell | |
| Over-discharge detection voltage | 2.30V±0.062V | single cell | |
| Over-discharge release Voltage | 3.0±0.10V | single cell | |
| Over-discharge detection delay time | 89—167mS | single cell | |
| Over-current detection | 30±5A | can adjust | |
| Over-current delay time | 6.7ms—13.9ms | ||
| 18650/4S3P Li-ion Battery pack | |||
Competitive Advantage
1.Grade A new cell
2.IC of BMS/PCM IC is from SEIKO
3.One year warranty
4.Excellent safety performance
5.Factory price& High quality
6.Light weight, small size ( Customized)
Feature:
1.Longer storage life than NiMH Batteries
2.IC chip will prevent the battery pack from over charge and over discharge.
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Low Maintenance - no periodic discharge is needed; there is no memory.
Why choose us ?
1.More competitive price! As a manufacturer,we have our own factory and engineers ,we own design BMS and produce ,so the price will be more competitive!
2.Great quality! All the cells we use are A grade cells,100% quality check and one year warranty!
3.Fast delievery :1000pcs noly need 3 days.
4.Great shipping service! We have cooperated with DHL,FEDEX and EMS for long time,so we could promise save much more money on the shipping cost and better service is offered!
5.The best after-sales service : you can direct contact our engineer to help you when the battery pack have problem.
