包装:	バッテリーパックの中立パッキング

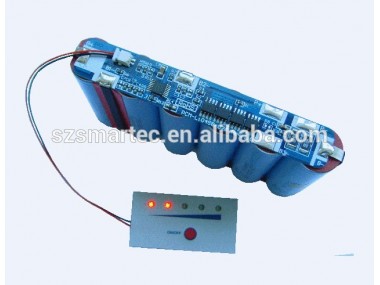

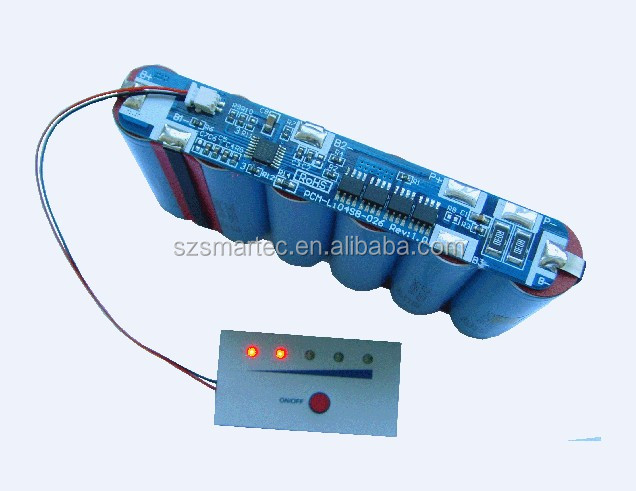

3S2P 18650 battery Li-ion Battery Pack

Product Description

18650/3S2P Li-ion Battery Pack 11.1V/5.2AH
Model:LY-L03S002-008
Item	Specification		Remark
Nominal capacity	5200mAh		0.5C discharge Cell: 18650
Nominal voltage	11.1V		3.7V / 1Cell
Charging voltage	12.6V±0.05V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	1800mA/3hour,3000mA/2hour		Battery capacity÷charging current×1.5
charging current	2600mA(0.5C)		0 ~ +40°C
Maximum charging current	5200mA(1C)		0 ~ +40°C
Continuous discharge current	5200mA(1C)		-20 ~ +60°C
Discharge cutoff voltage	7.2V		2.4V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤200mΩ		AC Impedance 1kHz
Cycle life	≥500
Operating temperature	Standard Charge	0 ~ +40°C
	Standard Discharge	-20 ~ +60°C
Outline dimension	L110W19H71mm		Length x wide x height
Pre-wired			Red = Positive,Black = Negative
Protection Circuit Module:PCM-L03S10-043
Maximal continuous charging current	7A
Maximal continuous Discharging current	7A
Over-charge detection voltage	4.35V±0.025V		single cell
Over-charge release voltage	4.15V±0.05V		single cell
Over-charge detection delay time	0.5S—1.5S		single cell
Over-discharge detection voltage	2.40V±0.08V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	50—150mS		single cell
Over-current detection	20±3A		can adjust
Over-current delay time	5—15mS
