電圧: | 7.4v | 構成されたタイプ: | 2s1p | 原産地: | 中国(本土) | 適用: | 12vの鉛酸バッテリーを交換 | 銘柄: | leadyo | モデル番号: | Ly-l02s001-005 | 重量: | 1kg | サイズ: | L72*w37*h20mm | 部品: | リチウムイオン | タイプ: | 李イオン | わずかな容量: | 2600ah | タイプ: | リチウム電池 | 公称容量: | 2600ah | 公称電圧: | 7.4v | 標準充電時間: | 1000ma/3hour、 2000ma/1.5hour | 最大電流放電: | 2600ah( 1c) | 放電電圧カットオフ: | 4.8v | 短絡保護: | 外装短絡 | 上- 充電検出電圧: | 4.25±0.025vv | 上- 放電検出電圧: | 2.40v±0.062v | 上- 電流検出: | 6.5±1a |
包装
包装: | リチウム電池のための白いボックス |

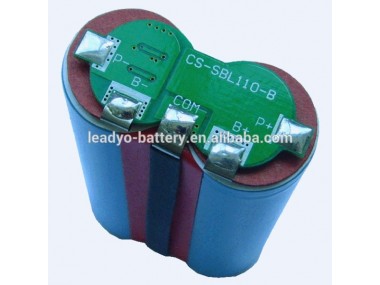

2S1P 7.4V 2.6A Li-ion Battery Pack lithium battery
Product Description1:more than 500 Cycle life
2.Charging method:CC/CV
3.Max discharge current: 2600mA(1C)
18650/2S1P Li-ion Battery Pack 7.4V/2.6AH | |||
Model:LY-L02S001-005 | |||
Item | Specification | Remark | |
Nominal capacity | 2600mAh | 0.5C discharge Cell: 18650 | |
Nominal voltage | 7.4V | 3.7V / 1Cell | |
Charging voltage | 8.4V±0.05V | 4.2V / 1Cell | |
Charging method | CC/CV | (Constant-current and -Voltage with Limited current | |
Standard charging time | 1000mA/3hour,2000mA/1.5hour | Battery capacity÷charging current×1.5 | |
charging current | 1300mA(0.5C) | 0 ~ +40°C | |
Maximum charging current | 2600mA(1C) | 0 ~ +40°C | |
Continuous discharge current | 2600mA(1C) | -20 ~ +60°C | |
Discharge cutoff voltage | 4.8V | 2.4V / 1Cell | |
Short circuit protection | Exterior short circuit | Automatic recovery | |
Internal resistance | ≤200mΩ | AC Impedance 1kHz | |
Cycle life | ≥500 | ||
Operating temperature | Standard Charge | 0 ~ +40°C | |
Standard Discharge | -20 ~ +60°C | ||
Outline dimension | L72*W37*H20mm | Length x wide x height | |
Pre-wired | Red = Positive,Black = Negative | ||
Protection Circuit Module:PCM-Li02S3-076 | |||
Maximal continuous charging current | 3A | ||
Maximal continuous Discharging current | 3A | ||
Over-charge detection voltage | 4.25 V ±0.025V | single cell | |
Over-charge release voltage | 4.05±0.05V | single cell | |
Over-charge detection delay time | 0.7S—1.3S | single cell | |
Over-discharge detection voltage | 2.40V±0.062V | single cell | |
Over-discharge release Voltage | 3.0±0.10V | single cell | |
Over-discharge detection delay time | 89—167mS | single cell | |
Over-current detection | 6.5±1A | can adjust | |
Over-current delay time | 6.7ms—13.9ms |
2.Shipping: ship by DHL, UPS, FedEx, TNT China Post and so on.
