| 電圧: | 7.4v | 構成されたタイプ: | バッテリーパック | 原産地: | 中国(本土) | 適用: | 電気機器 | 銘柄: | smartec | モデル番号: | Ly-l02s001-005 | 重量: | 2kg | サイズ: | L72*w37*h20mm | 部品: | リチウムイオン | タイプ: | 李イオン | わずかな容量: | 2600mah | 公称容量: | 2600mah | 公称電圧: | 7.4v | 標準充電時間: | 1000ma/3hour、 2000ma/1.5hour | 連続放電電流: | 2600mahの( 1c) | 放電電圧カットオフ: | 4.8v | 上- 充電検出電圧: | 4.25±0.025vv | 上- 放電検出電圧: | 2.40v±0.062v | 上- 電流検出: | 6.5±1a | 最大連続放電電流: | 3a | タイプ: | 186502.6ahバッテリーパック |
包装
| 包装: | の中立パッキング186502.6ahバッテリーパック |

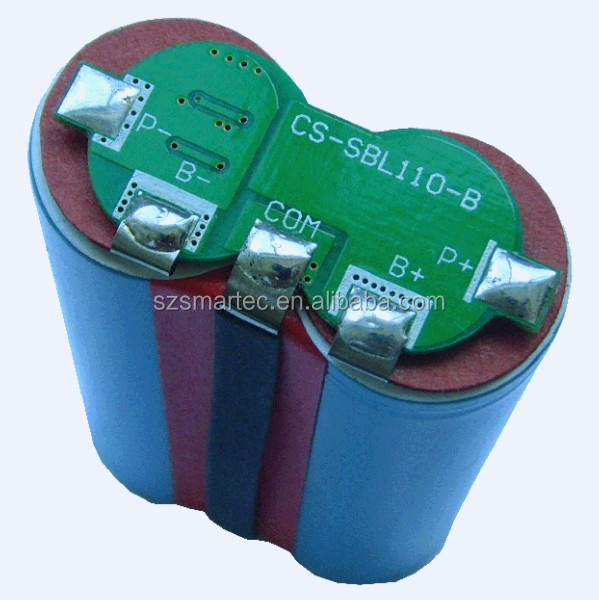

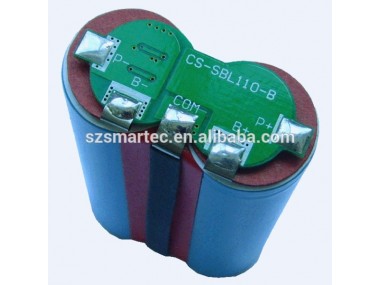

7.4V 18650 2.6AH battery pack, Li-ion Battery Pack
Product Description| 18650/2S1P Li-ion Battery Pack 7.4V/2.6AH | |||
| Model:LY-L02S001-005 | |||
| Item | Specification | Remark | |
| Nominal capacity | 2600mAh | 0.5C discharge Cell: 18650 | |
| Nominal voltage | 7.4V | 3.7V / 1Cell | |
| Charging voltage | 8.4V±0.05V | 4.2V / 1Cell | |
| Charging method | CC/CV | (Constant-current and -Voltage with Limited current | |
| Standard charging time | 1000mA/3hour,2000mA/1.5hour | Battery capacity÷charging current×1.5 | |
| charging current | 1300mA(0.5C) | 0 ~ +40°C | |
| Maximum charging current | 2600mA(1C) | 0 ~ +40°C | |
| Continuous discharge current | 2600mA(1C) | -20 ~ +60°C | |
| Discharge cutoff voltage | 4.8V | 2.4V / 1Cell | |
| Short circuit protection | Exterior short circuit | Automatic recovery | |
| Internal resistance | ≤200mΩ | AC Impedance 1kHz | |
| Cycle life | ≥500 | ||
| Operating temperature | Standard Charge | 0 ~ +40°C | |
| Standard Discharge | -20 ~ +60°C | ||
| Outline dimension | L72*W37*H20mm | Length x wide x height | |
| Pre-wired | Red = Positive,Black = Negative | ||
| Protection Circuit Module:PCM-Li02S3-076 | |||
| Maximal continuous charging current | 3A | ||
| Maximal continuous Discharging current | 3A | ||
| Over-charge detection voltage | 4.25 V ±0.025V | single cell | |
| Over-charge release voltage | 4.05±0.05V | single cell | |
| Over-charge detection delay time | 0.7S—1.3S | single cell | |
| Over-discharge detection voltage | 2.40V±0.062V | single cell | |
| Over-discharge release Voltage | 3.0±0.10V | single cell | |
| Over-discharge detection delay time | 89—167mS | single cell | |
| Over-current detection | 6.5±1A | can adjust | |
| Over-current delay time | 6.7ms—13.9ms | ||
