| 原産地: | 中国(本土) | 銘柄: | enerise | モデル番号: | CR1130 | サイズ: | 11.6*3.0 | 電池のタイプ: | LiMnO2 | わずかな電圧: | 3ボルト | わずかな容量: | 40 mah |
包装
| 包装: | 縮小またはブリスターカード |
Product Description

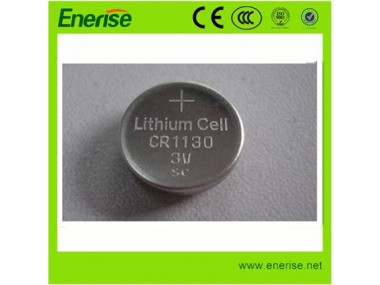

CR1130 Lithium Manganese Button Cell Battery
ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
Nominal voltage | V | 3.0 |
| |
Nominal capacity | mAh | 40 | Standard discharge with load 62kΩ | |
Instantaneous short–circuit current | mA | ≥100 | Time≤0.5 second | |
Off-load voltage | V | ≥3.20 |
| |
Operating temperature | -20~60 |
| ||
Standard weight | g | 1.0 | Unit cell | |
Service output | Initial | Standard | 965 h | Continuous discharge with load 62kΩ, till 2.0v end-voltage at 20~25 |
After 12 months storage | Standard | 905 h | ||
Performance And Test Conditions
- Unless otherwise stated, all the testing is carried out under the condition
- Environmental temperature: 20°c-25°c
- Environmental humidity: 65±20%
Suggestions And Cautions
1. Install batteries correctly.
2. Ensure the contact points to be clean and conductive.
3. Do not mix differnt types, different brands batteries to serve together.
4. Do not heat, recharge the batteries.
5. Do not dispose of the batteries in fire.
6. Keep away from the small children, If swallow promptly see doctor.
7. Pay attention to the producing date.
Other Chooice For Button Cell Battery
Item No. | Normail Voltage (V) | Capacity(mAh) | Dimension(mm) | Weight(g) |
3V Lithium Manganese Dioxide Battery CR series | ||||
CR927 | 3.0 | 30 | 9.5*2.7 | 0.6 |
CR1025 | 3.0 | 30 | 10.0*2.5 | 0.6 |
CR1130 | 3.0 | 40 | 11.6*3.0 | 0.6 |
CR1212 | 3.0 | 18 | 12.5*1.2 | 0.7 |
CR1216 | 3.0 | 25 | 12.5*1.6 | 0.7 |
CR1220 | 3.0 | 40 | 12.5*2.0 | 0.85 |
CR1225 | 3.0 | 48 | 12.5*2.5 | 0.93 |
CR1530 | 3.0 | 95 | 15.0*3.0 | 1.5 |
CR1616 | 3.0 | 50 | 16.0*1.6 | 1.2 |
CR1620 | 3.0 | 70 | 16.0*2.0 | 1.2 |
CR1625 | 3.0 | 90 | 16.0*2.5 | 1.4 |
CR1632 | 3.0 | 120 | 16.0*3.2 | 2.0 |
CR2016 | 3.0 | 75 | 20.0*1.6 | 1.80 |
CR2025 | 3.0 | 150 | 20.0*2.5 | 2.50 |
CR2025 | 3.0 | 160 | 20.0*2.5 | 2.50 |
CR2025 | 3.0 | 170 | 20.0*2.5 | 2.50 |
CR2032 | 3.0 | 200 | 20.0*3.2 | 3.00 |
CR2032 | 3.0 | 210 | 20.0*3.2 | 3.00 |
CR2032 | 3.0 | 230 | 20.0*3.2 | 3.00 |
CR2050 | 3.0 | 300 | 20.0*5.0 | 4.20 |
CR2430 | 3.0 | 290 | 24.5*3.0 | 4.50 |
CR2450 | 3.0 | 550 | 24.5*5.0 | 6.50 |
CR2450 | 3.0 | 620 | 24.5*5.0 | 6.7 |
CR2477 | 3.0 | 950 | 24.5*7.7 | 8.50 |
CR2477 | 3.0 | 1100 | 24.5*7.7 | 9.90 |
CR3032 | 3.0 | 580 | 30.0*3.2 | 8.00 |
