| 原産地: | 中国(本土) | 銘柄: | greenmax | モデル番号: | cr2016 | サイズ: | 20*1.6ミリメートル | 電池のタイプ: | LiMnO2 | わずかな電圧: | 3ボルト | わずかな容量: | 75 mah | アイテム: | ボタン電池cr2016 | 証明書: | msds、2006/66/ec | アプリケーション: | おもちゃ、コンピュータ、カメラ、電卓など | 低自己放電電流: | はい | 重量: | 2.4グラム | サイズ: | 20*1.6ミリメートル | パッケージ: | 工業用パッケージ | 貯蔵寿命: | 3年 | サンプル: | はい | oem: | はい |
包装
| 包装: | 5ピース/ブリスターカード、20 cards/ボックス、1000ピース/ ctn; 500ピース/セット、6000ピース/ ctn;またはカスタマイズ包装; |

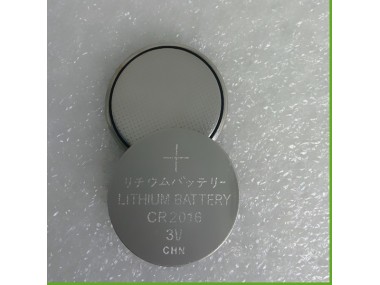

Button Cell Cr2016
Product Description
Specifications:
1. Voltage: 3V
2. Capacitor: 75mAh
3. Current recommended: 0.1mA
4. Current recommended (interrupt): 5mA
5. Diameter 20mm High: 1.6mm
7. High capacitor, low self-discharge current, discharges stability during work.
8. Battery of environmental protection.
Performance And Test Conditions
- Unless otherwise stated, all the testing is carried out under the condition
- Environmental temperature: 20°c-25°c
- Environmental humidity: 65±20%
Suggestions And Cautions
1. Install batteries correctly.
2. Ensure the contact points to be clean and conductive.
3. Do not mix different types, different brands batteries to serve together.
4. Do not heat, recharge the batteries.
5. Do not dispose of the batteries in fire.
6. Keep away from the small children, if swallow promptly see doctor.
7. Pay attention to the producing date.
Item No. | Voltage (v) | Capacity (mAh) | Size Dia*H (mm) | Weight (g) | Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
CR927 | 0.3 | 30 | 9.7*2.7 | 0.60 | 0.5 | 5 |
CR1216 | 3.0 | 25 | 12.5*2.0 | 0.90 | 1 | 5 |
CR1220 | 3.0 | 40 | 12.5*2.5 | 1.00 | 2 | 5 |
CR1225 | 3.0 | 50 | 12.5*2.5 | 1.20 | 2 | 5 |
CR1616 | 3.0 | 50 | 16.0*1.6 | 1.60 | 2 | 10 |
CR1620 | 3.0 | 70 | 16.2*2.0 | 1.30 | 2 | 10 |
CR1632 | 3.0 | 120 | 163*3.2 | 1.80 | 2 | 15 |
CR2016 | 3.0 | 75 | 20*1.6 | 2.4 | 2 | 15 |
CR2025 | 3.0 | 150 | 20*2.5 | 2.4 | 2 | 15 |
CR2032 | 3.0 | 230 | 20*3.2 | 3.0 | 3 | 15 |
CR2320 | 3.0 | 150 | 23*2.0 | 3.0 | 3 | 20 |
CR2325 | 3.0 | 190 | 23*2.5 | 3.5 | 3 | 20 |
CR2330 | 3.0 | 260 | 23*3.0 | 4.0 | 3 | 20 |
CR2430 | 3.0 | 285 | 24.5*3.0 | 4.5 | 3 | 10 |
CR2450 | 3.0 | 550 | 24.5*5.0 | 6.2 | 3 | 30 |
CR2477 | 3.0 | 800 | 24.5*7.7 | 7.0 | 3 | 20 |
Packaging & Shipping
