| 原産地: | 中国(本土) | 銘柄: | enerise | モデル番号: | cr2032 | サイズ: | 2.0 × 3.2 | 電池のタイプ: | LiMnO2 | わずかな電圧: | 3ボルト | わずかな容量: | 230 mah |
包装
| 包装: | バルクまたはに従ってclients要件。 |

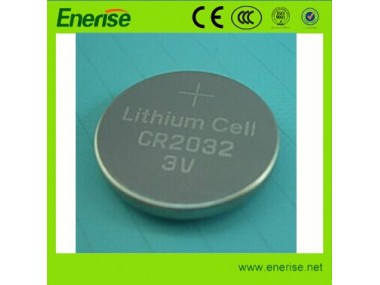

Item: CR2032 button cell 3V Lithium battery button battery
Product Description
ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
Nominal voltage | V | 3.0 |
| |
Nominal capacity | mAh | 230 | Standard discharge with load 15kΩ | |
Instantaneous short–circuit current | mA | ≥120 | Time≤0.5 second | |
Off-load voltage | V | ≥3.2 | Without load | |
Operating temperature | -20~60 |
| ||
Standard weight | g | 3.0 | Unit cell | |
Service output | Initial | Standard | 1300 h | Continuous discharge with load 15kΩ, till 2.0v end-voltage |
After 12 months storage | Standard | 1200 h | ||
Red LED light flash test | times | ≥1,000,000 | Pulse discharge with 6pcs red LED light, flash each 1.5 seconds till 1.6v end-voltage | |
Blue LED light flash test | times | ≥2,200,000 | Pulse discharge with 6pcs blue LED light, flash each 1.5 seconds till 2.0v end-voltage | |
Other Chooice For Button Cell Battery
Item No. | Normail Voltage (V) | Capacity(mAh) | Dimension(mm) | Weight(g) |
3V Lithium Manganese Dioxide Battery CR series | ||||
CR927 | 3.0 | 30 | 9.5*2.7 | 0.6 |
CR1025 | 3.0 | 30 | 10.0*2.5 | 0.6 |
CR1130 | 3.0 | 48 | 11.6*3.0 | 0.6 |
CR1212 | 3.0 | 18 | 12.5*1.2 | 0.7 |
CR1216 | 3.0 | 25 | 12.5*1.6 | 0.7 |
CR1220 | 3.0 | 40 | 12.5*2.0 | 0.85 |
CR1225 | 3.0 | 48 | 12.5*2.5 | 0.93 |
CR1530 | 3.0 | 95 | 15.0*3.0 | 1.5 |
CR1616 | 3.0 | 50 | 16.0*1.6 | 1.2 |
CR1620 | 3.0 | 70 | 16.0*2.0 | 1.2 |
CR1625 | 3.0 | 90 | 16.0*2.5 | 1.4 |
CR1632 | 3.0 | 120 | 16.0*3.2 | 2.0 |
CR2016 | 3.0 | 75 | 20.0*1.6 | 1.80 |
CR2025 | 3.0 | 150 | 20.0*2.5 | 2.50 |
CR2025 | 3.0 | 160 | 20.0*2.5 | 2.50 |
CR2025 | 3.0 | 170 | 20.0*2.5 | 2.50 |
CR2032 | 3.0 | 200 | 20.0*3.2 | 3.00 |
CR2032 | 3.0 | 210 | 20.0*3.2 | 3.00 |
CR2032 | 3.0 | 230 | 20.0*3.2 | 3.00 |
CR2050 | 3.0 | 300 | 20.0*5.0 | 4.20 |
CR2430 | 3.0 | 290 | 24.5*3.0 | 4.50 |
CR2450 | 3.0 | 550 | 24.5*5.0 | 6.50 |
CR2450 | 3.0 | 620 | 24.5*5.0 | 6.7 |
CR2477 | 3.0 | 950 | 24.5*7.7 | 8.50 |
CR2477 | 3.0 | 1100 | 24.5*7.7 | 9.90 |
CR3032 | 3.0 | 580 | 30.0*3.2 | 8.00 |
