| 原産地: | 中国(本土) | 銘柄: | Kt- フレックス | モデル番号: | pcli019 | 材料: | ステンレス鋼 | 作業温度: | -50°c~300°c | スクリューアパーチャ: | 6.6ミリメートル | 幅: | 15mm | 厚さ: | 3.0mm | 私。 d( mm): | 111.5mm | モデル名: | 穴のネジ一つクリップ |
包装
| 包装: | 穴のネジ一つカートンケースにクリップ |
Product Description
One Hole Screw Clips Cable Saddle without PVC Coated
Material: Iron, Stainless Steel
Plated:nickel
Working Temperature : -50~105degree
Specification chart of One Hole Screw Clips
Part No. | I.D. | Screw Aperture | Width | Thickness |
(mm) | (mm) | (mm) | (mm) | |
PCLI006 | 11.0 | 6.6 | 15 | 1.0 |
PCLI007 | 14.0 | 6.6 | 15 | 1.0 |
PCLI008 | 16.0 | 6.6 | 15 | 1.0 |
PCLI010 | 18.0 | 6.6 | 15 | 1.5 |
PCLI011 | 22.0 | 6.6 | 15 | 1.5 |
PCLI012 | 27.0 | 6.6 | 15 | 1.5 |
PCLI013 | 32.0 | 6.6 | 15 | 2.0 |
PCLI014 | 40.0 | 6.6 | 15 | 2.0 |
PCLI015 | 47.0 | 6.6 | 15 | 2.0 |
PCLI016 | 60.0 | 6.6 | 15 | 2.5 |
PCLI017 | 75.30 | 6.6 | 15 | 2.5 |
PCLI018 | 86.5 | 6.6 | 15 | 2.5 |
PCLI019 | 111.5 | 6.6 | 15 | 3.0 |

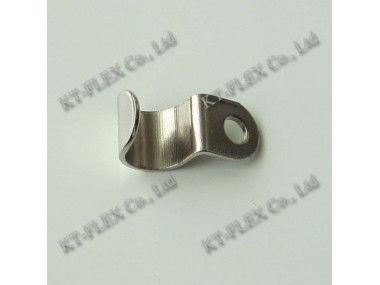

The detailed photos of One Hole Screw Clips
