| 原産地: | 中国(本土) | 銘柄: | jiechu | モデル番号: | JCSM-36 | タイプ: | ヒューズの排気切替器 | 製品名: | 33kv磁器セラミック ヒューズ 100a 200a ヒューズ切り抜き | 重量: | 5.2 キログラム | 標準: | iec | 使用法: | 高電圧 | 寸法: | 38.5*34.5*10.5 センチ | 定格電圧: | 33kv | 定格電流: | 200a | を壊す電流: | 10ka | インパルス電圧: | 95KV | 漏れ距離: | 240 ミリメートル |
包装
| 包装: | によってpolywoodcaseまたはカートン。 |
33KV porcelain ceramic fuse holder 100A 200A dro out cutout fuse expulsion fuse cutout
Description of 33KV fuse cutout
| Material | polymer china insulator |
| Port of Loading | Shenzhen,Shanghai,Ningbo |
| Delivery Time | 25-30 workdays after /confirm/iation |
| Packaging | 1.Standard exportable fumigated wooden boxes |
Fuse Cutouts
Application: Protection device for protecting power system from over-load and short-circuit failure.
Ratings: 11kV-36kV.
Standards: IEC 600282-2
Features:
1, High over-current protection capability, high breaking current.
2, High industrial frequency withstands voltage, and mechanical strength, etc.
3, High quality on strict testing.
Technical data:
1, Rated voltage: 15kv .
2, Rated current: 100A-200A
Note: For detail, please refer to the catalogue.

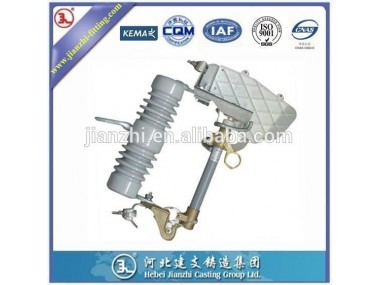

24kV-200A High-voltage Expulsion Fuse Cutout
Brief
Jianzhi Electric manufactures outdoor fuse cutouts suitable for A.C. system from 10kV to 38kV which are used to protect distribution line and transformer against overload and short-circuit damage. The fuse cutout can also be used as power line disconnecting equipment.
It is developed and manufactured in accordance with IEC 60282-2 and ANSI/IEEE C37.41 standards and it is tested and certified by KEMA lab.
Technical Data
Rated voltage | 24kV |
Rated current | 200A |
Rated breaking current | 8kA |
Lightning impulse withstand voltage | 150kV |
Power frequency withstand voltage | 50kV |
Creepage distance | 600mm |
Insulation housing material | polymer |
Rated Voltage | Rated current | Breaking current | Impulse voltage | Power-frequency withstand voltage (kV) | Leakage distance |
15 | 100 | 10000 | 110 | 40 | 250 |
15 | 200 | 12000 | 110 | 40 | 250 |
