| 原産地: | 中国(本土) | 銘柄: | langir | モデル番号: | ec | ケーブル マーカー材料: | pvc | フラット ケーブル マーカー材料: | ソフト pvc | ケーブル マーカー ストリップ材料: | ナイロン 94v-2 。 |

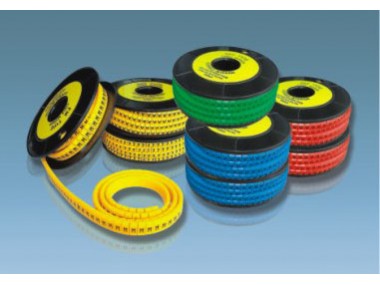

Cable Marker
Material: Made from PVC, oil and control, heat resisting up to 85 degrees cetigrade. Struction the inside is hollow, but elastic, the diameter can change with the needed wire.
| Item.NO. | Approx wire | markers | packing | |
| mm2 | ¦µ(mm) | |||
| EC-0 | 0.75~1.5 | 2.0~3.2 | 0~9 A~Z +, -, /, | 1000PCS/ROLL |
| EC-1 | 0.75~3.5 | 3.0~4.2 | 1000PCS/ROLL | |
| EC-2 | 3.5~8.0 | 3.6~7.4 | 500PCS/ROLL | |
| EC-3 | 5.2~10.0 | 5.2~10.0 | 250PCS/ROLL | |
Flat cable markers
Usage:Flat cable marker with its unique oval shape design provides
1.Slip over cable directly (for small cable);
2.Slip onto marker strip(for large cable or cable bundles).
Material :Soft PVC. elasticity of indiameter.
| Item.NO. | Approx wire | markers | packing | |
| mm2 | ¦µ(mm) | |||
| EC-J | 2~8 | 0.5~7.0 | 0~9 A~Z + - | 500PCS/ROLL |
Cable Markers Strips
Material: Nylon66 94V-2.
Usage: Nylon Plate with cable tie fastening hole to accommodate marker pieces for easy identification of cable runs.
| Item.NO. | Length (MM) | Width | Available loaded quantity of FM-1 Cable Marker | |
| MS-65 | 65 | 9 | 9pcs | |
| MS-100 | 100 | 9 | 16pcs | |
| MS-135 | 135 | 9 | 23pcs | |
For the products photo pls visit our website or send mail to us check,
