| 原産地: | 中国(本土) | コンダクターのサイズ: | 28-12awg | 銘柄: | zhongbo端子ブロック | 接触の数: | 2-24 p | モデル番号: | ZB-300R 5.0端子ブロック | タイプ: | terninalブロック | 色: | グリーン | 性別: | 女性 |
包装
| 包装: | 輸出標準梱包端子ブロック |
1. BRIEF INTRODUCTION
1. Closed screw pilot holes to ensure ideal screwdriver operation .
2. For a plurality of cross-sectional level of terminals equipped with a unified attachments,
such as the end plates, packet separator.
3. Potential distribution through a fixed bridge or insert line access terminals central cavity
side plug -in bridge .
4. We are specialized in PHOENIX types & Weidmuller types Rail Mount Terminal Blocks.
2. PARAMETER
ZHONGBO New Copper Screw Terminal Connector
PCB Connectors Blocks Pins
Pitch | 5.0mm |
Poles | 2P-24P |
Screw | Steel,Zinc plated |
Pin header | Brass,Tin plated |
Wire cage | Brass Ni plated |
Housing | PA66, UL94V-0 |
Spec data
Rated voltage | 150V(UL) |
Reated current | 6A |
Withstanding voltage | AC1250V/1Min |
Wire range | 24-12AWG |
Temperature range | -40°C~+105°C |
Max Soldering | +250°C for 5 sec |
Torque | 0.1Nm(0.88lb.in) |
Strip length | 5-6mm |

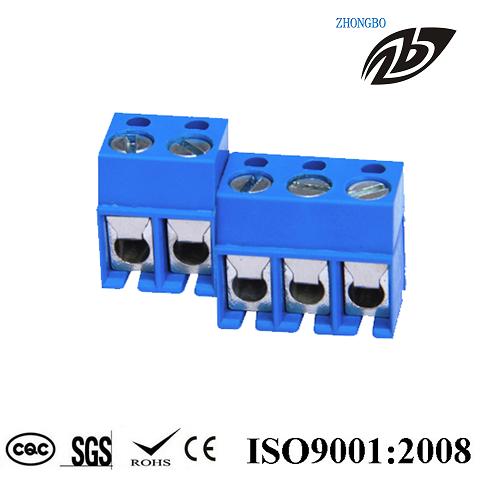

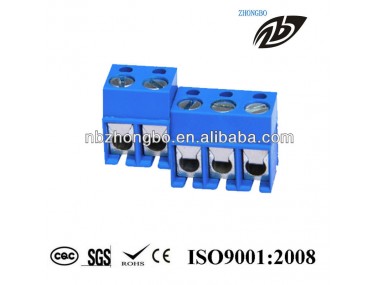

3. PRODUCT SHOW
-------------------In-Kind Shooting--------------------------
Our company mainly produce terminal blocks,electric plug ,power cord ,extension cord . We would like to supply high-class products and satisfy every customer's needs. Also we can provide customized products.
Warmly welcome your visit and cooperation sincerely!
