• ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス-ターミナルブロック
    商品番号: 10360344
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) コンダクターのサイズ: 21 - 30 AWG 銘柄: utl
    モデル番号: ピンコネクタMU1.5H3.5 (3.81) pcbマウントネジエレクトロニクス端子 タイプ: PCB タイプ: ピンコネクタMU1.5H3.5 (3.81) pcbマウントネジエレクトロニクス端子
    の承認: ce ul vde rohs inflammabilityクラス: ul94 vo 断熱材: pa66
    moq: 小さな試験順序は利用できる ロゴ: utlまたはカスタマイズ 供給タイプ: oem、odmなど
    動作温度: - ℃〜+ 120°c ネジ: ターミナル: 真鍮錫メッキ

    包装

    包装: 標準的なピンコネクタmu1.5h3.5( 3.81) pcbマウントネジ端子エレクトロニクス輸出パッケージ



    Product Description
     Pins connector MU1.5H3.5(3.81) pcb mount screw electronics terminal blocks
    General Product Information
    Item number:MU1.5H3.5(3.81)
    Pitch:3.50(3.81)mm
    Approval:CE,UL,RoHS
    Voltage:300V
    Current:15A
                 Connection Capacity:           0.14-1.5 mm2(Strand)/0.14-1.5 mm2(Solid)
    Torque:       0.22-0.25 N*m
         Stripping Length:          5.0mm2
    Material:       PA UL94 V-0

    Contact/Screw:

    Brass/Steel

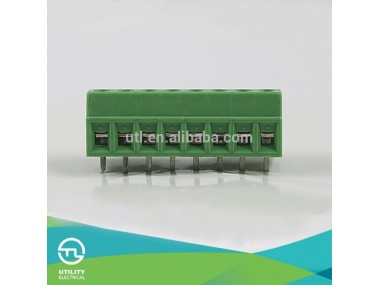

    Product Photo

    Product Photos

       pins connector MU1.5H3.5(3.81) pcb mount screw electronics terminal

      ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス仕入れ・メーカー・工場 ピンコネクタmu1.5h3.5( 3.81) pcbマウントネジターミナルブロックulvde承認エレクトロニクス

    FAQ



    FAQ

    Q: What are the proper Torque Values for Terminal Blocks?

    A: The torque depends on the type and size of screw/hardware used in the terminal block.  Torque values can be found on our spec sheet.



    Q: What are the proper using conditions and temperature for the Terminal Blocks?

    A: For terminal blocks made from plastic, conditions with strong acid, alkali or greasy, or the rate of humidity is more than 60% should be avoided.  Temperature should be within -40°C~105°C, and do not use them in frozen or dew formed condition.



    Q: How can I get your quotation?

    A:  Please provide us informations as below:

         1. Item Number.

         2. Quantity.

         3. Company Profile (Name, Tel, Fax, Address, and Webpage)

         4. Any Other Relevant Details.



    Q: How long is the lead time after placing the order?

    A: Lead time depends on a number of factors, such as the stock and production status.  Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.



    Q: How long does the delivery time take?

    A: We send our goods from Zhejiang, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference. Express Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on Logistic Schedule after remitting the Payment.



    Q: Which type of terminal block should I choose?

    A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected.  In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)?  Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)?
