原産地: | 中国(本土) | コンダクターのサイズ: | 1- 5 AWG | 銘柄: | 正徳プラスチック | 接触の数: | 11 - 20 | モデル番号: | TBS-6A | タイプ: | ヒューズのブロック | 素材: | pa、 pe、 pp | 認証: | ce、 rohs | タイプ: | h、 u (w)、 12v (f) | 色: | ホワイト |
包装
包装: | に従って顧客の要件 |

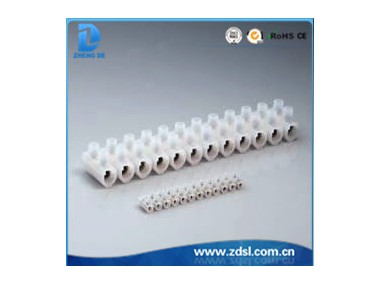

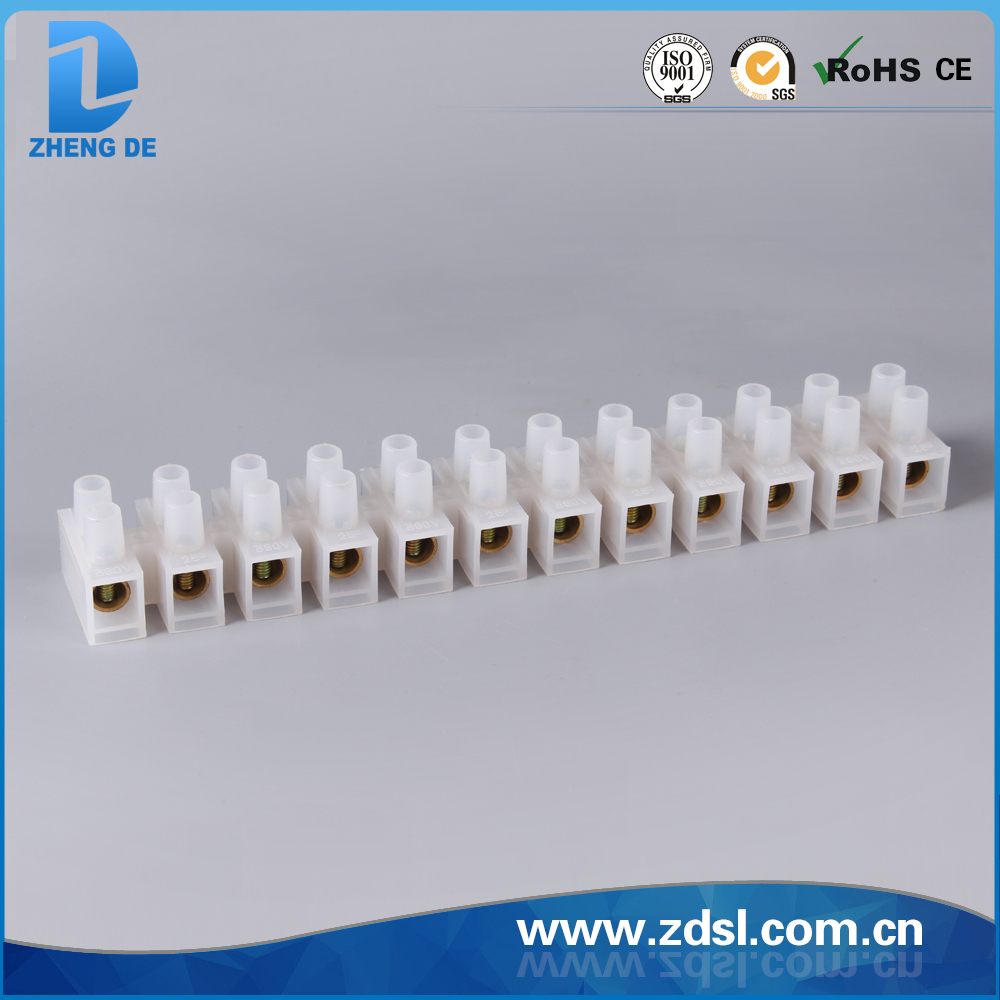

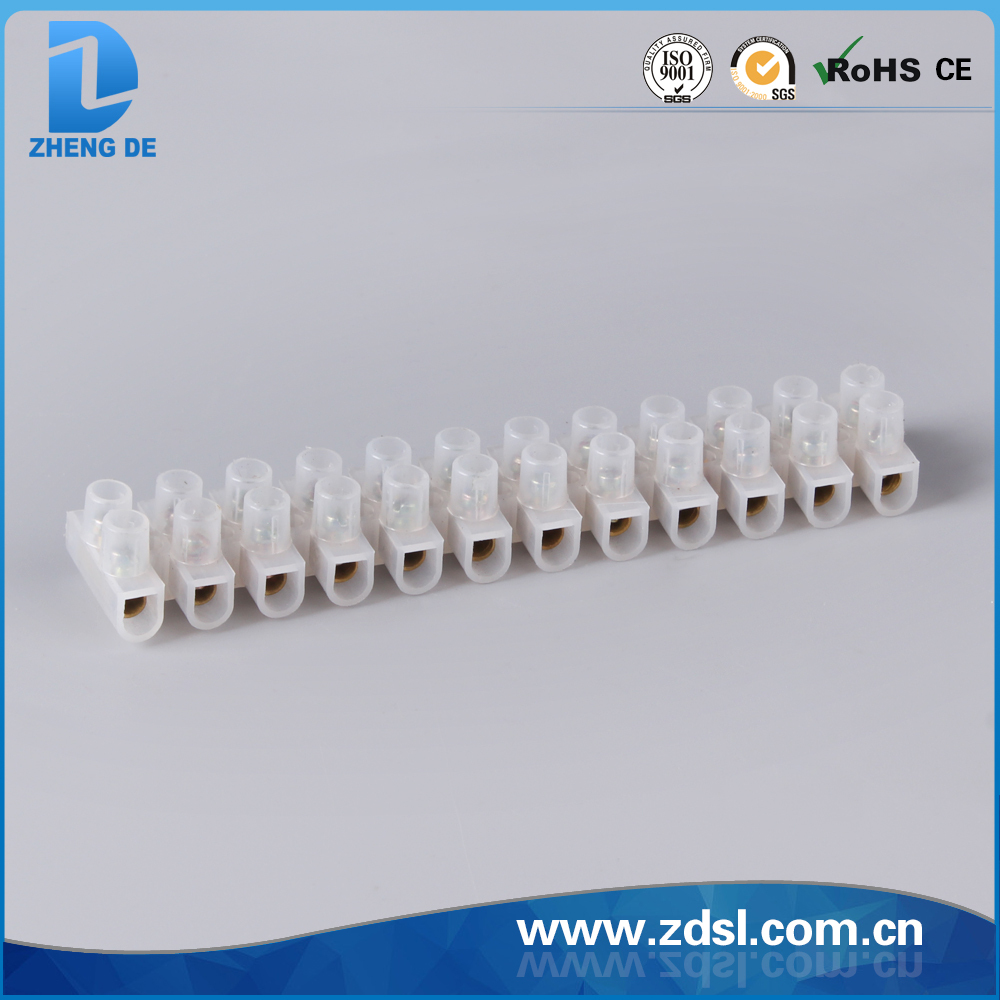

China Wholesale White PVC Terminal Blocks
Product DescriptionTerminal Blocks
Material: | PA, PE or PP |
Type: | H, U (W), V (F) |
Standard: | CE, RoHS environment protective |
Color | white |
Packaging | 10pcs/heat shrinkable packing |
Terminal Blocks Sizes
ITEM.NO. | L | W | H | A | B | mm2 | VOLT | AMP | PACKING |
TBS-3A | 90.3 | 15.5 | 10.8 | 6 | 8 | 4 | 400V | 3A | 10PCS |
TBS-6A | 110.7 | 15.5 | 12.5 | 6.5 | 9.5 | 6 | 400V | 6A | |
TBS-10A | 117.5 | 20 | 15 | 8.4 | 10.5 | 10 | 400V | 10A | |
TBS-16A | 137.5 | 22 | 17.0 | 10.3 | 12 | 12 | 400V | 16A | |
TBS-20A | 155 | 25 | 19.2 | 11.5 | 13.5 | 14 | 400V | 20A | |
TBS-30A | 166.7 | 25.5 | 20 | 12 | 14.5 | 16 | 400V | 30A | |
TBS-60A | 188 | 29 | 23.5 | 13.5 | 16.5 | 25 | 400V | 60A | |
TBS-80A | 205 | 33 | 27 | 15 | 17 | 35 | 400V | 80A | |
TBS-100A | 250 | 46 | 31 | 22 | 21 | 40 | 400V | 100A |
