| 原産地: | 中国(本土) | コンダクターのサイズ: | 11-30awg | 銘柄: | saip | 接触の数: | 1 - 10 | タイプ: | PCB | モデル: | 欧州と私たちのタイプ | 証明書: | ceおよびul | 保証: | 3年間 |
包装
| 包装: | 標準的な輸出パッケージ |
Printed Circuit Board screw terminal block 2.5mm,European terminal block MU Series
Practical Features
Terminals with general-purposemounting feet,which enables quick installation on U shaped track NS35 and G shaoed track NS32;quick connect terminal block
Closed bolt leading hole will not only facilitate operation of screwd-rivers,also prevent the bolt from dropping out;quick connect terminal block
Electric potential distribution is realized by either connecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack;quick connect terminal block
General auxiliaries,such as end platem,segment spacer,and spacer ,are attached for terminal with multiple sections;quick connect terminal block
The insulating shell is made if imported engineering plastic-polyamide(Nylon)66,which is of high mechanical intensity,good electric property,and super flexibility;quick connect terminal block
Two ends on the top with white marking system to realize uniformed sign.quick connect terminal block
For the terminals appearance out-line from JXB-2.5 to JXB-10 are same,so the grouping or heater and other attachments could be universally usedqu
ick connect terminal block
Specification
| Part | Specification |
| End Plate | |
| Central Adapotor | Used at the center of terminal for transverse bridge connection,and screw head with insulated ring, which is drived into:2-digt,5-digt,and 10-digt |
| Side Adapotor | Full insulation in 2 digt.Full insulation in 3 digit.Full insulation in 10 digit |
| Cross Connection Adapotor | In 10 digit,detachable,with 10 screws,for cross connection by overleaping some terminals |
| Insulating spacer | For electric separation of two neighboring adaptors;they may be inserted afterwards, and not occupy any space of track |
| Segment spacer | For visual and electric separation between neighboring terminal groups |
| Test socket | To form a testing connection by using test plug |
| Test plug | To form a testing connection by using test socket |
| Marking bar | Two character styles,with horizontal and vertical arrangements,ten socket. |
| Mark clip | for identification of terminals insert to terminal fastener,with adjustable height and writing area of 44x7mm |
| Terminal fixed component | mark clamp and marl strip could be blocked onto it to mark it,additionally,it could be used as fixed component to terminal row's termination |

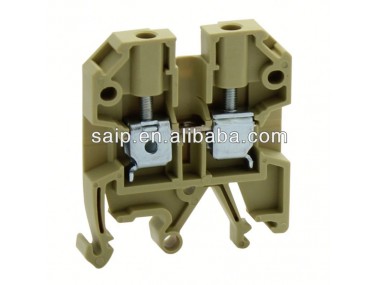

Product Detail
quic
k connect terminal block
