| 原産地: | 中国(本土) | 適用: | オーディオとビデオ | 銘柄: | daytai | モデル番号: | 75オームfタイプターミネーター | タイプ: | F | 帯域幅: | 0〜1000 mhz | インピーダンス: | Ω | 素材: | 真鍮、ニッケルメッキ |
包装

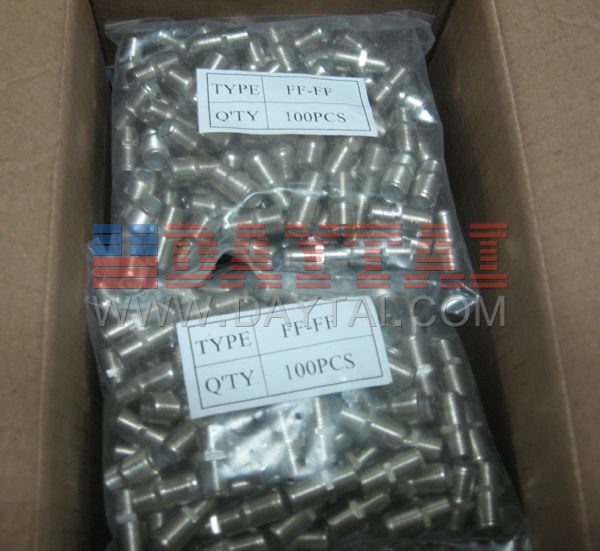

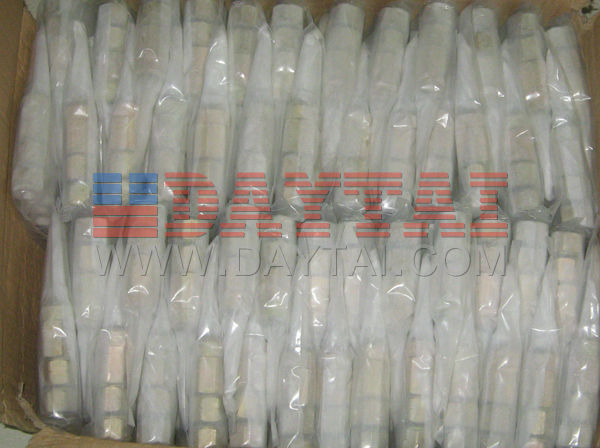

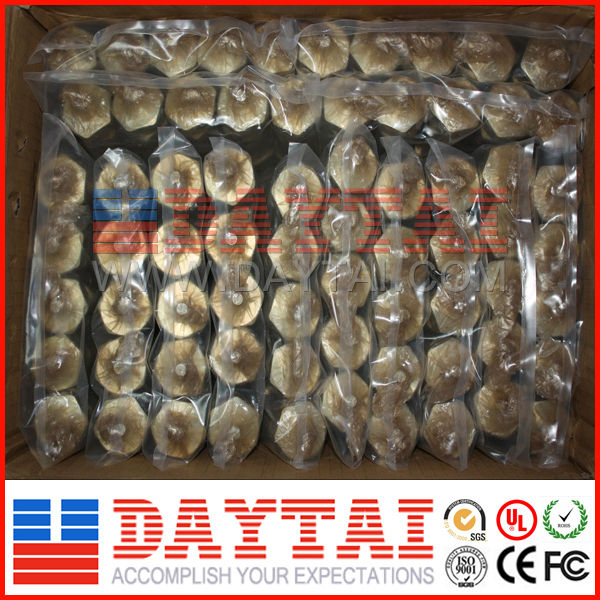

| 包装: | Pc5~100/polybag、 500~2000pcs/ctn |

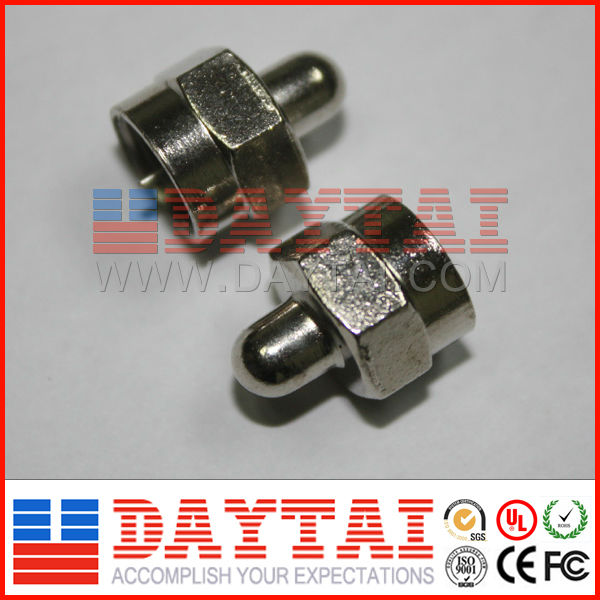

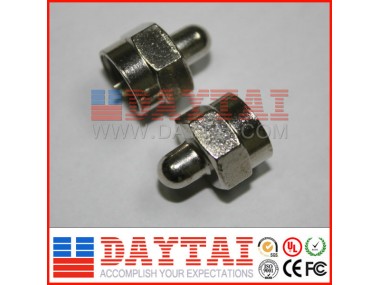

Product Features
1,Used to terminate unused ports reducing reflections
2,Versions available to meet every requirement
3,Precision high return loss version ensures the most consistent impedance match possible
4,Prevents signal ingress and egress
5,Reduces water migration into open port
CATV Terminator Technical Characteristics:
Frequency Range | DC~1000MHz |
Working Voltage | 335V max |
Withstand Voltage | 750V rms |
Contact resistance | |
Center Contact | ≤ 10 mΩ |
Outer Contact | ≤ 5 mΩ |
Insulation resistance | ≥ 1000 MΩ |
Durability(mating) | ≥500(cycles) |
Temp.range | -50~+60°C |
