DEscriptION

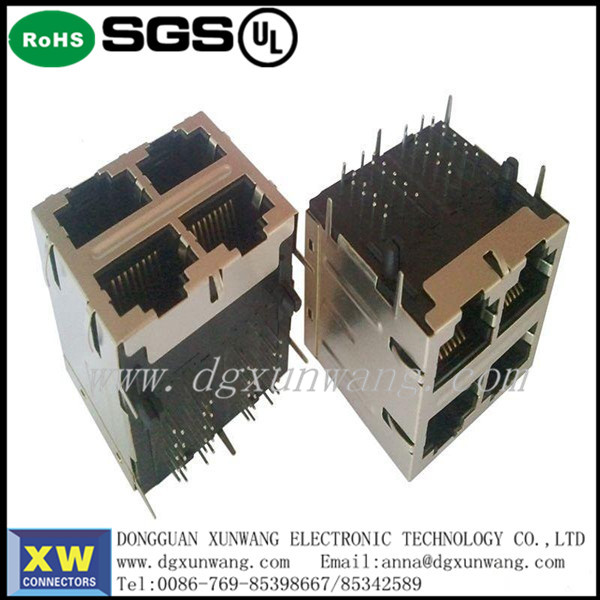

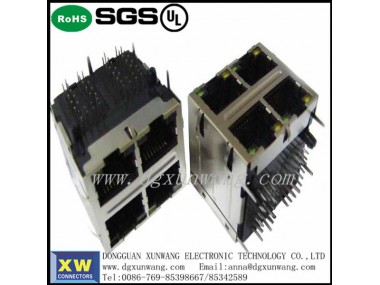

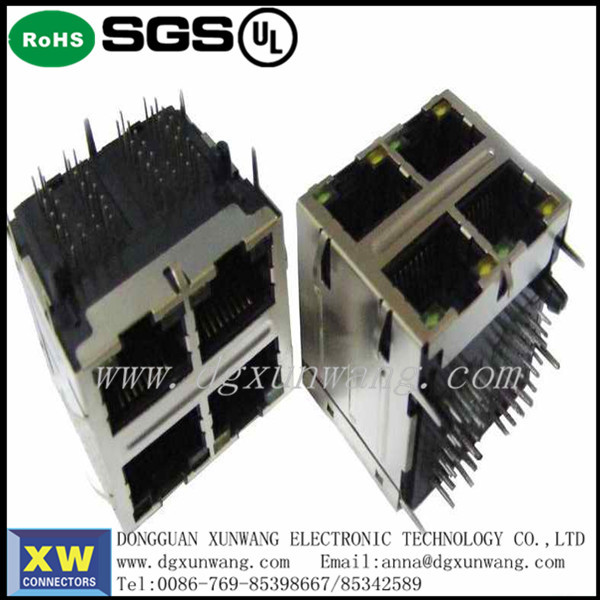

RJ45 With internal Magnetics Connector

DonGGUAN XUNWANG ELECTRonIC CO.,LTD Our surface mount, low profile RJ45 connectors with integrated magnetics are designed and manufactured to comply with IEEE802.3 and ANSI X3.263 standards. They are widely used in PC card / Notebook applications, wireless cards, network exchangers, networking set-up boxes, routers, VOIP, terminal communication units, PC main boards and similar telecommunication uses for 10/100/1000 base t gigabit Ethernet applications. RJ45 shielded connectors available in single port, 1*2 1*4 1*6 1*8 2*1 2*2 2*4 2*6 and 2*8 configurations and many come with led options.

ELECTRICAL

Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

High performance for maximum EMI suppression

350uH minmum OCL with 8mA bias current

1.Current Rating

1.5 amps

2.Voltage Rating

125vac

3.Insulation Resistance

500 MΩmin

4.Contact Resistance

30 MΩmax

5.Withstanding Voltage

AC 1500V RMS 50Hz or 60Hz 1 min

Instertion Loss:

-1.2dB Maximum @100KHz-100MHz

Return Loss:

-18dB Minimum @1MHz-30MHz

-14dB Minimum @30MHz-60MHz

-12dB Minimum @60MHz-80MHz

Common Mode Rejection:

-30dB Minimum @1MHz-100MHz

Cross Talk:

-30dB Minimum @1MHz-100MHz

MECHANICAL

1.Insertion Force

2 CONTACTS....350g   4 CONTACTS….500g   6 CONTACTS….750g

8 CONTACTS….900g   10 CONTACTS....1050g

2.Retention Strength

7.7KG.F min between jack and plug

3.Durability

800 mating cycles min

MATERIAL

1.Housing

ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2.Contact Wire

Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel

3.Shield

0.20~0.25mm thickness brass with tin plated

4.Gold Plating

3u inch,6u inch,15u inch,30u inch,50u inch

5.LED Specification

Standard LED Color:

LED Wavelength:

Forward     (V MAX):

Typical (V TYP):

Luminous Intensity:

Green

560-580 nm

2.5V

2.1-2.2V

9-25 MCD

Yellow

580-610 nm

2.5V

2.1-2.2V

9-30 MCD

Orange

580-610 nm

2.5V

2.1-2.2V

50-100 MCD

LED intensity/wavelength measured with Photo Research PR-650 Colormeter

With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)

6.RoHS peak wave solder

RoHS peak wave solder temperature rating 240°C±5°C

ENVIROMENTAL

Operating Temperature:

-40°C to 85°C

Working Temperature

-40°C to 85°C

APPLICATION

NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK

STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
