| 原産地: | 中国(本土) | 銘柄: | JM | プロセスタイプ: | パルプの鋳造物 | カスタムオーダー: | 受け入れなさい | タイプ: | 皿 | 材料: | ペーパー | 使用: | 卵 |

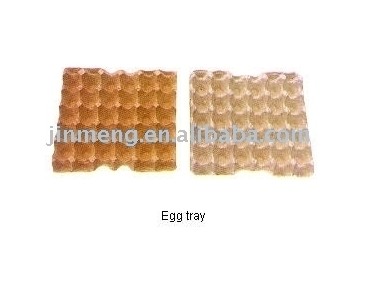

(1) Agricultural pulp trays for packing of fruit, eggs and earthenware bowls
(2) Industrial pulp trays for packing of bottles, electrical appliances for the farming industry, mobile phones etc.
The Pulp Tray Machine replaces the traditional plastic foam packing materials, which caused much white pollution.
It successfully solves the white pollution caused by traditional EPS foam packing, and raises the quality of the inner lining packaging of both fruits and industrial products. It has a positive effect on the world wide call for green packaging material, and lays the basis for the export of our domestic fruits and industrial products, at the same time raising the competitiveness of the Chinese fruit and industrial on the world market.
Equipment of Main Technical Parameter
ZMZ-20 Pulp Tray Production Line
| 1equipment capacity 120 KW | 5vacuum pump : 20.6 m3 /min |
| 2hydropupler :1m3(one) | 6heat conduction boiler :1 ton |
| 3multi- fibre separate machine :11 KW ( one ) | 7air compressor : 2.2 m3/min |
| 5ZMZ-20pulp tray machine ( one ) |
ZMZ-20 Pulp Tray Production Line
Fruit tray production capacity : 25 -35 thousand piece/ per day,egg tray capacity 35-50 thousand piece/ per day, with highly automatic, quickly speedy, stable quality, fewer workers
ZMW-8 Pulp Tray Production Line
| 1equipment capacity 70 KW | 4ZMW-8 pulp tray machine (one) |
| 2hydropupler : 0.5m3(one) | 5vacuum pump : 10 m3/min |
| 3multi- fibre separate machine :7.5 KW ( one ) | 6air compressor : 1m3/min |
Technologic process
Waste paper→ hydropupler → mix pulp →shaping machine → shape→ face lifting →dry machine → finished product
After-sales service
Our company gives lifetime technical service, with a guarantee period of 6 months. We will provide technical training for customers in operation, maintenance. Honesty and Credibility are our principles in business.
