| 原産地: | 中国(本土) | 銘柄: | YC-MESH | モデル番号: | YEY-10 | 織り方のタイプ: | 平野 | 網の計算: | 12- 160 | 単繊維様式: | はい | 印刷: | ポリエステルスクリーンの印刷 | 材料: | 100%年のポリエステル | 伸縮性: | 低い | 色: | 赤く、黄色、緑、青い eの白 |
包装
| 包装: | 顧客の要求の標準的なパッキングまたは |

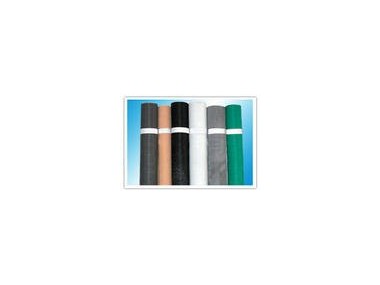

Polyester Bolting Cloth/Printing Screen
Screen printing mesh
Printing mesh
Material: stainless steel wire,polyester etc.
Specification: width: 300mm-3200mm
Mesh:20-420
Color: white,yellow, black,red etc
Application: widely used in printing,platemaking,filtering in the fields of electron, textile,ceramics,glass and filtering usages in the industry of space flight,oil etc.
Specification (cm) | Mesh Count / Inch | Wire Diameter (um) | Width of Mesh-opening(um) | Open Area(%) | Suggestion Highest Tension (N) |
8T | 20 | 350 | 900 | 52 | 66 |
10T | 25 | 250 | 700 | 49 | 66 |
15T | 38 | 250 | 514 | 52 | 61 |
24T | 60 | 150 | 267 | 41 | 56 |
32T | 80 | 100 | 213 | 46 | 54 |
40T | 100 | 80 | 170 | 46 | 37 |
43T | 110 | 80 | 153 | 43 | 35 |
48T | 120 | 70 | 134 | 60 | 47 |
54T | 137 | 64 | 125 | 44 | 40 |
61T | 155 | 64 | 100 | 37 | 41 |
64T | 160 | 64 | 92 | 35 | 42 |
68T | 175 | 64 | 83 | 32 | 40 |
72T | 180 | 55 | 84 | 37 | 38 |
77T | 195 | 55 | 75 | 33 | 33 |
80T | 200 | 48 | 77 | 38 | 34 |
90T | 230 | 45 | 72 | 42 | 30 |
100T | 250 | 40 | 61 | 37 | 32 |
110T | 280 | 40 | 52 | 33 | 34 |
120T | 300 | 34 | 47 | 32 | 34 |
140T | 350 | 34 | 37 | 24 | 33 |
