| 原産地: | 中国(本土) | 銘柄: | zd | 適用: | 手動パッキング | モデル番号: | SJ-PP | 材料: | PP |
包装
| 包装: | ppstrapp、 木製ケースにパックするように、 その後容器に収め。 |

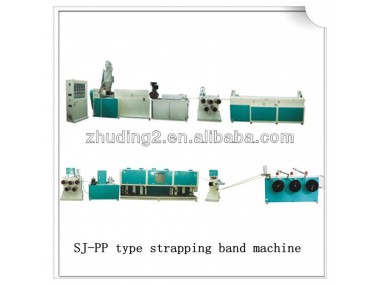

pp strap packaging machine
- Characteristics
The screw and the cylinder of SJ-PP type automatic or manual PP plastic strapping band making machine adopt excellent quality alloy steel done nitrogen treatment, which leads to long using life, good abrasion resistant and high output of extruding. This machine has advantages of auto temperature control, economical power consumption, high output and easy operation. It use PE powder, which is mainly Ι&ΙΙ grade recycing material, as it is main material. It does not need to fry or mix the raw material, but use it directly, during the process of producting the granules; it uses mineral powder instead of expensive master batch to produce auto strapping band, which improves the quality of the products and reduce the production cost. The machine has printing device.
Double lines, four lins, six lines, eight lines.
- Main technical Parameters
| Tyle/Item | Production output | Diameter of screw | Power of extruder | Power pf winding motor | Power of evatoration motor | Heating power | stretching power | weight | installation size(L*W*H) |
| SJ-PP80BΙ | 35-40kg/h | 80mm | 7.5kw | 0.8kw | 0.37kw | 14 | 5.5kw | 1800kg | 1500*700*1300 |
| SJ-PP80BΙΙ | 35-50kg/h | 80/60mm | 5.5,3.0kw | 0.8kw | 0.37kw | 20 | 5.5kw | 2100kg | 1500*1600*1300 |
| SJ-PP-80CΙΙ | 50-80kg/h | 80mm | 78.5kw | 0.8kw | 0.37kw | 15.2 | 5.5kw | 3200kg | 1600*700*1800 |
Mark:
Making With Filling Strap Band
Making Double Strapping Band
Specification of strap:
Machine use
Width: 9.0-15±0.5mm
Thickness:0.6-1.2±0.1mm
Manual use
Width: 9.0-15±0.5mm
Thickness:1.2 ±0.1mm
The Machine Can Be Made Accroding To Customer's Request
The machine can be made accroding to customer's request.
