製品情報
項目タイプ: 耐圧防爆ライト | 光源: 誘導ランプ | 入力電圧(V): 220 |
ランプ力(W): 125 | ランプの光束(lm): 11250 | ランプの明るい効率(lm/w): 90 |
CRI (Ra>): 85 | 色温度(CCT): 純粋な白 | 働く寿命(時間): 100000 |
IPの評価: IP65 | 認証: CCC, CE, EMC, エネルギー星, ETL, FDA, LVD, PSE, RoHS, SAA, UL | ランプボディ材料: アルミ合金 |
基礎タイプ: E27 | 原産地: 中国(本土) | 銘柄: jingji |
モデル番号: bad52 |
包装
包装: ベイ、 後、 ダンボール箱 |
仕様
125ワット防爆LED- 爆照明1.20以上- 年間経験2.プロフェッショナルなサービス3.環境4.長寿

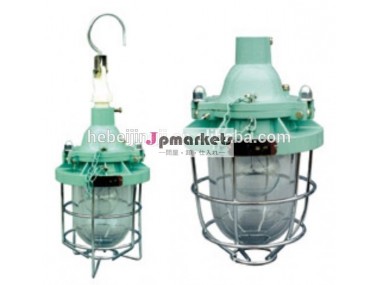

125w LED explosion-proof lighting

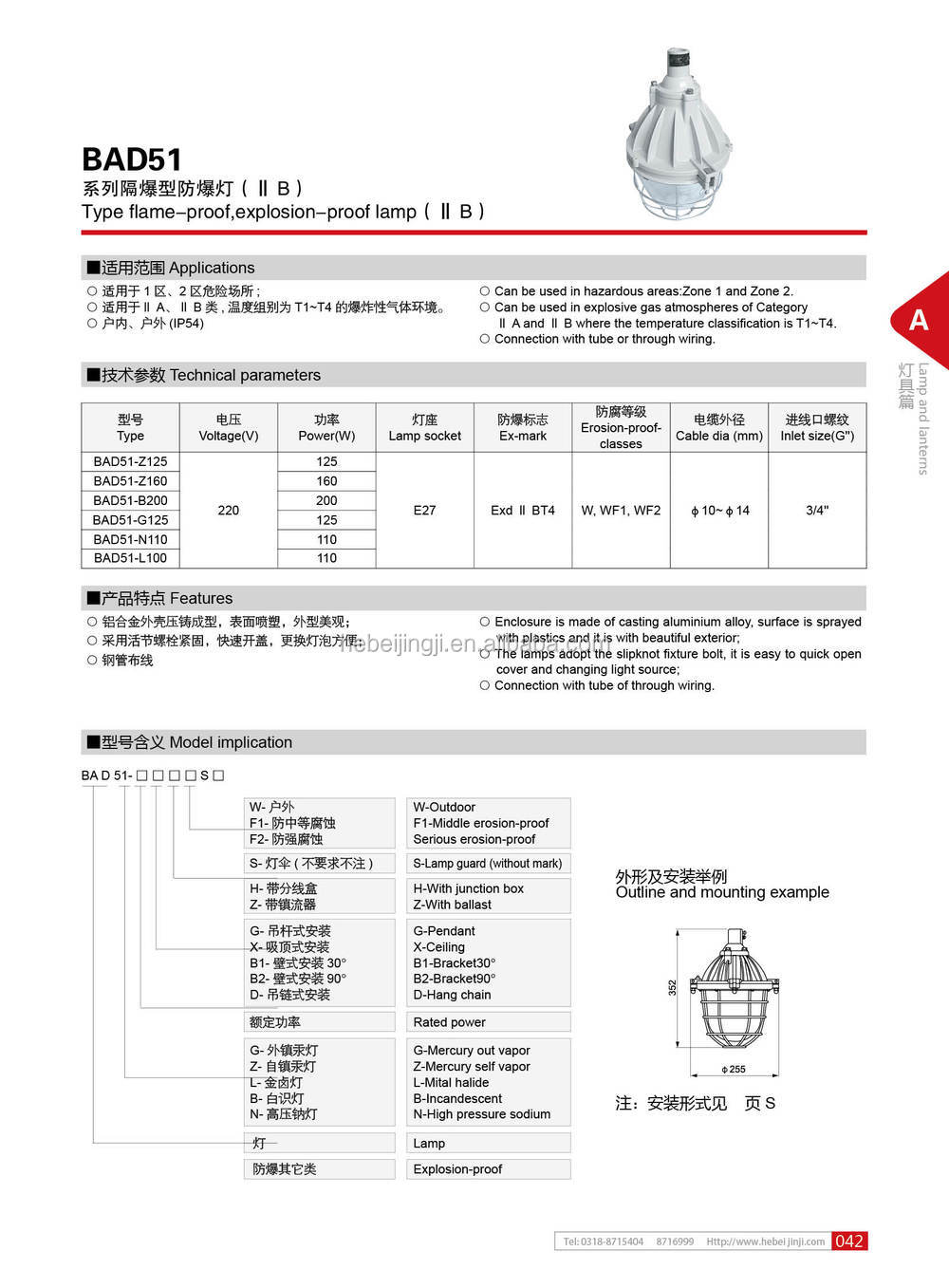

Specifications of explosion proof panel lighting
Implementing the standard | GB3836.1-2000,GB3836.2-2000,IEC60079 |
Explosion-proof mark | Exde II BT4 |
Rated voltage | AC 100-240v |
Protection grade | IP 54-67 |
Corrosion-proof grade | WF1 |
Lamp specification | E27 |
Inlet spec | G1/2"-G3'' |
Cable spec | Φ7~Φ55mm |
Supplied with source and power(length of supplied with light source ≤195mm) | |
Incandescent lamp | 10-500W |
Self-ballasted mercuty lamp | 10-160W |
Hi-pressure mercury lamp | 10-125W |
Hi-pressure sodium lamp | 10-110W |
metal hailde lamp | 10-100W |
Feature of explosion proof lighting
1.Enclosure is cast with aluminium alloy,surface is sprayed with plastic, fine outline,outer fasteners are made of stainless steel; | |
2.The transparent parts are made of toughened glass,glare proof desing; | |
3.Lamp body and outlet are connected without wire,which is convenient for installation and maintenance; | |
4.Ballast and triggetare built in the lamp; | |
5.Wiring with steel tube or cable |
Applicaion of explosion proof lighting
YL led explosion proof light can applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone II Hazardous Locations and IIA, IIB, IIC explosive gas atmosphere.
Packaging & Shipping
Packaging and shipping
Delivery term: FOB, EXW are available. |
Payment term:30% T/T advance, 70% balance before shipment. Western unio or paypal is acceptable for samples orders. |
Lead time: 7-10 working days |
Logistics: Best service forwarder with good price, long term partner. |
Packaging : Package in carton with good inner supporting package with polyethylene bubble; 1pcs/ctn independent packing; wooden |
Our Services
our services
1.Due to our years of ODM/OEM experience in project lighting fixtures developing and self-ability,We can provide high cost performance LED project lighting products for our dear customers. |
2.Our mainly products in Smart LED project light,Can also provide customize services according to your requests to develop your suitable smart led lighting fixtures. |
3.We are manufacturer self-producing,self-marketing,We can help customer slove any kinds of technology problems and devoted ourself to provide more professional and efficient service to all our customers. |
4.Reply your inquiry in 24 workin hours |
5. Experienced staffs answer all of your question in fluent English |
