製品情報
| サイズ: 1/2‘’-80‘’ | 材料: 炭素鋼 | 標準: JIS |
| 原産地: 中国(本土) | モデル番号: PL-068 | 銘柄: Liyang |
| 標準的なか標準外: 標準 |
包装
| 包装: Using Veneer Case or Plywood Case Of Outside, Linoleum And Plastic Cloth Of Inside Dampproof, or other methods according to the requirements of our clients |
仕様
Material:Carbon Steel,Stainless Steel,Alloy Steel
Standard:JIS
Face form:RF,FF,RTJ
Technical:Forged
Ultrasonic Testing

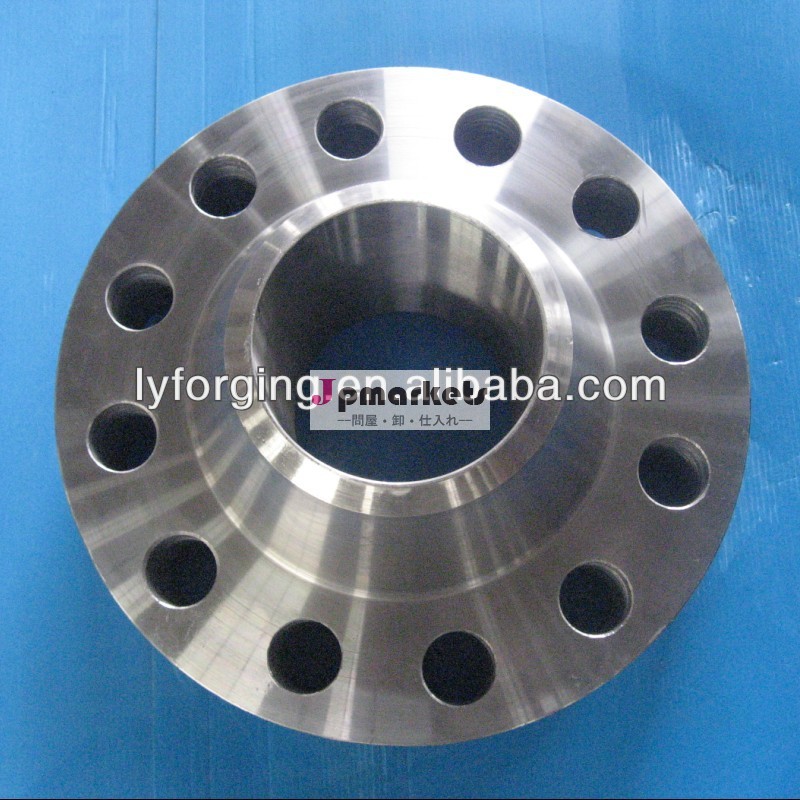

Our company(Shanxi Liyang Forging ) offers a wide range of flanges like PL, SW, BL, WN,SO,LJ,Threaded Flange etc., which is precisely engineered in accordance with international quality standards totally. These flanges are highly durable, corrosion resistant and reliable. Our range of flanges finds application in industries like engineering, construction, chemical, oil field and power plant. We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
convenience for the customer:
- Our standard sizes in our store for your convenience.
- We have capabilities to manufacturer almost any size requested.
- Just contact us with your specifications for a quotation.
Type of Flanges |
Welding neck Flange | Slip on |
Blind flange | Long welding neck flange |
Lap joint flange | Socket welding |
Threaded flange | Plate flange/Flat flange |
Descri-ption of JIS Standard Flanges :
Product name: | JIS Flanges |
Standard: | JIS |
Material: | Carbon steel: ASTM A105,20#,Q235 etc. Stainless steel: ASTM A182 F304 , 304L, F316,316L etc. Alloy steel: STM A182 F1, F5a, F9, F11, F12 etc. Or as per customer’s special requirement. |
Size: | 1/2"-240" |
Face: | FF, RF, RTJ |
Pressure Class: | 5K,10K,10K、16K、20K etc. |
Surface treatment: | Black painting, anti-rust varnish, anti-rust oil or as per customer’s requirement. |
Packing: | Wooden case and wooden pallet. |
Others | We have professional flange production equipment in China, all of flanges are produced by ourself, so we can give you BEST price with BEST quality, hope we will co-operate with each other based on mutual benefits. |
Marks:Any non-standard size also can be made according to customer’s requirement. |
Standard: | American | ANSI B16.5 ; | Sealing surface form RF,FF,RTJ | 1/2"-24" |
ASME B 16.47 Series A(MSS SP-44); | 26"-60" |
ASME B 16.47 Series B(API 605); | 26"-60" |
AWWA C207 | 4"-120" |
German | DIN2630,2631,2632,2633,2634,2635, 2636,2637,2638,2501(WN) DIN2573,2576,2527,2655,2656(PL) DIN2566(TH) | 1/2"-160" |
British | BS4504 PN16,PN40/BS10 | 1/2"-60" |
Japan | JIS/KS5K,10K ,16K, 20K | 1/2"-60" |
Europe | EN1092 | 1/2"-160 |
Russian | GOST12820-80 | 1/2"-48’’ |
Marks:Any non-standard size also can be made according to customer’s requirement. |
Certificate: | ISO 9001:2008;OHSAS 18001;2007;PED 97,TUV |
NSPECTION:
Factory In-House Or Third Party.
Ultrasonic Testing.
