製品情報
| 製品のステータス: 在庫 | オペレーティングシステム: Windows mobile OS | プロセッサのタイプ: ARM 9 |
| 様式: パームトップ・パソコン | 記憶容量: ≥ 256MB | スクリーン・サイズ: 3.2 inch |

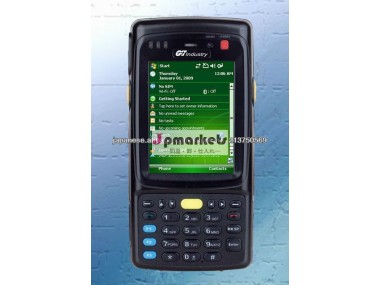

| 重量: 260g | 銘柄: GT-industry | モデル番号: I700-GW |
| 原産地: 中国(本土) |
包装
| 包装: 29x24x7 CM 1 unit |
仕様
I700-GW(BT,WIFI,GPRS, GPS,1D SCAN) CE&Rosh certificate Warranty 1 year
| Performance | ||
| Operating System | Microsoft Windows Mobile 6.1 | |
| CPU | ARM9（460MHZ） | |
| Internal Memory | 256MB Flash ROM + 128MB SDRAM | |
| Expanded Memory | SD card | |
| Battery | 3.7V 2000mAH Li-ion chargeable battery | |
| Adapter | Output: DC5V，600mA，Input: AC100~240V，50~60Hz | |
| Standby time | >300 hs | |
| Alert | AF speaker/vibrator/3-colour LED | |
| Wireless Communication | ||
| Wireless Voice Communication | 900/1800/850/1900MHZ | |
| Wireless WAN | GPRS/EDGE | |
| Wireless PAN | Bluetooth Standard V2.0 + EDR | |
| Wireless LAN | Wi-Fi 802.11 b/g | |
| Data Collecting | ||
| RFID reader-writer(optional) | Frequency:13.56MHZ Protocols:ISO/IEC 14443-A,ISO/IEC 15693 | |
| One dimensional bar code(optional) | Optic resolution | >4mil |
| Left-right shift visual angle | Vertical angle ±54° | |
| Environment light | Sunlight:7,0000lux | |
| Artificial light:420lux | ||
| Scan depth of field | 7-9.5cm（5.2mil），7.5-30cm(19.5mil) | |
| Scan frequency | 92 times(MIN), 104 times (normal), 116 times(MAX) per second | |
| upc bar code mending | Support(intelligent recognition function to broken upc) | |
| Scan angle | 54°± 3°(standard) | |
| Laser power | Class 2 (standard) | |
| Work current | <150 mA @3.3V(standard) | |
| Code supported | All standard 1D including GS1 Databa | |
| Extra functions | ||
| GPS(optional) | Position accuracy:10m | |
| Camera(optional) | 3.0MP | |
| Body | ||
| Screen | Size | 3.2" |
| Material/Lattice | TFT touch/QVGA(240320) | |
| Keypad | 30 keys(Side key+power key+keyboard) | |
| Qwerty(optional) | 45 keys(Side key+power key+keyboard) | |
| LED | Three colours:green, red and blue | |
| Size(L x W x H) and weight | 153 x 75 x 31mm 260g(depending on the actual mechanical parts) | |
| User environment | ||
| Working temperature | -10℃ ～ 50℃ | |
| Storage temperature | -20℃ ～ 60℃ | |
| Humidity | 5 ～ 95% (without moisture condensation) | |
| Static discharge | +/-15kV air discharge，+/-8kV touch discharge | |
| Industrial defending design | dro on the cement concrete ground many times from the height of 1.5m(5ft.), 10 times for each side/fall and roll 2000 times(50cm)/dustproof, waterproof, IP64 standard | |
| Development environment | ||
| Software development | Windows Mobile SDK | |
| Programming environment | Visual Studio 2005(support.NET CF 2.0) Visual Studio 2008(support.NET CF 3.5) | |
| Charging/PC interface | mini USB | |
