製品情報
| 条件: 新しい | 原産地: 中国(本土) | 銘柄: BeiFangJiChuang |

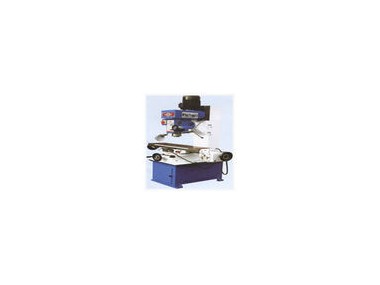

| モデル番号: ZX50cA drilling and milling machine |
The main technical parameters ZX7550 ZX7550C ZXD50 ZX50C ZX50F ZX50CA ZXTM40 ZX-20 ZX-16 Max drilling diameter (mm) 50 50 40 20 16 Milling maximum width (mm) 100 100 100 50 40 Milling maximum diameter (mm) 25 25 25 10 8 Bore diameter (mm) 120 120 100 Tapping maximum diameter (mm) M16 M16 M16 Spindle nose to table distance (mm) 140-440 38-430 140-600 70 × 120 83-380 Spindle speed range (rpm) 230-1825 115-1750 270-2400 115-1750 168-3160 250 × 3200 250-3200 Spindle travel (mm) 120 110 115 90 85 Table size (mm) 1000 × 250 900-240 800 × 240 500 × 200 420-155 Table travel (mm) 530-220 400-250 300 × 150 300 × 150 250-120 Dimensions (mm) 132 × 138 × 207 (211) 145 × 138 × 207 (211) 122 × 87 × 210 (215) 135 × 87 × 210 (215) 110 × 104 × 187 120 × 104 × 187 28 × 67 × 120 68 × 58 × 110 Motor Power (KW) 0.85/1.5 1.5 0.85/1.5 1.5 0.75 0.37 Net Weight (Kg) 750 460 510 475,520,430,190,120
