製品情報
| 原産地: 中国(本土) | 銘柄: 迫 | モデル番号: Ski-e0d75ge-3000 |
| モータータイプ: 交流モーター | タイプ: acドライブ | 入力電圧範囲: 380v±15% |
| 入力周波数範囲: 47~63hz | 出力電圧範囲: 380~480v | 出力周波数範囲: 0-400hzの |
| 定格出力: 0.75キロワット( 1hp) | ドライバの電源: 2.6kva | 定格出力電流: 3.4a |
| モーター: 0.75キロワット | 寸法: 150*105*168mm |
包装
| 包装: カートン、 木材パッケージ |
仕様
1.Openループベクトル制御インバーター2.V/F制御ACモータードライブ3.Speed制御ACドライブ4.1HP (0.75KW) 380V~480V、0-400Hz

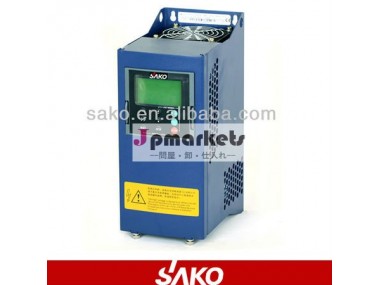

SAKOの真新しい設計
現在のベクトル制御ACモータードライブ
Protducts Item Descri-ption
スキー- E 18D5 Gの - 3000
1 2 3 4 5
注目:
1: 企業モードを表しなさい
2: European Styleの設計を表しなさい
3: 力18.5KWを表しなさい
4: Pと平均がタイプに送風し、ポンプでくんだら、一般目的を表しなさい
5: 3段階380Vの を
表しなさい
技術的なデータ
| 項目 | Item Descri-ption | |
| 入力 | Rated Voltage and Frequency | 400V/50Hz/60Hzの電圧: ±15%; 頻度: ±5% 200V/50Hz/60Hzの電圧: ±15%; 頻度: ±5% |
| Rated Voltage | Three Phase: 400V (proportional to input voltage) Three Phase: 200V (proportional to input voltage) | |
| 出力 | Rated voltage | Three-phase 0~input voltage VAC |
| Control Function | Control Method | SVPWM |
| Control Mode | V/F Control/Current Vector Control | |
| Torque Feature | With torque compensation and slip compensation、 start torque can reach 150% at 1.0Hz | |
| Frequency Control Range | 0.1~400Hz | |
| Frequency Accuracy (Temperature Changing)の | Digital Instruction: ±0.01% (- 10°C~+40°C) Analog Instruction: Max. Frequency x 0.2%Hz (25°C±10%) | |
| Setting Resolution | Digital Instruction: 0.01Hz; Analog Instruction: Max. frequency x 0.1%Hz | |
| Output Resolution | 0.01Hz | |
| Overload capacity | General Mode (G): 150% rated output current for 1 minute 送風機かPump Mode (P): 120% rated output current for 1 minute | |
| Frequency Setting Signal | 0~10V (20kΩ)、0~20mA (250Ω)、4~20mA (250Ω) | |
| 加速かDeceleration Time | 0.0~3600 seconds (加速またはdeceleration time shall be set respectively) | |
| 性能 | Braking Torque | ab0ut 20% without braking resistor、 and ab0ut 125% with braking resistor |
| V/F Mode Classes | 12 preset V/F mode and programmable V/F mode | |
| Instantaneous Over Current | General Mode (G): ab0ut 250% AC motor driver rated current 送風機かPump Mode (P): ab0ut 200% AC motor driver rated current | |
| Over Load | General Mode (G): 150% rated output current for 1 minute before sliding stop 送風機かPump Mode (P): 120% rated output current for 1 minute before sliding stop | |
| Over Voltage | Motor stops sliding when rectifier output voltage exceeds 410V (200V class) /820V (400V class) | |
| Under Voltage | Motor stops sliding when rectifier output voltage drops down to 190V (200V class) /380V (400V)の or lower | |
| Instantaneous Power-Failure Compensation | Instant stop when instantaneous power-failure lasts for 15ms or longer. (Default setting) According to standard setting、 if the power -failure is shorter than 2 seconds、 continue operation. | |
| Heat Sink Overheat | Thermistor protection、 takes effect when temperature exceeds 105Ω | |
| Speed Loss Protection | Speed loss protection during accelerationの deceleration and constant speed operation | |
| Grounding Failure | Electronic circuit protection、 takes when leakage current reaches 50% of AC motor driver rated current. | |
| 環境 | Environment Temperature/Humidity | - 10°C~+40°C、 90%RH and lower (no dewing) |
| Operation Location | Altitude below 1000Mのindoor use (no corrosive gas、 liquid、 no dust) | |
| Storage Temperature | - 20°C~60°C | |
| 振動 | Below 20Hz 9.8m/s2 (1G) 、 20~50Hz 5.88m/s2 (0.6G) | |
| 証明書 | セリウムの | |
アプリケーション領域
機械工、石油化学製品 mining、 electronics、 me-tallurgy交通機関、building materials、市、波形を付けられた印字機、織物機械、printing and dyeing機械、numerical control machine tool central air conditioning、Injection machine paper makingデジタル旋盤機械空気圧縮機、fan and pump、 blower、成形機、冷却装置、外的なエアコン、 wastewater treatment system、water supply system for large buildings、 public water supply system and other industries and fields me-tal processing。
