製品情報
| 最大枠直径: 36" | 最大の枠幅: 17" | 電源: 110 V / 220 V |
| 均衡速度: Less than 200 rpm | 最大ホイール幅: 65 kg | 原産地: 中国(本土) |
| 銘柄: Sajam | モデル番号: WB301G |
包装
| 包装: Packing Size: 97* 77* 115 cm Shipping weight: 135 kg |
仕様
1. Ease of operation. 2. Quick manual data input. 3. Built in self calibration.
1. Ease of operation.
2. Quick manual data input.
3. Built in self calibration.
4. Balancing modes dynamic, static, ALU1, ALU2, ALU3.
5. Balancing accuracy .035 ounce/ 1 gram.
6. Quick nut 36mm or 40mm.

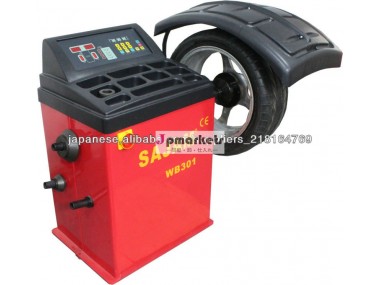

| WB301G | Highly accurate electronic wheel balancer, manual data input, available with 40mm or 36mm spin shaft |
| Electrics | Available in 100V-120V * 220V-240V |
| Product Application | Wheel balancing of most passenger car and light truck wheels and motorcycle or ATV wheels with optional adapter kits |
| Max. Tire Diameter Capacity | 36" (914mm) with closed hood |
| Max. Tire Width Capacity | 17" |
| Rim Diameter Capacity | 10" to 24" |
| Min./ Max. Rim Width Capacity | 1.5" to 17" |
| Max. Wheel Weight Capacity | 143 LBS / 65 kg |
| Balancing Speed | Less than 200 RPM |
| Tire/ Rim Balancing Modes | Dynamic, Static, ALU1, ALU2 , ALU3 and ALUS |
| Cycle Time | 6 to 15 seconds- wheel weight dependent |
| Data Entry | Easy to use and read digital touch keypad |
| Calibration | Semi-automatic with user assisted data input |
| Automatic Start | Factory set to start upon wheel guard close (feature is user defined) |
| Brake Type | Resistor operated with manual foot brake |
| Foot Brake | Standard, mechanical to hold waheel in position |
| Weight Selections | User defined touch key on display panel (ounce or gram) |
| Balancing Accuracy | 0.035 ounce/ 1 gram |
| Shipping Weight | 135 kg |
| Shipping Box Dimension | 97* 77* 115 cm |
