電圧: | 110/220v60/50hz50w | 原産地: | 中国(本土) | 寸法 (L*W*H): | 510310x420mm | 銘柄: | tamprinter | モデル番号: | Tm- ミニ | 重量: | 45kg | 自動等級: | 半自動 | タイプ: | パッドプリンタ | 色及びページ: | 単一色 | 版のタイプ: | 平面プリンター | 条件: | 新しい | 認証: | ce | 使用法: | カードプリンター, ペーパープリンター, 管プリンター, 布プリンター, ラベルプリンター, ビルプリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | プレートのサイズ: | 100100mm | ワークテーブルのサイズ: | 200120mm | 最大印刷直径: | 薄暗い80mm | 最大印刷速度: | 2100pcs/h | 空気消費量: | リットル91/min( 5bar) | パワー: | 110/220v60/50hz50w | 寸法: | l510w310xh420mm | 重量: | 45kg |
包装
包装: | 合板ケース木製/場合/必要に応じて |

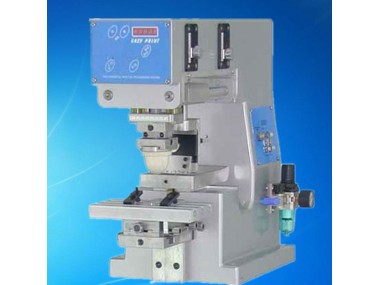

Technical parameter:
Model No. | TM-MINI |
Plate size | 100100mm |
Worktable size | 200120mm |
Max printing diameter | DIM 80mm |
Max printing speed | 2100pcs/h |
Air consumption | 91 litre/min (5bar) |
Power | 110/220V 60/50Hz 50W |
Dimensions | 510310X420mm (LXWXH) |
Weight | 45kg |
Features:
1.SCM IC complile action program, kinds of printing model options
2.Auto 4-digit counter built-in, and stat. Printing quantity
3.Airframe adopts coin alloy, and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently
6. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
Advantages:
1.The distance of scratching ink is adjustable
2.It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification
3.The speed of all the cylinders have an independent regulator intortum
4.The machine is running fast, it is steady and low voice.
Warranty: 3 years
Other Info.
Price Terms : FOB Shenzhen or Guangzhou
Payment Terms : Western unio ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Ship Date:
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
