| 原産地: | 中国(本土) | 電圧: | 220v | 銘柄: | 常緑 | 寸法 (L*W*H): | 21801035x1540mm | モデル番号: | hg256 | 重量: | 1500 | 自動等級: | 自動 | タイプ: | オフセット印刷機 | 色及びページ: | 2色 | 全体のパワー: | 1.5キロワット | 認証: | iso | 使用法: | ペーパープリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 活版印刷 | 条件: | 新しい | グラフィックのマシン: | オフセット印刷機 |
包装
| 包装: | 強い木製ケース |

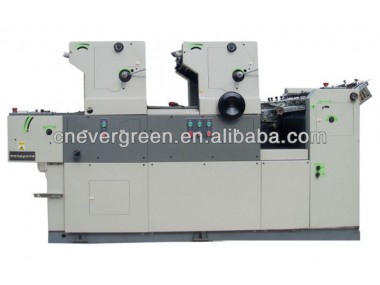

HG-247/256 Offset printing Machine(Double color)
HG247/256 Serious double color offset press adopts excellent water-ink system configure. Products printed by this machine whose register is accurate, net point is clear. It is suitable for printing kinds of colorful goods, such as labels, bills, bonds graph. It can use PS plate, zinc plate, watercraft plate.
Three advantage:
1. Plate roll and blanket roll press together automatically, and controlled by air pneumatic. It is reliability and stability.
2. The second group of ink-water part adopts screw, pull plate which assure put plates together quickly and accurate.
3. It equip automatic centralized oil system which achieve maintain and lubricate machine automatically.
Technical Parameters:
Item No. | HG247 | HG256 | Mark |
Max printing area | 450×345 | 544×380 |
|
Max paper size | 470×365 | 560×390 |
|
Paper weight | 28-250g/) | 28-250g/) |
|
Printing speed | 2000-7000sheets/h | 2000-7000 sheets/h |
|
Plate size | 470×390×0.15 | 560×420×0.15 |
|
Blanket size | 470×420×1.95 | 560×455×1.95 |
|
Quantity of Ink roll | Main systerm:14pcs3pcs near to plate×2 | Main systerm:14pcs3pcs near to plate×2 |
|
Quantity of water roll | 4pcs 2 pcs near to plate×2 | 4pcs 2 pcs near to plate×2 | Three ink two water 5pcs 2 pcs near to plate ×2 |
Power | Main motor1.5KW | Main motor1.5KW |
|
Voltage | 220V 50HZ | 220V 50HZ |
|
Machine weight | 1500 | 1700 |
|
Overall size | 2901(L)×900(W)×1500(H)(mm) | 2901(L)×1000(W)×1500(H)(mm) |
|
