主要な回路の評価の流れ: | 630a | 電気のタイプ: | AC | 原産地: | 中国(本土) | ポーランド人の数: | 3 | 銘柄: | zhso | 主要な回路の評価の電圧: | 600v | モデル番号: | Zslc2-e09 | 段階: | 3 |
包装
包装: | 標準的な輸出パッケージまたはあなたの順序として |
1.APPLICATION:
------------------------------------------------------------------------------------
LC2-K series of AC contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, toconnect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flashover design, with multi-function combination, small volume, and reliable performance. They are perfect replacement for France TE Lc1-K, LC1-E series products, can be widely applied to magnify/switch signal in micro-electronic interface.
2.SPECIFICATIONS
----------------------------------------------------------------------------------
Type | Rated operational current(380A) | AC-3use group | contact number(1) | |||
Control power KW | ||||||
220V | 380/415V | 440/500V | 600V | |||
ZSLC1-K06 ZSLP1-K06 ZSLC2-E06 ZSLC1-E06 | 6 | 1.5 | 2.2 | 3 | 3 | 3P+NC 3P+NO |
ZSLC1-K09 ZSLP1-K09 ZSLC2-E09 ZSLC1-E09 | 9 | 2.2 | 4 | 4 | 4 | 3P+NC 3P+NO |
ZSLC1-K09 ZSLP1-K09 ZSLC2-E09 ZSLC1-E09 | 12 | 3 | 5 | 5 | 5 | 3P+NC 3P+NO |
Type/Parameters | CSLC1-K06 | CSLC1-K09 | CSLC1-K12 | ||
AC-3use group rated working current A | 380V | 6 | 9 | 12 | |
660V | 5 | 7.5 | 10 | ||
Conventional thermal current (1th) V | 16 | 20 | 20 | ||
Rated working voltage(Ue) V | 380 660 | ||||
Rated insulation voltage(Ui) V | 390 |

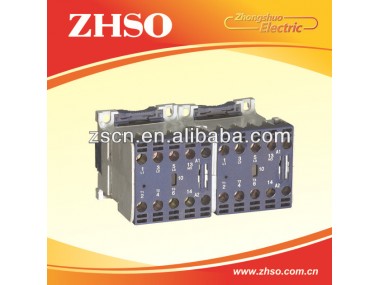

3.PICTURE SHOW
-------------------------------------------------------
5.PAYMENT AND SHIPMENT
----------------------------------------------------------------------
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback.
We will try our utmost to help you solve the problem. Your information for us will be protected strictly. Paypal, T/T, Western unio, MoneyGram , or other method.
Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST...
6.OUR CUSTOMERS
----------------------------------------------------------------------------
80% Percent of our products are widely exporting to Europe, North&South America, Asia.
We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.
7.about Us
--------------------------------------------------------------
Yueqing Zhongshuo Electronic Co.ltd is a professional manufacturer of contactor and situated in western Zhejiang.The company with modern testing method, profound technical strength , strong research and design ability ensure products constantly updating. The products have been sold from domestic to overseas more than 10 countries and regions win a good reputation in the market , both National and overseas.
