原産地: | 中国(本土) | 銘柄: | vios | モデル番号: | TMH8 | 最大トルク: | 119 | タイプ: | ピストンエアモーター | 平均空気消費量: | 148 | 無積載速度: | 1200 | 定格速度: | 800 | 作動圧力: | 0.63 | 定格電力: | 10 | 色: | 黒、 黄色、 顧客の要求に従う | 共通名: | ピストン空気圧モータ、 空気圧ピストンモータ | 速度比: | に応じてcusters'要件 | n. w。: | 75キログラム | gw。: | 84キログラム | パッケージ: | ウッドボックス | 梱包サイズ: | 455*418*420ミリメートル |
2015 Hot Sale High Quality
Cheaper Price Professional Service
TMH8 Piston Pneumatic Motor, Piston Air Motor
Working Principle:
TMH8 piston air motor is operated on the basis of the following principles. After entering into the air distribution system(valve core and valve sleeve), the compressed air is accordingly delivered into cylinders, expanding to push the piston reciprocating; the pistons then drive the shaft and crank journal reciprocation and finally output driving power.
Application places:
Widely used in mining, oilfields, constructions, smelting, paper making, pharmacy, chemicals, etc,. This motor is ideal mated driving machine for large-scale drilling machines.
Feacture:
1. Step less in speed, adjusting air volume to change rotate speed and power.
2. Change air-inlet and air-outlet direction to rotate and counter-rotate the motor in short time, with no impact and even not need to relieve the load.
3. The equipped anti-load function enables the motor to rotate at low speed when overload, and regain high speed when overload relived.
4. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
5. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.
6. High starting torque enables starting with load, fast and reliable to start and stall.
Technical data:
Working Pressure | No-load speed | Rated Speed | Rated Power | Air Consumption |
MPa | r/min | r/min | kW | L/s |
0.4 | 1000 | 690 | 5.5 | 96.2 |
0.5 | 1100 | 750 | 7.5 | 120 |
0.63 | 1200 | 800 | 10 | 148 |
0.7 | 1300 | 850 | 12 | 172 |

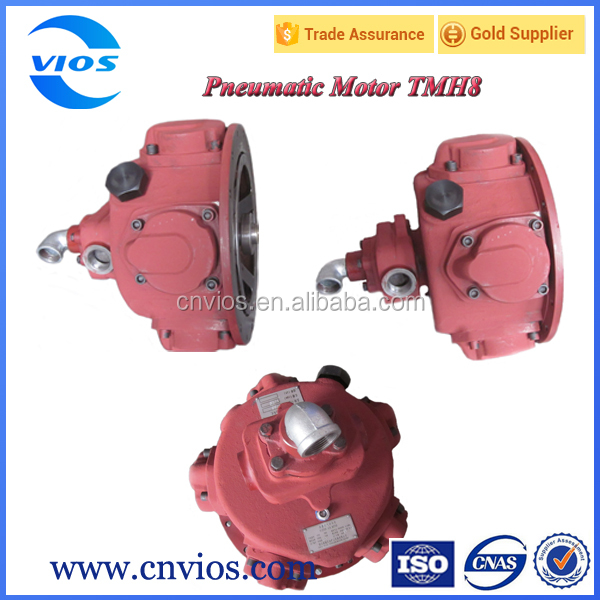

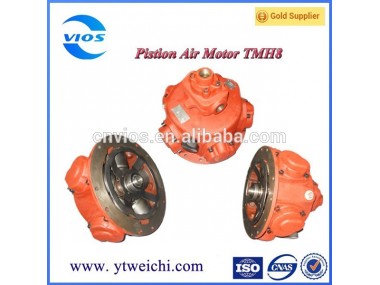

Products showing:
