| 原産地: | 中国(本土) | 適用: | PCB | 銘柄: | daytai | モデル番号: | f pcbコネクタ | 性: | 女性 | pcbコネクタタイプ: | f | pcbコネクタアプリケーション: | rf | pcbコネクタ性別: | 女性 | pcbコネクタ材料: | 銅 | pcbコネクタインピーダンス: | Ω | pcbコネクタメッキ: | ニッケルまたはゴールド | pcbコネクタ耐久性: | 500回 | pcbコネクタ湿度: | 0に95% | pcbコネクタ収納: | -30 ℃〜+ 70 ℃ | pcbコネクタmoq: | 10000ピース |
包装
| 包装: | pcbコネクタパッキング: 100ピース/バッグ、2500ピース/カートン、カートン寸法: l/w/h: 40/25/32センチ |
Female Type PCB Connector
Female PCB Connector Applications:
Widely used at the airport, bank buildings, highways, prison, electricity, Telecommunications, railway stations, terminals, factories, schools, etc
Female PCB Connector Specification:
Features: | |||
Impedance | 50Ω,75Ω | Frequency range | 0-2GHz |
Resistance | Inner conductor≤2.0mΩ | External resistance | ≤0.2mΩ |
Insulation Resistance | ≥5000MΩ | Withstand Voltage | 1500V rms |
Durability | 500 times | Center Pin | Gold-plated pure Copper |
Insulator | PTFE | Frequency response | DC to 8 MHz |
Attenuation | 0.5dB typ | Environmental | -10°C to +70°C |
Storage | -30°C to +70°C | Humidity | 0 to 95% |
Wire Type | Coaxial cable | Category Type | Coaxial connector |
DC Loop Resistance | 52 ohms per 1,000 ft | Material | Zinc Alloy, Brass, ABS |
Withstand Voltage | 1500V rms | Center Contact | ≤ 1.5 ohm |

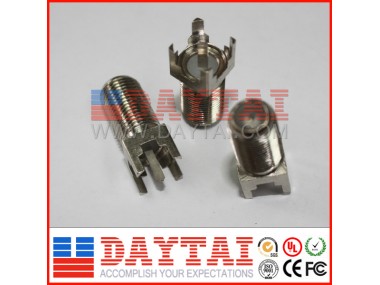

Female PCB Connector Pictures:
Packing details: Standard Package or Color Box Printed LOGO (Optional)
Female PCB Connector --Our service:
1: Your inquiry will be replied within 24 hours.
2: Welcome to OEM&ODM
3: 2-year warranty
