| 原産地: | 中国(本土) | 銘柄: | packbest | モデル番号: | Pbl-052 | 色: | 素朴な茶色 | サイズ: | 標準的なサイズ選択のためのまたはをカスタマイズする | インナーバッグ: | Ldpe+nylon | 外袋: | クラフト紙+pp不織布 | バルブ: | aまたはbまたはソフトバルブ | テスト: | sgsの承認、 圧力テスト証明書 | ロゴ: | 標準またはをカスタマイズする | 充電器: | 空気圧縮機 | 証明書:: | sgsは渡された、 中国の圧力試験報告書 |
包装
| 包装: | 標準的なカートンのパッキングとパレット |
Product Description
recyclable one way kraft paper container dunnage air bag filling gap between the cargoes :
800mm(W)*1000mm (L)
Pack Best Kraft paper container air bag, laminated with PP woven outer bag , and with LDPE extruded Nylon air inner bag, is a innovated inflatable air cushion for transportation purpose, e.g., truck, railway and container shipping.
It embraces the cargo and absorbs the vibration during transportation, and gives the cargo strong support, preventing the cargo from collapsing. It reduces breakage rates of cargo, and saves the costly product returning, and saves the business after-sales cost.
Application:
Dunnage air pillow is widely used in container, truck and the railway to fill the void inside and protect the cargo.
*fill the void
*brace the cargo
*prevent the cargo from collapse
*absorb the vibration
Dunnage air pillow is a new and eco-environment packing material, which could replace the following traditional packing material: pallet, plank, carton paper, Polyron, bubble air film,and the used tyre, etc.
Advantage:
*Fast and easy inflating, saving the time of loading and unloading, thus saving the labor cost
*Bags before inflating and after deflating are flat and occupy just a little space, so it save the space of warehouse, thus saving the cost of business
*Reusable, each bag could be used time and again
*Eco-environment: metal free, nontoxic, anti-static, odorless, pass the test of SGS.
*Strong compressive resistance: each bag could bear the pressure at 4-7 tons
Container air bag
Applications :
- ocean shipping ;
- air transport ;
- land transportation ( truck,railway , etc ) .
Functions :
- Gap filling ;
- support the products , protect the goods from collapse ,etc .
| Item | Physical Properties | Results | Units | Test Method |
| Outer bag : | ||||
| 1 | materials | kraft paper & pp woven | ||
| 2 | kraft paper weight | 70 | g/m² | |
| 3 | Kraft paper with PP woven | 150 | g/m² | |
| 4 | Tear | Machine Direction 135 | lbf | GB 8947 |
| Cross Direction 135 | lbf | |||
| 5 | Puncture Resistance | 5.85 (300mm/min) | lb. | ASTM D 4833-00 |
| Inner Film Bag : | ||||
| 6 | materials | PE & Nylon (9 layers co-extrusion membrane ) | ||
| 7 | thickness | 70-90 | μm | |
| 8 | film seal strength | 18 | N/15mm | QB/T2358-1998 |
| 9 | Tensile | Machine Direction 2900 | Psi | GB/T13022-1991 |
| Cross Direction 2900 | Psi | |||
| 10 | Tear | Machine Direction 572 | grams | GB/T1130-1991 |
| Cross Direction 572 | grams | |||
| 11 | elongation | Machine Direction 250 | % | GB/T13022-1991 |
| Cross Direction 250 | % | |||
| 12 | vapor penetrate rate | ≤10 (38/RH100%) | g/m²/24Hr | GB/T1037-1988 |
| 13 | oxygen penetrate rate | ≤100 (23/O2100%/Dry) | cc/m²/24Hr | GB/T1038-2000 |
| 14 | Puncture Resistance | 8.12 (300mm/min) | lb. | ASTM D 4833-00 |
| valves for choice : A valve , B valve , soft valve | ||||
Standard sizes for choice :
| Model number |
bag size (W*L mm) | Inflatable Width(mm) | Gaps Width(mm) | Apply Height(mm) |
| CP0510 | 500*1000 | 200 | 250 | 900 |
| cp0812 | 800*1200 | 350 | 400 | 1100 |
| CP1018 | 1000*1800 | 450 | 500 | 1700 |
| CP1020 | 1000*2000 | 450 | 500 | 1900 |
| CP1022 | 1000*2200 | 450 | 500 | 2100 |
| custom sizes are available on request. | ||||
How to choose suitable size :
- First , measure the gaps width
- Second , measure thetotal height of the stacking , the bag should not 2/3 less than the total height of the stacking , but no exceed to the stacking height.
Why do you choose us :
- Low price : help you to save cost;
- Hight quality : reduce the risks during transport , good for your business extending;
- Good services : we are always here and be ready to help with you

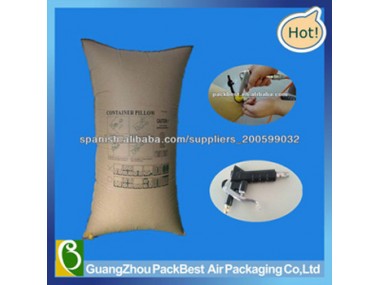

Product details:
